Реле задержки времени
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип реле | Функция | Схема | Время задержки | Контактный рейтинг при напряжении | Напряжение - Питание | Тип вывода | Регулировка времени Метод | Метод инициализации синхронизации | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KRDM433RELAY TIME DELAY 10MIN 10A 125V |
0 |
|
Технический лист |
KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Min ~ 10 Min | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
KRDM6115MRELAY TIME DELAY 15 MIN 10A 125V |
0 |
|
Технический лист |
KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | Fixed, 15 Min | 10A @ 125VAC | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
88865303RELAY TIME DELAY 100HR 8A 250V |
0 |
|
Технический лист |
TU2R3 | Bulk | Obsolete | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 12 ~ 240VAC/DC | Screw Terminal | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
KRDB422RELAY TIME DEL 1000SEC 10A 125V |
0 |
|
Технический лист |
KRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 10 Sec ~ 1000 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
83.82.0.240.0000RELAY TIME DELAY 240HR 16A 250V |
0 |
|
- |
83 | Box | Active | DIN Rail | Mechanical Relay | Star Delta Controller | DPST-NO (2 Form A) | 0.05 Sec ~ 240 Hrs | 16A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
DRTH24A06RRELAY TIME DELAY 6A 280V DIN RL |
0 |
|
Технический лист |
DRT | Box | Active | DIN Rail | Solid State Relay | Interval | SPST-NO (1 Form A) | - | 6A @ 280VAC | 180 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
DRTA24A06RELAY TIME DELAY 6A 280V DIN RL |
0 |
|
Технический лист |
DRT | Bulk | Active | DIN Rail | Solid State Relay | On-Delay | SPST-NO (1 Form A) | - | 6A @ 280VAC | 180 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
DRTA24A06RRELAY TIME DELAY 6A 280V DIN RL |
0 |
|
Технический лист |
DRT | Bulk | Active | DIN Rail | Solid State Relay | On-Delay | SPST-NO (1 Form A) | - | 6A @ 280VAC | 180 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
DRTB24A06RRELAY TIME DELAY 6A 280V DIN RL |
0 |
|
Технический лист |
DRT | Bulk | Active | DIN Rail | Solid State Relay | One Shot | SPST-NO (1 Form A) | - | 6A @ 280VAC | 180 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
DRTC24A06RRELAY TIME DELAY 6A 280V DIN RL |
0 |
|
Технический лист |
DRT | Bulk | Active | DIN Rail | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | - | 6A @ 280VAC | 180 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|

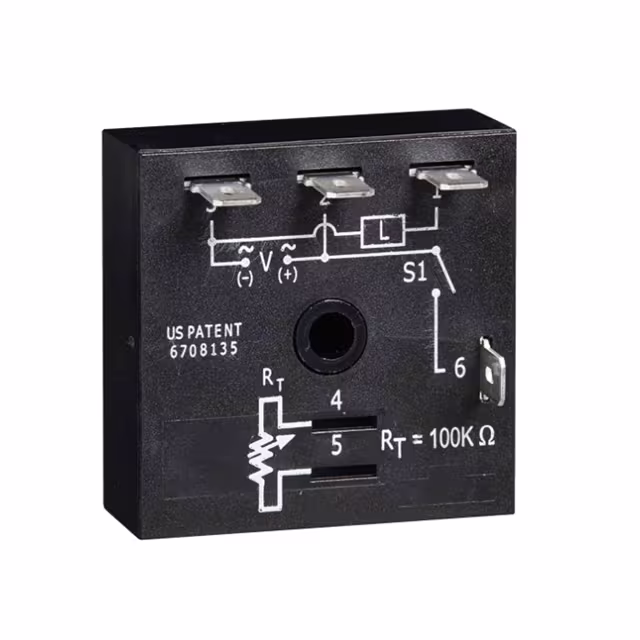

KSDB1110MPRELAY TIME DELAY 10 MIN CHAS MT |
0 |
|
Технический лист |
KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 10 Min | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
|
KSDB4190MRELAY TIME DELAY 90MIN CHAS MT |
0 |
|
Технический лист |
KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 90 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
|
KSDB631RELAY TIME DELAY 100SEC CHAS MT |
0 |
|
Технический лист |
KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
RE22R2MXMURELAY TIME DELAY 100HR 8A 250V |
0 |
|
Технический лист |
Harmony | Box | Active | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 24 ~ 240VAC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
88865185RELAY TIME DELAY 100HR 10A 250V |
0 |
|
Технический лист |
TXR1 | Bulk | Obsolete | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 100 Hrs | 10A @ 250VAC | 24 ~ 240VAC | Screw Terminal | Hand Dial | Input Voltage, Trigger Signal | - | - |
|

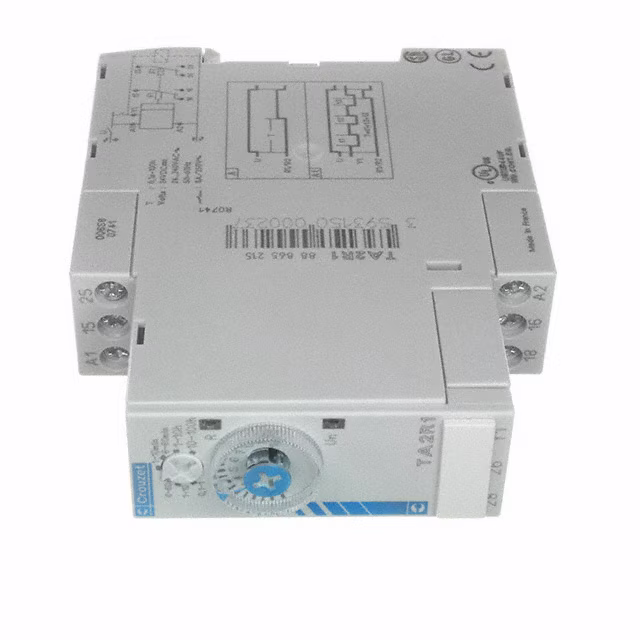

88865215RELAY TIME DELAY 100HR 8A 250V |
0 |
|
Технический лист |
TA2R1 | Bulk | Obsolete | DIN Rail | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 24 ~ 240VAC, 24VDC | Screw Terminal | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
88865105RELAY TIME DELAY 100HR 10A 250V |
0 |
|
Технический лист |
TUR1 | Box | Obsolete | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 100 Hrs | 10A @ 250VAC | 24 ~ 240VAC | Screw Terminal | Hand Dial | Input Voltage, Trigger Signal | - | - |
|

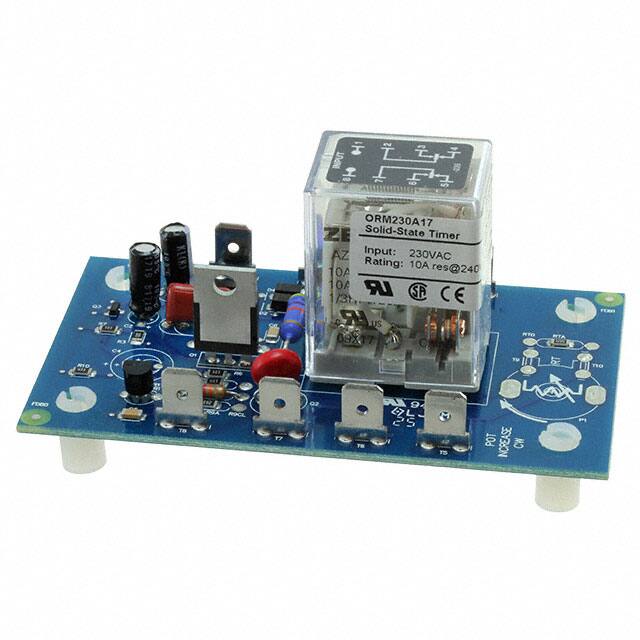

ORM230A17RELAY TIME DELAY 7SEC 10A 120V |
0 |
|
Технический лист |
ORM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | Fixed, 7 Sec | 10A @ 120/240VAC | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

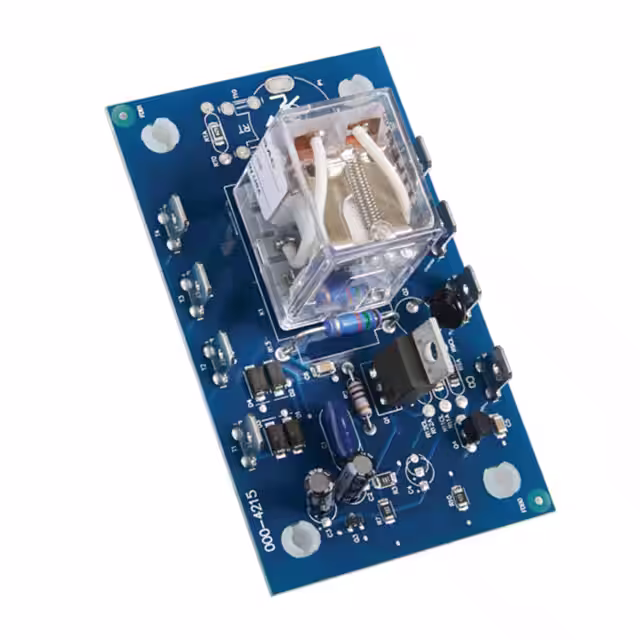

ORM24D13.5RELAY TIME DELAY 3.5SEC 10A 120V |
0 |
|
Технический лист |
ORM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | Fixed, 3.5 Sec | 10A @ 120/240VAC | 24 ~ 28VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
ORM24D22RELAY TIME DELAY 30SEC 10A 120V |
0 |
|
Технический лист |
ORM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.5 Sec ~ 30 Sec | 10A @ 120/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
