Реле задержки времени
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип реле | Функция | Схема | Время задержки | Контактный рейтинг при напряжении | Напряжение - Питание | Тип вывода | Регулировка времени Метод | Метод инициализации синхронизации | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA24A0.5RELAY TIME DELAY 30SEC CHAS MT |
0 |
|
Технический лист |
TA | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 30 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
|
TA24A3RELAY TIME DELAY 3MIN CHAS MT |
0 |
|
Технический лист |
TA | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 3 Min | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

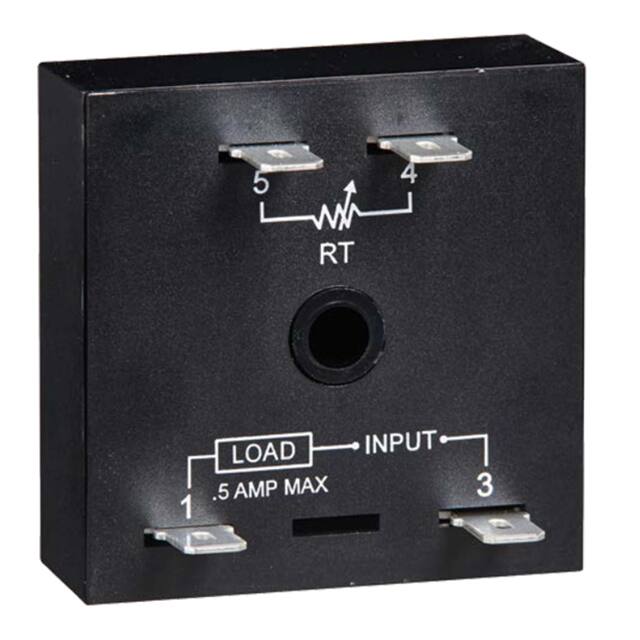

TAC1411RELAY TIME DELAY 1 SEC CHAS MT |
0 |
|
Технический лист |
TAC1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 1 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TAC1412RELAY TIME DELAY 2 SEC CHAS MT |
0 |
|
Технический лист |
TAC1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 2 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
88826100RELAY TIME DELAY 100HR 8A 250V |
0 |
|
Технический лист |
MUR4 | Bulk | Obsolete | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 12VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
MSM130W9RELAY TIME DELAY 30SEC CHAS MT |
0 |
|
Технический лист |
MSM | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 30 Sec | - | 12VDC | Wire Leads | Fixed | Input Voltage | - | - |
|
|
MSM110W6RELAY TIME DELAY 10 SEC CHAS MT |
0 |
|
Технический лист |
MSM | Box | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 10 Sec | - | 12VDC | Wire Leads | Fixed | Input Voltage | - | - |
|
H3DE-S1 AC/DC24-230RELAY TIME DELAY 120HR 5A 250V |
0 |
|
Технический лист |
H3DE-S | Bulk | Obsolete | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 120 Hrs | 5A @ 250VAC | 24 ~ 230VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
422AR-100-S5T-XRELAY TIME DELAY 10HR 10A 250V |
0 |
|
Технический лист |
422AR | Box | Obsolete | DIN Rail | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 1 Sec ~ 10 Hrs | 10A @ 250VAC | 20 ~ 240VAC, 12 ~ 240VDC | Screw Terminal | Hand Dial | Input Voltage | - | - |
|
TS22120RELAY TIME DELAY 20 SEC CHAS MT |
0 |
|
- |
TS2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 20 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

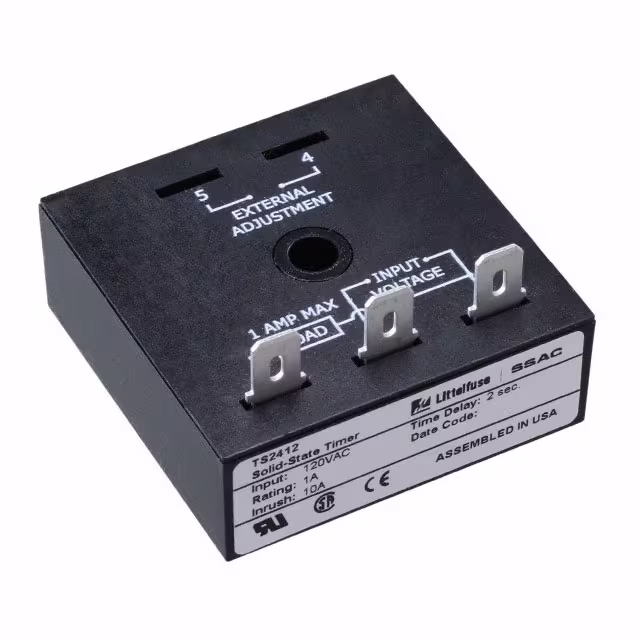

TS2412RELAY TIME DELAY 2 SEC CHAS MT |
0 |
|
- |
TS2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 2 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TS121150RELAY TIME DELAY 150 SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 150 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TS1221RELAY TIME DELAY 3SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.05 Sec ~ 3 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
TS1224RELAY TIME DELAY 600SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 5 Sec ~ 600 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
TS13115RELAY TIME DELAY 15 SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 15 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TS1321RELAY TIME DELAY 3SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.05 Sec ~ 3 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
TS1410.25RELAY TIME DELAY 0.25SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 0.25 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TS14110RELAY TIME DELAY 10 SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TS141180RELAY TIME DELAY 180 SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 180 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TS1412RELAY TIME DELAY 2 SEC CHAS MT |
0 |
|
Технический лист |
TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 2 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
