Реле задержки времени
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Тип реле | Функция | Схема | Время задержки | Контактный рейтинг при напряжении | Напряжение - Питание | Тип вывода | Регулировка времени Метод | Метод инициализации синхронизации | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
05930100RELAY TIME DELAY 4SEC |
0 |
|
Технический лист |
- | Box | Active | Panel Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | Fixed, 4 Sec | 5A @ 32VDC | 24VAC/DC | Plug In | Fixed | - | - | - |
|
15953.2RELAY TIME DELAY |
0 |
|
Технический лист |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
110098520067VZE-E05 24-110VUC 1,5S |
0 |
|
- |
- | Bulk | Active | Chassis Mount | Mechanical Relay | Signal ON-OFF-Delay | SPST-NO (1 Form A) | Fixed, 1.5 Sec | 0.8A @ 600VAC/DC | 24 ~ 110VAC/DC | Wire Leads | Fixed | Input Voltage | - | - |
|
|
55ES-P8-110-CURELAY TIME DELAY 60MIN 5A 230V |
0 |
|
Технический лист |
55ES | Bulk | Active | Socketable | Mechanical Relay | Interval, On-Delay | SPDT (1 Form C) | 0 Sec ~ 60 Min | 5A @ 230VAC/24VDC | 24 ~ 110VAC, 24VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
55ES-P8-230-CURELAY TIME DELAY 60MIN 5A 230V |
0 |
|
Технический лист |
55ES | Bulk | Active | Socketable | Mechanical Relay | Interval, On-Delay | SPDT (1 Form C) | 0 Sec ~ 60 Min | 5A @ 230VAC/24VDC | 230VAC, 24VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
E1ZM10 12-240V PINK RIBBON EDITIONRELAY TIME DELAY MULTI FUNCTION |
2 |
|
Технический лист |
ENYA | Retail Package | Active | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.05 Sec ~ 100 Hrs | 8A @ 250VAC | 12 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
SAS10S220ADRELAY TIME DELAY SS 10S 110V |
0 |
|
- |
SAS | Box | Active | DIN Rail | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 10 Sec | 1A @ 110VAC | 220VAC/DC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
SASP100S110ADRELAY TIME DELAY 100SEC DIN RAIL |
0 |
|
- |
SAS | Box | Active | DIN Rail | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.1 Sec ~ 100 Sec | 1A @ 110VAC | 110VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
SASP100S24ADRELAY TIME DELAY SS 100S ADJ 24V |
0 |
|
- |
SAS | Box | Active | DIN Rail | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.1 Sec ~ 100 Sec | 1A @ 110VAC | 24VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
SASP30S24ADRELAY TIME DELAY SS 30S ADJ 24V |
0 |
|
- |
SAS | Box | Active | DIN Rail | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.1 Sec ~ 30 Sec | 1A @ 110VAC | 24VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
ATS8W-21RELAY TIME DELAY 10HR 3A 250V |
1 |
|
Технический лист |
ATS8W | Box | Active | Panel Mount | - | Repeat Cycle, Twin Timer | SPDT (1 Form C), DPDT (2 Form C) | 0.1 Sec ~ 10 Hrs | 3A @ 250VAC | 24VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | - | - | - |
|

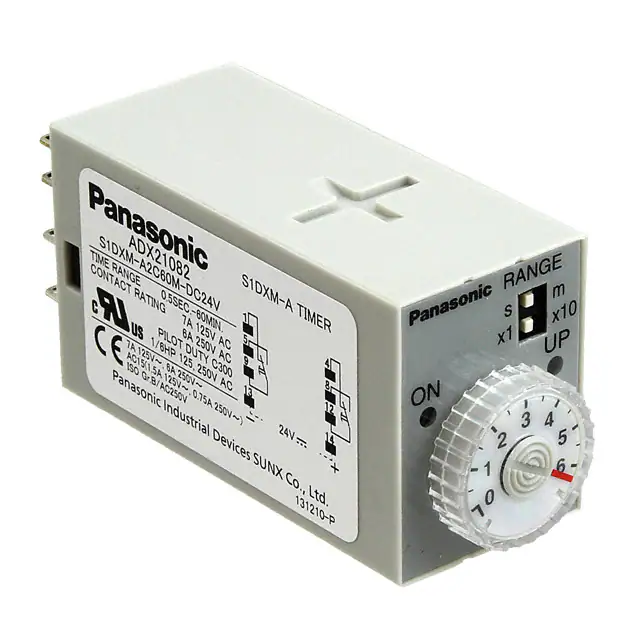

S1DXM-A2C60M-DC24VRELAY TIME DELAY 60MIN 7A 250V |
0 |
|
Технический лист |
S1DXM | Box | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.5 Sec ~ 60 Min | 7A @ 250VAC | 24VDC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
PMH-30M-AC240VRELAY TIME DELAY 30MIN 7A 250V |
0 |
|
Технический лист |
PMH | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.15 Sec ~ 30 Min | 7A @ 250VAC | 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
TS2223RELAY TIME DELAY 180SEC CHAS MT |
2 |
|
- |
TS2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 2 Sec ~ 180 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
PMH-30H-AC240VRELAY TIME DELAY 30HR 7A 250V |
0 |
|
Технический лист |
PMH | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.15 Min ~ 30 Hrs | 7A @ 250VAC | 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
PM4HS-H-AC240VRELAY TIME DELAY 500HR 5A 250V |
0 |
|
Технический лист |
PM4H-S | Box | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 500 Hrs | 5A @ 250VAC | 100 ~ 240VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
RE17RAMUSRELAY TIME DELAY 100HR 8A 250V |
0 |
|
Технический лист |
Harmony | Box | Obsolete | DIN Rail | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 24 ~ 240VAC | Spring Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
GE1A-B30HAD24RELAY TIME DELAY 30HR 5A 240V |
0 |
|
- |
GE1A | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.3 Sec ~ 30 Hrs | 5A @ 240VAC/24VDC | 24VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
88865145RELAY TIME DELAY 100HR 10A 250V |
0 |
|
Технический лист |
THR1 | Bulk | Obsolete | DIN Rail | Mechanical Relay | Interval | SPDT (1 Form C) | 0.1 Sec ~ 100 Hrs | 10A @ 250VAC | 24 ~ 240VAC | Screw Terminal | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
|
S1DX-A4C60S-DC24VRELAY TIME DELAY 60SEC 5A 250V |
2 |
|
Технический лист |
S1DX | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 3 Sec ~ 60 Sec | 5A @ 250VAC | 24VDC | Plug In | Hand Dial | Input Voltage | - | - |
