SCR - Модули
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Структура | Количество SCR, диодов | Напряжение - Выкл. | Ток - Вкл. состояние (It (AV)) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Напряжение - Триггер затвора (Vgt) (макс.) | Ток - Триггер затвора (Igt) (макс.) | Ток - Неповтор. всплеск 50, 60 Гц (Itsm) | Ток - удержание (Ih) (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TD104N14KOFAHPSA1SCR MODULE 1400V 160A MODULE |
7,456 |
|
- |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 104 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | -40°C ~ 140°C | - | - | Chassis Mount |
|
|
TD104N14KOFAHPSA2THYR / DIODE MODULE DK |
3,376 |
|
- |
TD | Module | Tray | Active | Common Anode - All SCRs | 1 SCR, 1 Diode | 1.4 kV | 102 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | 140°C (TJ) | - | - | Chassis Mount |
|

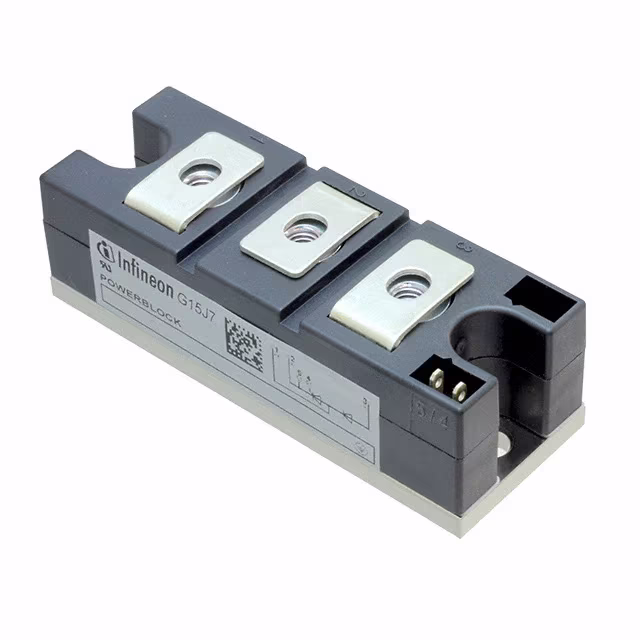

TD180N16KOFHPSA1THYRISTOR MODULE 1600V 180A |
8,515 |
|
Технический лист |
- | Module | Tray | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 180 A | 285 A | 2 V | 150 mA | - | 200 mA | 130°C (TJ) | - | - | Chassis Mount |
|
|
M254015FMODULE POWER 40A 1200V SCR CC |
6,449 |
|
Технический лист |
- | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2.5 V | 50 mA | 400A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
xxx-xxIO1.jpg)
|
MCC225-14IO1MOD THYRISTOR DUAL 1400V Y1-CU |
4,697 |
|
Технический лист |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 221 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
MCD310-18IO1MOD THYRISTOR/DIODE 1800V Y2-DCB |
2,139 |
|
Технический лист |
- | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
F1827HD600MODULE SCR/DIODE 25A 240VAC |
2,606 |
|
Технический лист |
F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TDB6HK180N16RRBOSA1SCR MODULE VDRM 1600V 70A |
4,613 |
|
Технический лист |
EconoPACK™ 2 | Module | Bulk | Discontinued | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | - | 2 V | 100 mA | 1600A @ 50Hz | 220 mA | 175°C (TJ) | - | - | Chassis Mount |
|
|
T7S0186504DNSCR PHASE CTRL MOD 1800V 650A |
5,249 |
|
Технический лист |
- | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 1.8 kV | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1842CAH400MODULE SCR/DIODE 40A 120VAC |
2,404 |
|
Технический лист |
F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 400 V | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T614FSEMODULE POWER |
2,274 |
|
Технический лист |
- | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
T9S0162003DHSCR PHASE CTRL MOD 1600V 2000A |
2,158 |
|
- |
- | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 1.6 kV | 2000 A | 3142 A | 3 V | 200 mA | 25456A, 27000A | - | - | - | - | Chassis Mount |
|
TT180N16KOFHPSA1SCR MODULE 1.6KV 285A MODULE |
9,970 |
|
Технический лист |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 180 A | 285 A | 2 V | 150 mA | - | 200 mA | 130°C (TJ) | - | - | Chassis Mount |
|
|
TT122N22KOFHPSA1SCR MODULE 2.2KV 160A MODULE |
9,374 |
|
Технический лист |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 104 A | 160 A | 1.4 V | 200 mA | 1050A @ 50Hz | 200 mA | -40°C ~ 140°C | - | - | Chassis Mount |
|
|
T720224504DNSCR PHASE CTRL MOD 2200V 450A |
6,961 |
|
Технический лист |
- | TO-200AC, B-PUK | Bulk | Discontinued | Single | 1 SCR | 2.2 kV | 450 A | 700 A | 3 V | 150 mA | 7650A, 8400A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
TT92N16KOFHPSA1SCR MODULE 1.6KV 160A MODULE |
4,683 |
|
Технический лист |
- | Module | Bulk | Discontinued | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 104 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
|
MCC225-16IO1MOD THYRISTOR DUAL 1600V Y1-CU |
8,535 |
|
Технический лист |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 221 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
F1842CAH600MODULE SCR/DIODE 40A 240VAC |
2,627 |
|
Технический лист |
F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1842HD600MODULE SCR/DIODE 40A 240VAC |
9,528 |
|
Технический лист |
F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCMA265PD1600KBSCR MODULE 1.6KV 268A Y1-CU |
5,759 |
|
Технический лист |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 268 A | 421 A | 2 V | 150 mA | 8500A, 9180A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
