SCR - Модули
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Структура | Количество SCR, диодов | Напряжение - Выкл. | Ток - Вкл. состояние (It (AV)) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Напряжение - Триггер затвора (Vgt) (макс.) | Ток - Триггер затвора (Igt) (макс.) | Ток - Неповтор. всплеск 50, 60 Гц (Itsm) | Ток - удержание (Ih) (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT240N18SOFHPSA1LA-T-BOND MODULE |
3 |
|
Технический лист |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
|
MT160C16T2-BPMOD SCR DUAL 160A 1600V T2 |
80 |
|
Технический лист |
- | T2 | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
B513F-2TMOD DIODE SCR 25A 280VAC .250"QC |
10 |
|
Технический лист |
B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MT110C16T1-BPMOD SCR DUAL 110A 1600V T1 |
93 |
|
Технический лист |
- | T1 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
MT200C16T2-BPMOD SCR DUAL 200A 1600V T2 |
80 |
|
Технический лист |
- | T2 | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 200 A | - | 3 V | 200 mA | 5500A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
B512FSE-2T-YEBMOD DIODE SCR 25A 240VAC .250"QC |
6 |
|
Технический лист |
B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT142/14PBFMODULE THYRISTOR 145A INT-A-PAK |
7 |
|
Технический лист |
- | INT-A-Pak | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 140 A | 310 A | 2.5 V | 150 mA | 4500A, 4712A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MT130CB16T2-BPMOD SCR/DIODE 130A 1600V T2 |
77 |
|
Технический лист |
- | T2 | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TD390N18SOFHPSA1SCR MODULE 1.8KV 520A MODULE |
3 |
|
Технический лист |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 380 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 125°C (TC) | - | - | Chassis Mount |
|
T390N14TOFXPSA1SCR MODULE 1600V 600A DO200AA |
22 |
|
Технический лист |
- | TO-200AA | Tray | Active | Single | 1 SCR | 1.6 kV | 381 A | 600 A | 2 V | 150 mA | 4900A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T470N16TOFXPSA1SCR MODULE 1600V 800A DO200AA |
18 |
|
Технический лист |
- | TO-200AA | Tray | Active | Single | 1 SCR | 1.6 kV | 470 A | 800 A | 2 V | 200 mA | 7100A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TD390N16SOFHPSA1LA-T-BOND MODULE |
18 |
|
Технический лист |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 380 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 125°C (TC) | - | - | Chassis Mount |
|
TT390N16SOFHPSA1LA-T-BOND MODULE |
4 |
|
Технический лист |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 380 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 125°C (TC) | - | - | Chassis Mount |
|
|
T612FSMODULE POWER |
7 |
|
Технический лист |
- | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T514FMODULE POWER |
10 |
|
Технический лист |
- | Module | Bulk | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
T420N16TOFXPSA1SCR MODULE 1800V 750A DO200AA |
6 |
|
Технический лист |
- | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 424 A | 750 A | 2 V | 200 mA | 7200A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
T640N16TOFXPSA1SCR MODULE 1800V 1250A DO200AA |
12 |
|
Технический лист |
- | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 644 A | 1250 A | 2.2 V | 250 mA | 9400A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|

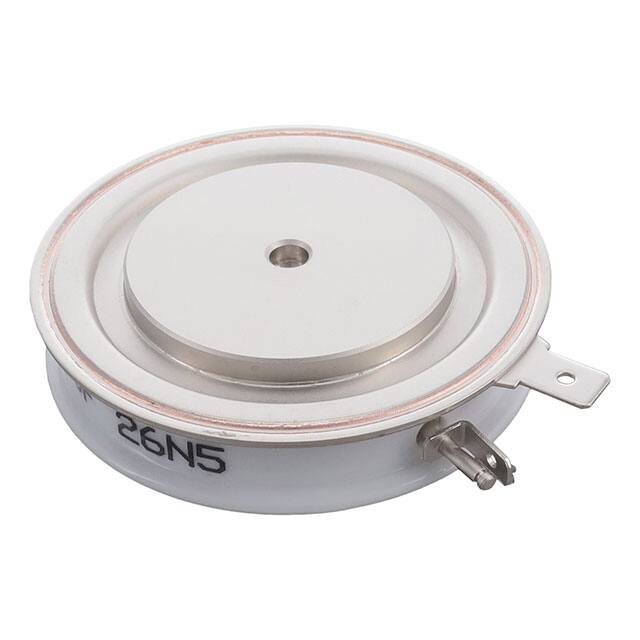

T640N14TOFXPSA1SCR MODULE 1800V 1250A DO200AA |
6 |
|
Технический лист |
- | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 644 A | 1250 A | 2.2 V | 250 mA | 9400A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
T940N16TOFXPSA1SCR MODULE 1800V 1759A DO200AB |
18 |
|
Технический лист |
- | DO-200AB, B-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 959 A | 1759 A | 2.2 V | 250 mA | 17500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
T720N16TOFXPSA1SCR MODULE 1800V 1500A DO200AB |
6 |
|
Технический лист |
- | DO-200AB, B-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 720 A | 1500 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
