Прокладки, листы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Использование | Тип | Форма | Контур | Толщина | Материал | Клей | Подложка, носитель | Цвет | Тепловое сопротивление | Теплопроводность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0001/06-PC99-0.06THERM PAD 41.91X28.96MM YLW |
0 |
|
Технический лист |
PC99 | Box | Obsolete | TO-3 | Die-Cut Pad, Sheet | Rhombus | 41.91mm x 28.96mm | 0.0024" (0.060mm) | Phase Change Compound | Tacky - Both Sides | - | Yellow | - | 1.5W/m-K |
|
DC0022/01-PC99-0.06THERM PAD 57.15X44.45MM YLW |
0 |
|
Технический лист |
PC99 | Box | Obsolete | Power Module | Die-Cut Pad, Sheet | Rectangular | 57.15mm x 44.45mm | 0.0024" (0.060mm) | Phase Change Compound | Tacky - Both Sides | - | Yellow | - | 1.5W/m-K |
|
DC0025/01-PC99-0.06THERM PAD 36.83X21.29MM YLW |
0 |
|
Технический лист |
PC99 | Box | Obsolete | SIP | Die-Cut Pad, Sheet | Rectangular | 36.83mm x 21.29mm | 0.0024" (0.060mm) | Phase Change Compound | Tacky - Both Sides | - | Yellow | - | 1.5W/m-K |
|
DC0001/14-TG-AH482-2.0-0THERM PAD 45.21X31.75MM RED |
0 |
|
Технический лист |
H48-2 | Box | Obsolete | TO-3 | Die-Cut Pad, Sheet | Rhombus | 45.21mm x 31.75mm | 0.0790" (2.000mm) | Silicone Elastomer | - | - | Red | - | 2.2W/m-K |
|
DC0022/02-PC99-0.06THERM PAD 38.1X22.86MM YLW |
0 |
|
Технический лист |
PC99 | Box | Obsolete | Power Module | Die-Cut Pad, Sheet | Rectangular | 38.10mm x 22.86mm | 0.0024" (0.060mm) | Phase Change Compound | Tacky - Both Sides | - | Yellow | - | 1.5W/m-K |
|
DC0019/03-PC99-0.06THERM PAD 31.75MMX31.75MM YELLOW |
0 |
|
Технический лист |
PC99 | Box | Obsolete | Rectifier | Die-Cut Rectifier Pad, Sheet | Square | 31.75mm x 31.75mm | 0.0024" (0.060mm) | Phase Change Compound | Tacky - Both Sides | - | Yellow | - | 1.5W/m-K |
|
DC0022/03-PC99-0.06THERM PAD 63.5X50.8MM YLW |
0 |
|
Технический лист |
PC99 | Box | Obsolete | Power Module | Die-Cut Pad, Sheet | Rectangular | 63.50mm x 50.80mm | 0.0024" (0.060mm) | Phase Change Compound | Tacky - Both Sides | - | Yellow | - | 1.5W/m-K |
|

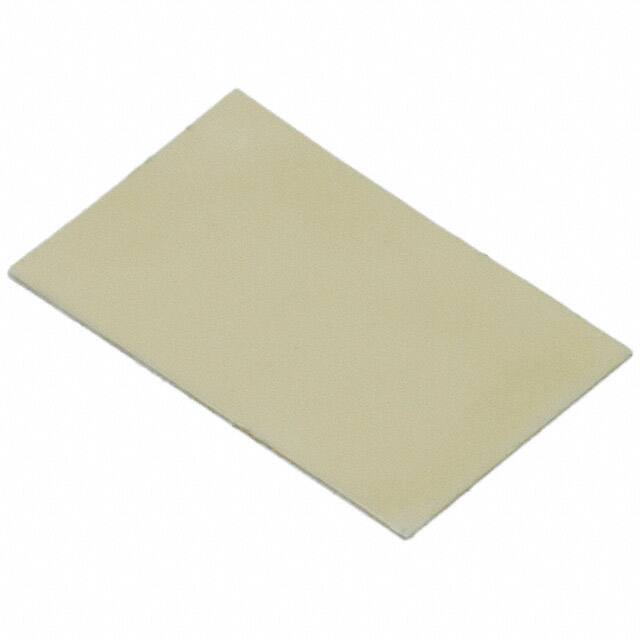

DC0011/08-PC99-0.06THERM PAD 19.05MMX12.7MM YLW |
0 |
|
Технический лист |
PC99 | Box | Obsolete | TO-220 | Die-Cut Pad, Sheet | Rectangular | 19.05mm x 12.70mm | 0.0024" (0.060mm) | Phase Change Compound | Tacky - Both Sides | - | Yellow | - | 1.5W/m-K |
|
TG-A486C-150-150-3.0-0THERM PAD 150MMX150MM GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.118" (3.00mm) | Silicone Elastomer | - | - | Gray | - | 3.2W/m-K |
|

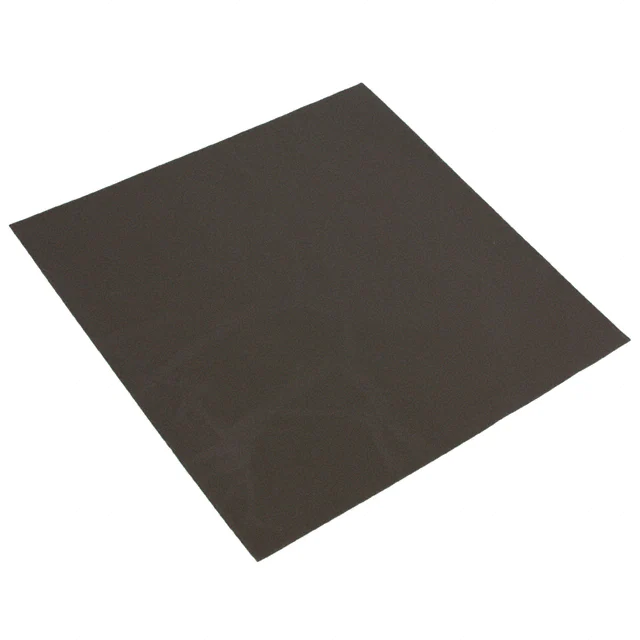

TG-A486C-150-150-0.5-1ATHERM PAD 150MMX150MM W/ADH GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.0197" (0.500mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|

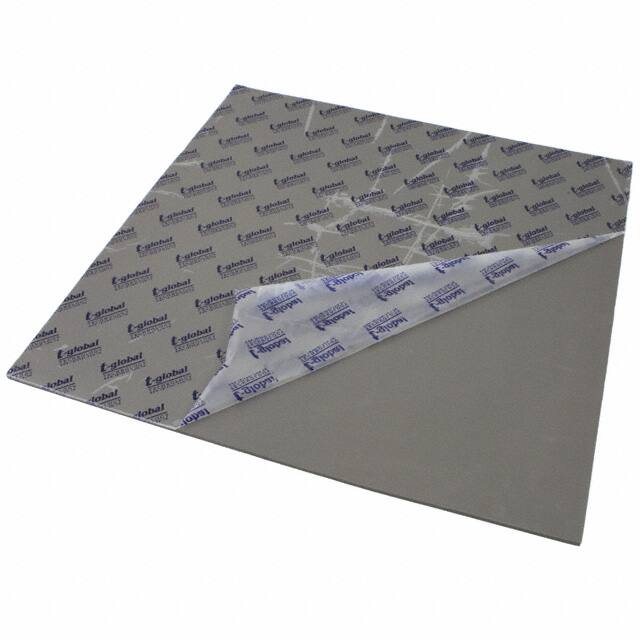

TG-A486C-320-320-3.0-1ATHERM PAD 320X320MM W/ADH GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.118" (3.00mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|

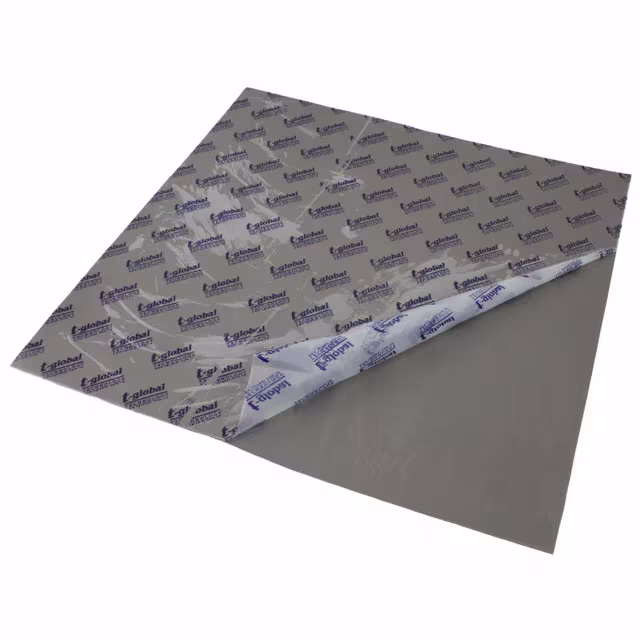

TG-A486C-320-320-0.5-0THERM PAD 320X320MM GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.0197" (0.500mm) | Silicone Elastomer | - | - | Gray | - | 3.2W/m-K |
|

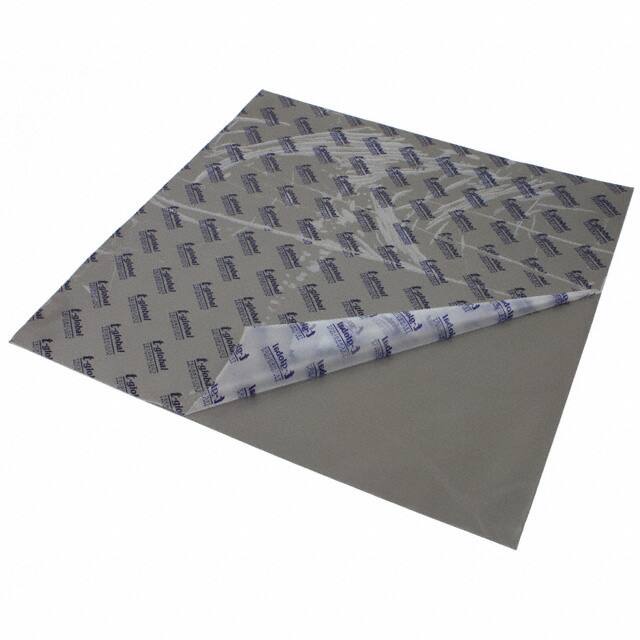

TG-A486C-320-320-0.5-1ATHERM PAD 320X320MM W/ADH GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.0197" (0.500mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|
TG-A486C-640-320-0.5-0THERM PAD 640X320MM GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Rectangular | 640.00mm x 320.00mm | 0.0197" (0.500mm) | Silicone Elastomer | - | - | Gray | - | 3.2W/m-K |
|

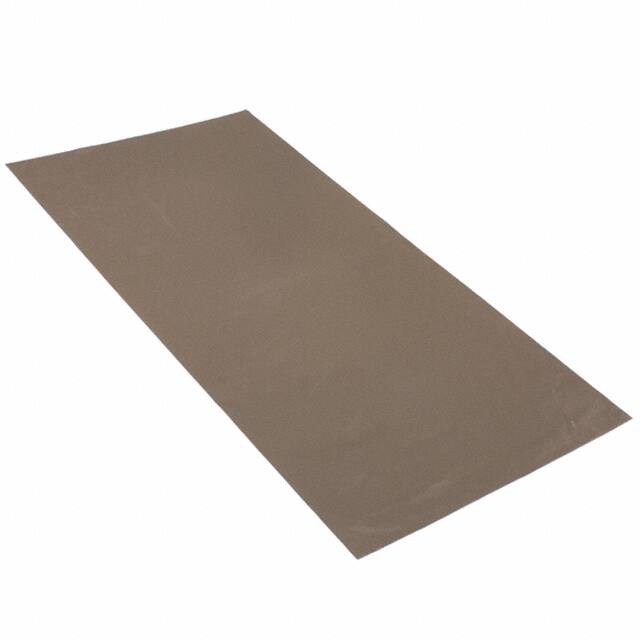

TG-A486C-640-320-0.5-1ATHERM PAD 640MMX320MM W/ADH GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Rectangular | 640.00mm x 320.00mm | 0.0197" (0.500mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|
TG-A486C-150-150-1.0-1ATHERM PAD 150MMX150MM W/ADH GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.0394" (1.000mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|
TG-A486C-150-150-5.0-1ATHERM PAD 150MMX150MM W/ADH GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.197" (5.00mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|

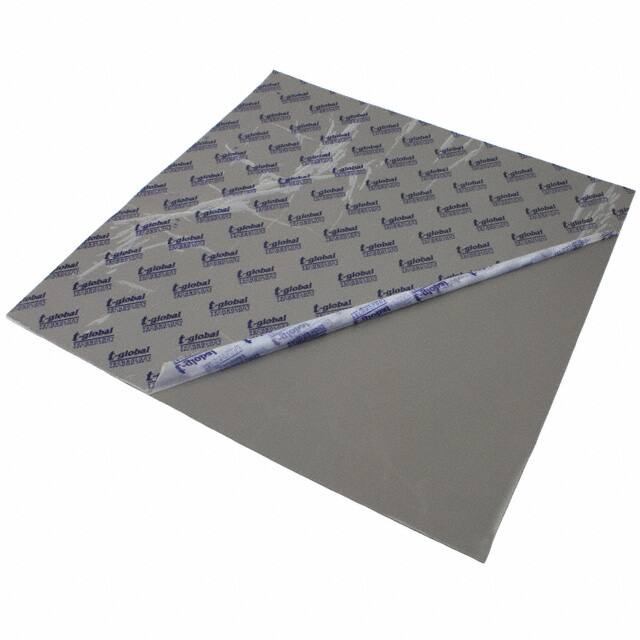

TG-A486C-320-320-1.0-0THERM PAD 320X320MM GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.0394" (1.000mm) | Silicone Elastomer | - | - | Gray | - | 3.2W/m-K |
|

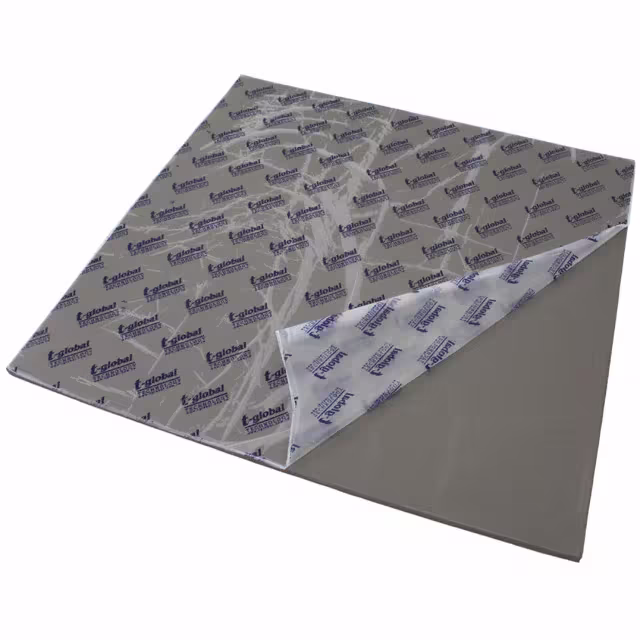

TG-A486C-320-320-5.0-0THERM PAD 320X320MM GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.197" (5.00mm) | Silicone Elastomer | - | - | Gray | - | 3.2W/m-K |
|
TG-A486C-320-320-1.0-1ATHERM PAD 320X320MM W/ADH GRAY |
0 |
|
Технический лист |
H48-6C | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.0394" (1.000mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
