Прокладки, листы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Использование | Тип | Форма | Контур | Толщина | Материал | Клей | Подложка, носитель | Цвет | Тепловое сопротивление | Теплопроводность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
QB1020B40ESCTHERMAL CONDUCTOR Q-BRIDGE |
0 |
|
Технический лист |
Q-Bridge | Tray | Active | Heat Transfer | Thermal Bridge Jumper | Rectangular | 2.54mm x 5.08mm | 0.0402" (1.020mm) | Beryllium Oxide | - | - | - | 2°C/W, 3°C/W | 320W/m-K, 508W/m-K |
|

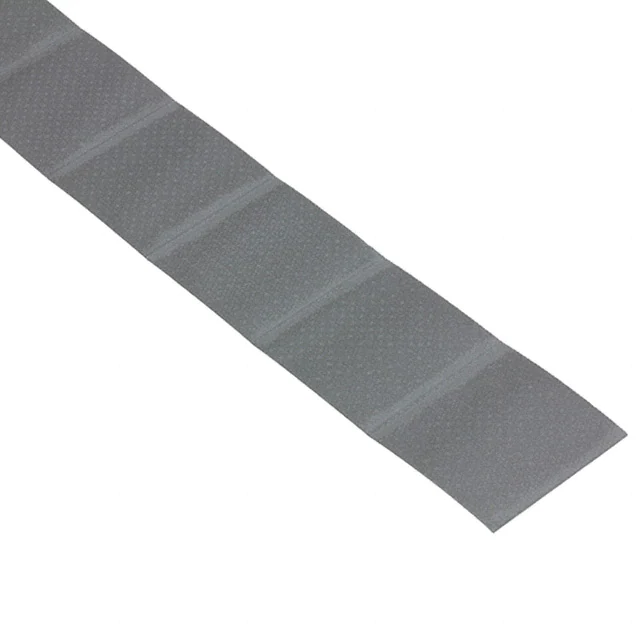

69-13-42348-T412THERM TAPE 28MMX28MM W/ADH 1=8 |
0 |
|
Технический лист |
THERMATTACH® T412 | Strip | Active | - | Conductive Tape, Sheet | Square | 28.00mm x 28.00mm | 0.0091" (0.230mm) | Non-Silicone | Adhesive - Both Sides | Aluminum Foil | Gray | - | 1.4W/m-K |
|
TG-A373F-320-320-0.25-1ATHERM PAD 320X320MM W/ADH YLW |
0 |
|
Технический лист |
L37-3F | Box | Obsolete | - | Conductive Pad, Sheet | Square | 320.00mm x 320.00mm | 0.0100" (0.254mm) | Silicone Elastomer | Adhesive - One Side | - | Yellow | - | 1.4W/m-K |
|
TG-A20KX-190-140-2.0THERM PAD 190MMX140MM GRAY |
0 |
|
Технический лист |
TG-A20KX | Bulk | Active | Multi | Pad, Sheet | Rectangular | 190.00mm x 140.00mm | 0.0790" (2.000mm) | Silicone | Tacky - Both Sides | - | Gray | - | 2.0W/m-K |
|
TG-AL373-150-150-2.0-1ATHERM PAD 150MMX150MM W/ADH YLW |
0 |
|
Технический лист |
L37-3 | Box | Active | - | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.0790" (2.000mm) | Silicone Elastomer | Adhesive - One Side | Fiberglass | Yellow | - | 1.7W/m-K |
|
|
5590H-05-0.125-5THERM PAD 5M X 3.18MM GRY/WHT |
0 |
|
Технический лист |
5590H | Bulk | Active | - | Interface Pad, Roll | Rectangular | 5.00m x 3.18mm | - | Acrylic Elastomer | Tacky - Both Sides | - | Gray, White | - | - |
|
|
2194435BERGQUIST GAP PAD TGP 1000VOUS |
0 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
QB1020B40WYSTHERMAL CONDUCTOR Q-BRIDGE |
0 |
|
Технический лист |
Q-Bridge | Strip | Active | Heat Transfer | Thermal Bridge Jumper | Rectangular | 2.54mm x 5.08mm | 0.0402" (1.020mm) | Beryllium Oxide | - | - | - | 2°C/W, 3°C/W | 320W/m-K, 508W/m-K |
|
AF200-301205THERM PAD 30MMX12MM WHT |
0 |
|
Технический лист |
AF200 | Sheet | Active | - | Pad, Sheet | Rectangular | 30.00mm x 12.00mm | 0.0197" (0.500mm) | Non-Silicone | Tacky - Both Sides | - | White | - | 2.0W/m-K |
|
TG-A38KX-190-140-1.0THERM PAD 190MMX140MM BLUE |
0 |
|
Технический лист |
TG-A38KX | Bulk | Active | Multi | Pad, Sheet | Rectangular | 190.00mm x 140.00mm | 0.0394" (1.000mm) | Silicone | Tacky - Both Sides | - | Blue | - | 3.8W/m-K |
|
SF500-707005THERM PAD 70X70MM BLUE |
0 |
|
Технический лист |
SF500 | Sheet | Active | - | Pad, Sheet | Square | 70.00mm x 70.00mm | 0.0197" (0.500mm) | Silicone Elastomer | Tacky - Both Sides | - | Blue | - | 3.0W/m-K |
|
|
QB3725B60ESTTHERMAL CONDUCTOR Q-BRIDGE |
0 |
|
Технический лист |
Q-Bridge | Tape & Reel (TR) | Active | Heat Transfer | Thermal Bridge Jumper | Rectangular | 9.40mm x 6.22mm | 0.0598" (1.520mm) | Beryllium Oxide | - | - | - | 4°C/W, 6°C/W | 160W/m-K, 254W/m-K |
|
|
VFSCBN-150150030-00THERMAL FOIL |
0 |
|
Технический лист |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.1181" (3.000mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 3.0W/m-K |
|
|
TG-A373F-300-300-0.45-1ATHERM PAD 300MMX300MM W/ADH YLW |
0 |
|
Технический лист |
L37-3F | Box | Active | - | Conductive Pad, Sheet | Square | 300.00mm x 300.00mm | 0.0177" (0.450mm) | Silicone Elastomer | Adhesive - One Side | - | Yellow | - | 1.4W/m-K |
|
A15326-01THERM PAD 228.6MMX228.6MM GREEN |
0 |
|
Технический лист |
Tflex™ 300 | Bulk | Active | - | Gap Filler Pad, Sheet | Square | 228.60mm x 228.60mm | 0.0600" (1.524mm) | Silicone Elastomer | - | - | Green | - | 1.2W/m-K |
|
|
VFSCBR-150150030-00THERMAL FOIL |
0 |
|
- |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 150.00mm x 150.00mm | 0.1181" (3.000mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 3.0W/m-K |
|
|
VFSFAN-100100040-00THERMAL FOIL |
0 |
|
- |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 100.00mm x 100.00mm | 0.157" (4.00mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 6.0W/m-K |
|
|
TG-APC93-100-100-2.0-0THERM PAD 100MMX100MM GRAY |
0 |
|
Технический лист |
PC93 | Box | Active | - | Conductive Pad, Sheet | Square | 100.00mm x 100.00mm | 0.0790" (2.000mm) | Non-Silicone | - | - | Gray | - | 2.0W/m-K |
|
TG-A38KF-190-140-0.8THERM PAD 190MMX140MM BLUE |
0 |
|
Технический лист |
TG-A38KF | Bulk | Active | Multi | Pad, Sheet | Rectangular | 190.00mm x 140.00mm | 0.0310" (0.787mm) | Silicone | Tacky - One Side | Fiberglass | Blue | - | 3.3W/m-K |
|
|
VFSFAR-100100040-00THERMAL FOIL |
0 |
|
Технический лист |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 100.00mm x 100.00mm | 0.157" (4.00mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 6.0W/m-K |
