Прокладки, листы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Использование | Тип | Форма | Контур | Толщина | Материал | Клей | Подложка, носитель | Цвет | Тепловое сопротивление | Теплопроводность |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TMJ2512GK0053THERMAL JUMPER, 2512, 53 MW/C |
0 |
|
Технический лист |
TMJ | Tape & Reel (TR) | Active | - | Thermal Bridge Jumper | - | 6.40mm x 3.20mm | 0.0250" (0.635mm) | - | - | - | - | 19.00°C/W | 53W/m-K |
|
175-6-510PTHERM PAD 20.32MMX6.6MM GRAY |
0 |
|
Технический лист |
175 | Bulk | Active | DO-4, DO-5 | Pad, Sheet | Round | 20.32mm x 6.60mm | 0.0060" (0.152mm) | - | - | Polyimide | Gray | 0.40°C/W | 0.5W/m-K |
|
DC0001/05-TG-A373F-0.25-2ATHERM PAD 41.91X28.96MM W/ADH |
0 |
|
Технический лист |
L37-3F | Bulk | Active | TO-3 | Die-Cut Pad, Sheet | Rhombus | 41.91mm x 28.96mm | 0.0100" (0.254mm) | Silicone Elastomer | Adhesive - Both Sides | - | Yellow | - | 1.4W/m-K |
|
DC0001/06-TG-A373F-0.25-2ATHERM PAD 41.91X28.96MM W/ADH |
0 |
|
Технический лист |
L37-3F | Bulk | Active | TO-3 | Die-Cut Pad, Sheet | Rhombus | 41.91mm x 28.96mm | 0.0100" (0.254mm) | Silicone Elastomer | Adhesive - Both Sides | - | Yellow | - | 1.4W/m-K |
|

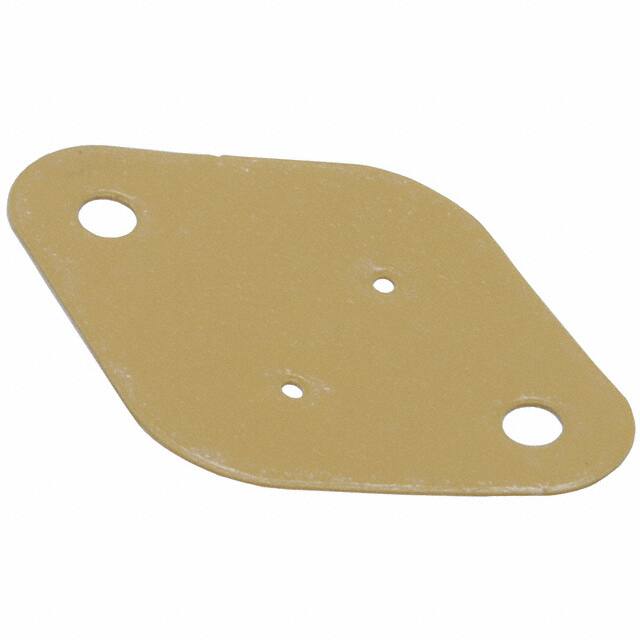

DC0001/08-TG-A373F-0.25-2ATHERM PAD 41.91X28.96MM W/ADH |
0 |
|
Технический лист |
L37-3F | Bulk | Active | TO-3 | Die-Cut Pad, Sheet | Rhombus | 41.91mm x 28.96mm | 0.0100" (0.254mm) | Silicone Elastomer | Adhesive - Both Sides | - | Yellow | - | 1.4W/m-K |
|
|
VFSHAN-030030015-00THERMAL FOIL |
0 |
|
Технический лист |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 30.00mm x 30.00mm | 0.0591" (1.500mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 8.0W/m-K |
|
|
QB0302A20ESTTHERMAL CONDUCTOR Q-BRIDGE |
0 |
|
Технический лист |
Q-Bridge | Tape & Reel (TR) | Active | Heat Transfer | Thermal Bridge Jumper | Rectangular | 0.77mm x 0.51mm | 0.0020" (0.051mm) | Aluminum Nitride | - | - | - | 12°C/W, 19°C/W | 53W/m-K, 81W/m-K |
|
|
VFSGBN-050050005-00THERMAL FOIL |
0 |
|
- |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 50.00mm x 50.00mm | 0.0197" (0.500mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 7.0W/m-K |
|
|
V8640ACCESSORIES |
0 |
|
- |
- | Bulk | Active | TO-218, TO-247, TO-248, TO-3P | Pad, Sheet | Rectangular | 24.00mm x 21.00mm | 0.0079" (0.200mm) | Silicone | Tacky - Both Sides | Fiberglass | Red | 0.35°C/W | 1.9W/m-K |
|
|
VFSDCR-030030040-00THERMAL FOIL |
0 |
|
Технический лист |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 30.00mm x 30.00mm | 0.157" (4.00mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 4.0W/m-K |
|
|
53-77-3GTHERM PAD 17.5MMX14.27MM GRY/GRN |
0 |
|
- |
Thermalsil™III | Bulk | Active | TO-220 | Pad, Sheet | Rectangular | 17.50mm x 14.27mm | 0.0060" (0.152mm) | Silicone Rubber | - | - | Gray, Green | - | 0.9W/m-K |
|
|
VFSBBR-100100005-00THERMAL FOIL |
0 |
|
Технический лист |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 100.00mm x 100.00mm | 0.0197" (0.500mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 1.5W/m-K |
|
|
TG-AL373-23-41-3.5-1ATHERM PAD 41X23MM W/ADH YLW |
0 |
|
Технический лист |
L37-3 | Bulk | Active | Multi | Conductive Pad, Sheet | Rectangular | 41.00mm x 23.00mm | 0.138" (3.50mm) | Silicone Elastomer | Adhesive - One Side | Fiberglass | Yellow | - | 1.7W/m-K |
|
|
VFSCBR-050050015-00THERMAL FOIL |
0 |
|
- |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 50.00mm x 50.00mm | 0.0591" (1.500mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 3.0W/m-K |
|
|
VFSDCN-050050015-00THERMAL FOIL |
0 |
|
Технический лист |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 50.00mm x 50.00mm | 0.0591" (1.500mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 4.0W/m-K |
|
T62-1-65-0.16THERM PAD 65MM DIA W/ADH BLACK |
0 |
|
Технический лист |
T62 | Box | Active | - | Graphite-Pad, Sheet | Round | 65.00mm Dia | 0.0063" (0.160mm) | Graphite | Adhesive - One Side | - | Black | - | 15W/m-K |
|
|
VFSGBN-030030020-00THERMAL FOIL |
0 |
|
- |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 30.00mm x 30.00mm | 0.0787" (2.000mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 7.0W/m-K |
|
|
2233003BERGQUIST GAP PAD TGP 1100SF |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
56-77-10THERM PAD 21.89MMX13.21MM OPAQUE |
0 |
|
- |
- | Bulk | Active | TO-220 | Insulator | Rectangular | 21.89mm x 13.21mm | 0.0020" (0.051mm) | Mica | - | - | Opaque | - | - |
|
|
QB0302A20WYT\500THERMAL CONDUCTOR Q-BRIDGE |
0 |
|
Технический лист |
Q-Bridge | Tape & Reel (TR) | Active | Heat Transfer | Thermal Bridge Jumper | Rectangular | 0.77mm x 0.51mm | 0.0020" (0.051mm) | Aluminum Nitride | - | - | - | 12°C/W, 19°C/W | 53W/m-K, 81W/m-K |
