Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-FPX035035010-85-C3-R0HEATSINK 35X35X10MM R-TAB FP |
21 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 24.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

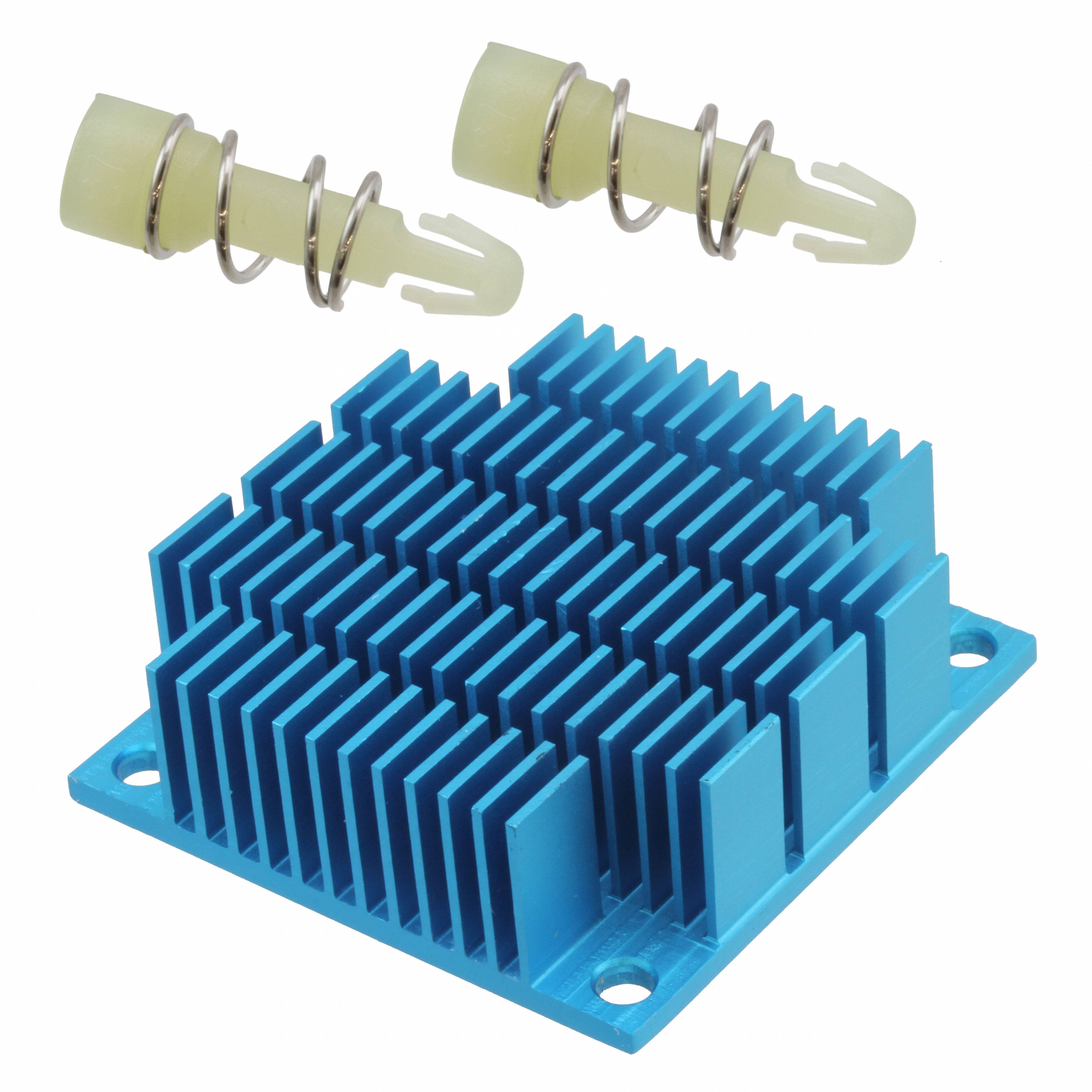

ATS-P1-118-C2-R0HEATSINK 45X45X15MM XCUT T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 6.54°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045035-164-C3-R0HEATSINK 45X45X35MM L-TAB CP |
22 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 2.49°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX045045035-192-C3-R0HEATSINK 45X45X35MM R-TAB CP |
20 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 2.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040015-03-C3-R0HEATSINK 40X40X15MM XCUT FP |
23 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 15.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20E-76-C2-R0HEATSINK 25X25X25MM R-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-76-C2-R0HEATSINK 25X25X25MM R-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-76-C2-R0HEATSINK 25X25X25MM R-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-46-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-76-C2-R0HEATSINK 25X25X25MM R-TAB T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-114-C2-R0HEATSINK 40X40X15MM XCUT T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-04F-01-C2-R0HEATSINK 40X40X10MM XCUT T766 |
25 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
