Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

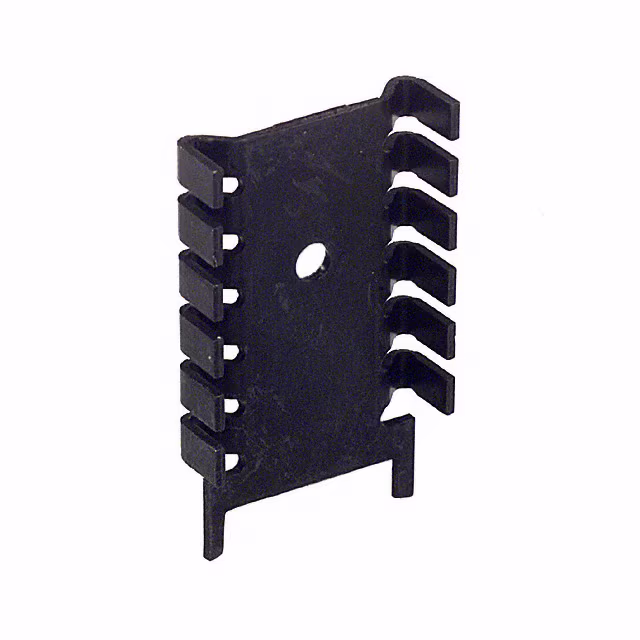

PSB2-1CBHEATSINK VERT W/TABS BLK TO-220 |
0 |
|
Технический лист |
PSB2-1 | - | Obsolete | Board Level, Vertical | TO-126, TO-127, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.250" (31.75mm) | 0.880" (22.35mm) | - | 0.250" (6.35mm) | - | - | 25.90°C/W | Aluminum | Black Anodized |
|
PSC2-1CBHEATSINK CLIP ON BLACK TO-220 |
0 |
|
- |
PSC2 | - | Obsolete | Board Level | TO-202 | Clip | Rectangular, Fins | 0.810" (20.57mm) | 1.000" (25.40mm) | - | 0.310" (7.87mm) | - | - | 41.70°C/W | Aluminum | Black Anodized |
|
|
PSC2-2UHEATSINK CLIP ON UNPLT TO-220 |
0 |
|
- |
PSC2 | - | Obsolete | Board Level | TO-220 | Clip | Rectangular, Fins | 0.810" (20.57mm) | 1.000" (25.40mm) | - | 0.310" (7.87mm) | - | - | 41.70°C/W | Aluminum | - |
|
|
PSD1-2-CBHEATSINK VERT W/TABS BLK TO-220 |
0 |
|
- |
PSD1 | - | Obsolete | Board Level, Vertical | - | Bolt On and PC Pin | Rectangular, Fins | 2.180" (55.37mm) | 1.380" (35.05mm) | - | 0.500" (12.70mm) | - | - | 14.40°C/W | Aluminum | Black Anodized |
|

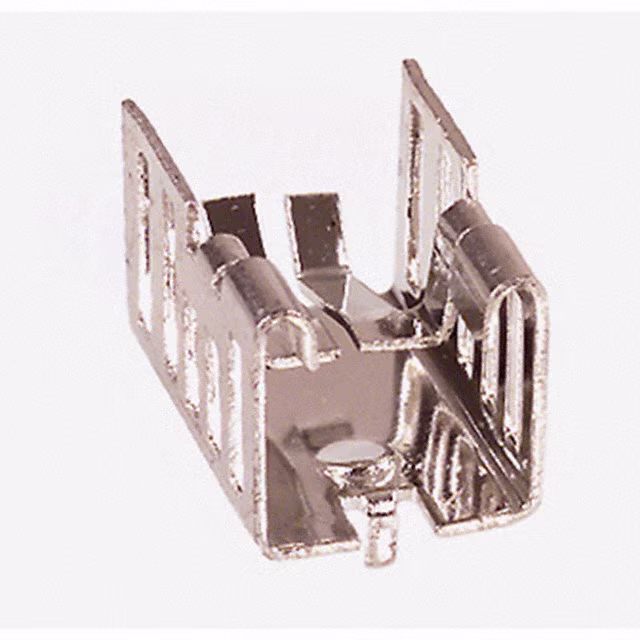

S702HEATSINK CLIP ON UNFINISH TO-220 |
0 |
|
- |
- | - | Obsolete | Board Level | TO-220 | Clip | Rectangular, Fins | - | - | - | - | - | - | - | - | Degreased |
|
7-345-3PP-BAHEATSINK PWR HORZ BLACK TO-220 |
0 |
|
Технический лист |
7 | Box | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 2.000" (50.80mm) | - | 0.553" (14.05mm) | 6.0W @ 50°C | - | 9.00°C/W | Aluminum | Black Anodized |
|
|
7-370-BAHEATSINK VERT .750"H BLK TO-220 |
0 |
|
Технический лист |
7 | - | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.000" (25.40mm) | 0.850" (21.59mm) | - | 0.750" (19.05mm) | 2.5W @ 40°C | - | 20.00°C/W | Aluminum | Black Anodized |
|
|
7-374-1-BAHEATSINK VERT .375"H BLK TO-220 |
0 |
|
Технический лист |
7 | - | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.375" (9.52mm) | 2.0W @ 50°C | - | 29.00°C/W | Aluminum | Black Anodized |
|
|
7-404-000-BAHEATSINK PWR HORZ 1.5"H BLACK |
0 |
|
Технический лист |
7 | - | Obsolete | Board Level | TO-220 | Bolt On | Square, Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 1.500" (38.10mm) | 15.0W @ 50°C | - | - | Aluminum | Black Anodized |
|
|
7-199-BAHEATSINK DUAL HORZ BLACK TO-220 |
0 |
|
Технический лист |
7 | - | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.450" (36.83mm) | 0.780" (19.81mm) | - | 0.850" (21.60mm) | 2.5W @ 30°C | - | - | Aluminum | Black Anodized |
|
|
7-340-4PP-BAHEATSINK PWR DUAL BLACK TO-220 |
0 |
|
Технический лист |
7 | Box | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.500" (38.10mm) | 1.150" (29.21mm) | - | 0.460" (11.68mm) | 9.0W @ 60°C | - | 6.67°C/W | Aluminum | Black Anodized |
|
7-345-4PP-BAHEATSINK PWR DUAL BLACK TO-220 |
0 |
|
Технический лист |
7 | Box | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.500" (38.10mm) | 2.000" (50.80mm) | - | 0.553" (14.05mm) | 6.0W @ 25°C | - | - | Aluminum | Black Anodized |
|

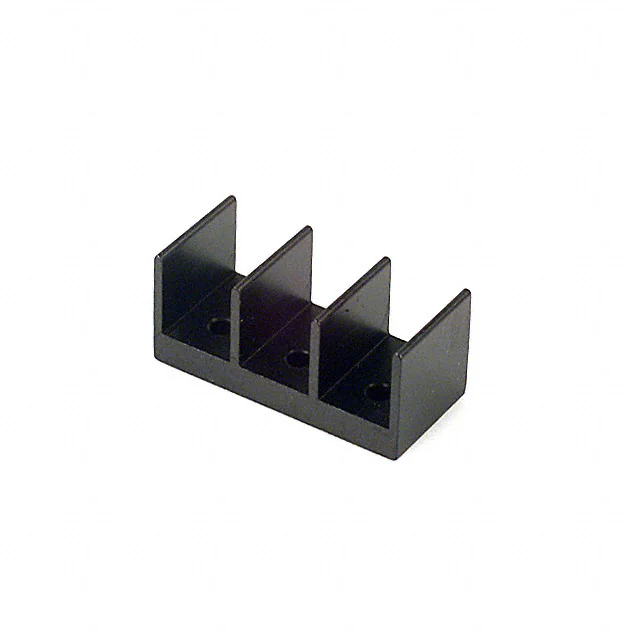

7-342-1PP-BAHEATSINK TRIPLE BLACK TO-220 |
0 |
|
Технический лист |
7 | Box | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 1.642" (41.70mm) | - | 0.690" (17.53mm) | 3.0W @ 30°C | - | - | Aluminum | Black Anodized |
|
|
7-406-000-BAHEATSINK PWR HORZ.750"H BLK TO-3 |
0 |
|
Технический лист |
7 | - | Obsolete | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.500" (38.10mm) | 1.500" (38.10mm) | - | 0.750" (19.05mm) | 6.0W @ 40°C | - | - | Aluminum | Black Anodized |
|

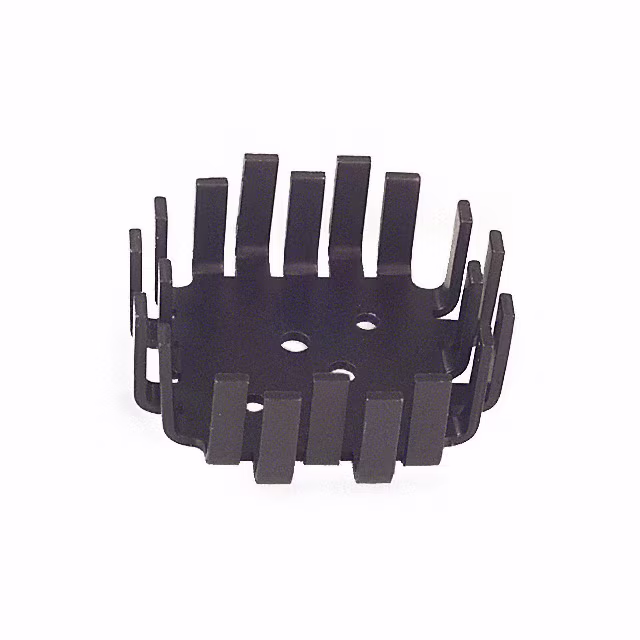

HP1-TO3-CBHEATSINK PWR .90"H BLACK TO-3 |
0 |
|
Технический лист |
HP1 | - | Obsolete | Board Level | TO-3 | Bolt On | Square, Pin Fins | 2.500" (63.50mm) | 2.500" (63.50mm) | - | 0.900" (22.86mm) | - | - | 5.40°C/W | Aluminum | Black Anodized |
|

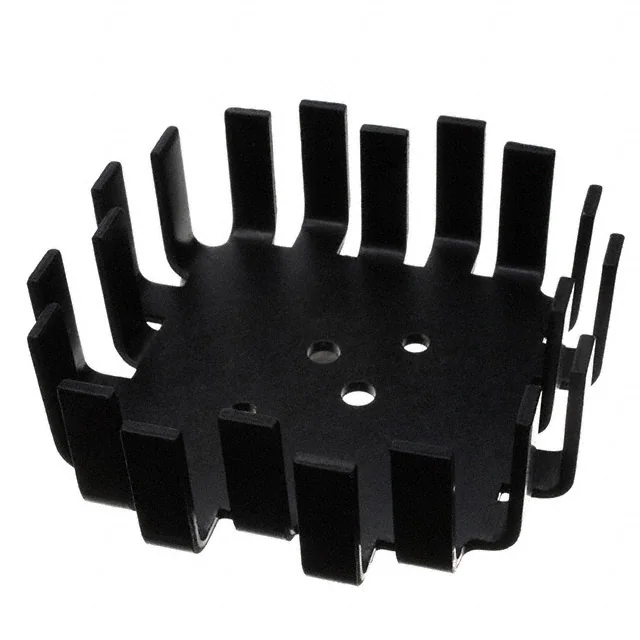

HP3-TO3-CBHEATSINK PWR 1.0"H BLACK TO-3 |
0 |
|
Технический лист |
HP3 | - | Obsolete | Board Level | TO-3 | Bolt On | Square, Pin Fins | 3.120" (79.25mm) | 3.120" (79.25mm) | - | 1.000" (25.40mm) | - | - | 4.40°C/W | Aluminum | Black Anodized |
|
|
LA363B3CBHEATSINK PWR .75"H BLACK TO-3 |
0 |
|
Технический лист |
- | - | Obsolete | Board Level | TO-3 | Bolt On | Rhombus | 1.630" (41.40mm) | 1.290" (32.77mm) | - | 0.750" (19.05mm) | - | - | 0.70°C/W | Aluminum | Black Anodized |
|
|
LA363B4CBHEATSINK PWR 1.00"H BLACK TO-3 |
0 |
|
Технический лист |
- | - | Obsolete | Board Level | TO-3 | Bolt On | Rhombus | 1.630" (41.40mm) | 1.290" (32.77mm) | - | 1.000" (25.40mm) | - | - | 0.70°C/W | Aluminum | Black Anodized |
|

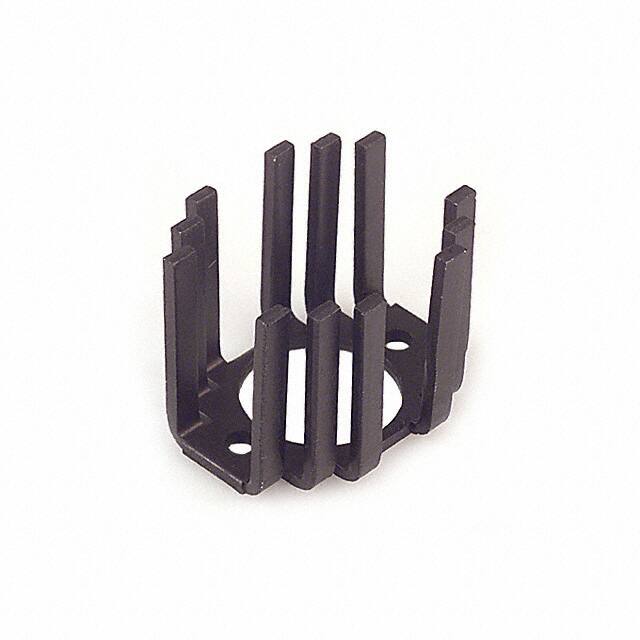

LA363B5CBHEATSINK PWR 1.25"H BLACK TO-3 |
0 |
|
Технический лист |
LA363B5 | - | Obsolete | Board Level | TO-3 | Bolt On | Rhombus | 1.630" (41.40mm) | 1.290" (32.77mm) | - | 1.250" (31.75mm) | - | - | 11.10°C/W | Aluminum | Black Anodized |
|

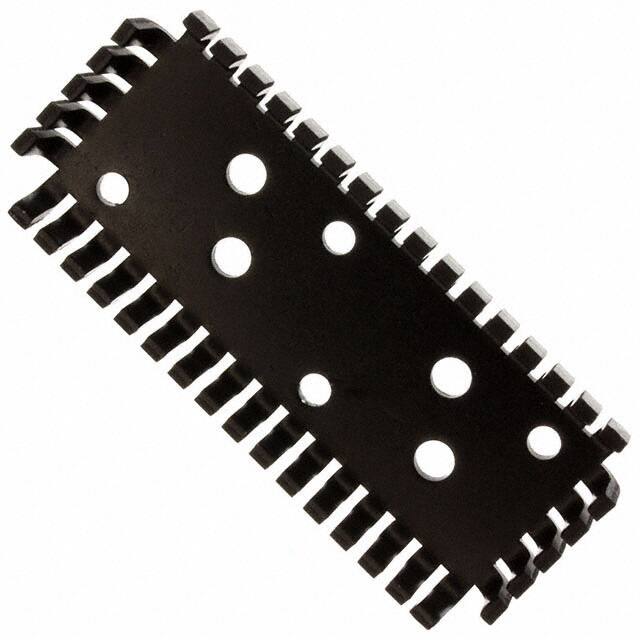

UP10-TO3-2CBHEATSINK BOARD MNT BLACK TO-3 |
0 |
|
Технический лист |
UP10 | - | Obsolete | Board Level | TO-3 (Dual) | Bolt On | Rectangular, Fins | 3.380" (85.85mm) | 1.400" (35.56mm) | - | 0.440" (11.18mm) | - | - | 7.70°C/W | Aluminum | Black Anodized |
