Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

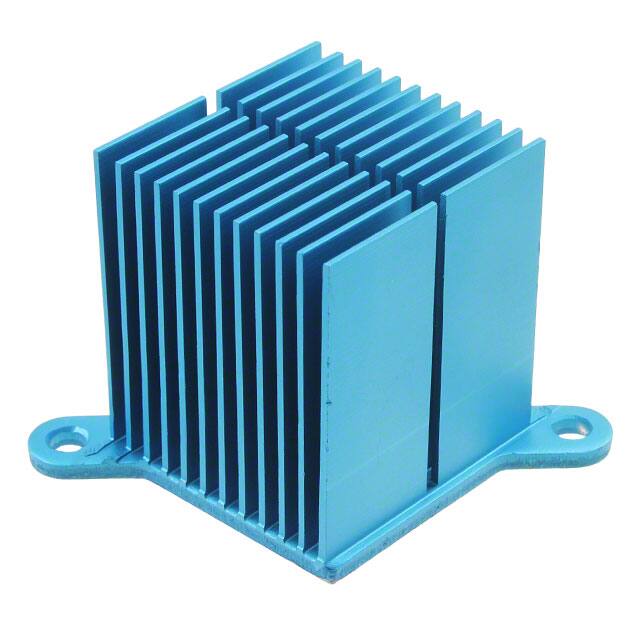

ATS-FPX030030035-84-C2-R0HEATSINK 30X30X35MM R-TAB FP |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
960-23-15-F-AB-0HEATSINK 23X15MM FRONT PUSH PIN |
0 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.590" (15.00mm) | - | 5.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
6225B-MTGHEATSINK TO-220 TAB BLACK |
0 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.070" (27.18mm) | 1.024" (26.00mm) | - | 0.315" (8.00mm) | 2.0W @ 40°C | 3.00°C/W @ 700 LFM | 15.00°C/W | Aluminum | Black Anodized |
|

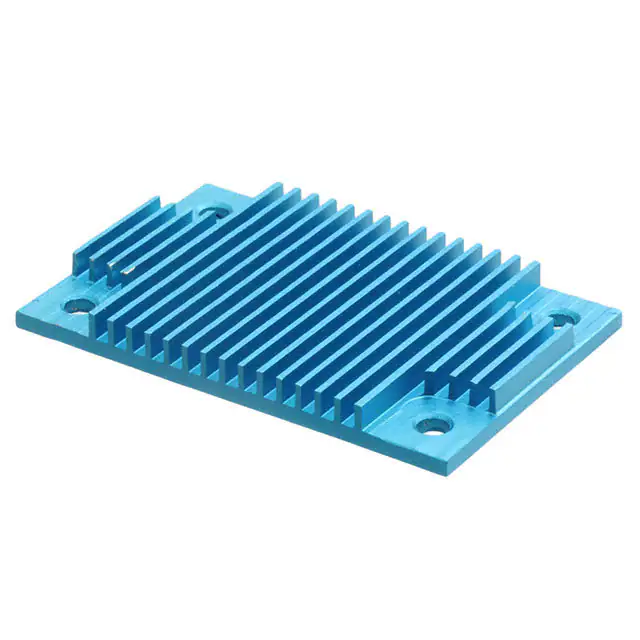

ATS-FPS037058006-35-C2-R0HEATSINK 36.83X57.6X5.84MM FP |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.230" (5.84mm) | - | 22.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-03B-165-C2-R0HEATSINK 25X25X10MM R-TAB T766 |
23 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
XL25D-TO264-28-22-1CERAMIC HEAT SPREADER 28X22X1MM |
15 |
|
Технический лист |
XL-25 | Bulk | Active | Heat Spreader | TO-264 | Thermal Tape | Rectangular | 1.102" (28.00mm) | 0.866" (22.00mm) | - | 0.039" (1.00mm) | - | - | - | Ceramic | - |
|
|
960-23-23-F-AB-0HEATSINK 23X23MM FRONT PUSH PIN |
1 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.905" (23.00mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX060060025-25-C1-R0HEATSINK 60X60X25MM XCUT FP |
16 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TGH-0400-04ALUMINIUM HEAT SINK 40X40MM |
13 |
|
Технический лист |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.787" (19.99mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-FPX050050010-107-C2-R1HEATSINK 50X50X9.5MM XCUT SFP |
20 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.374" (9.50mm) | - | 27.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

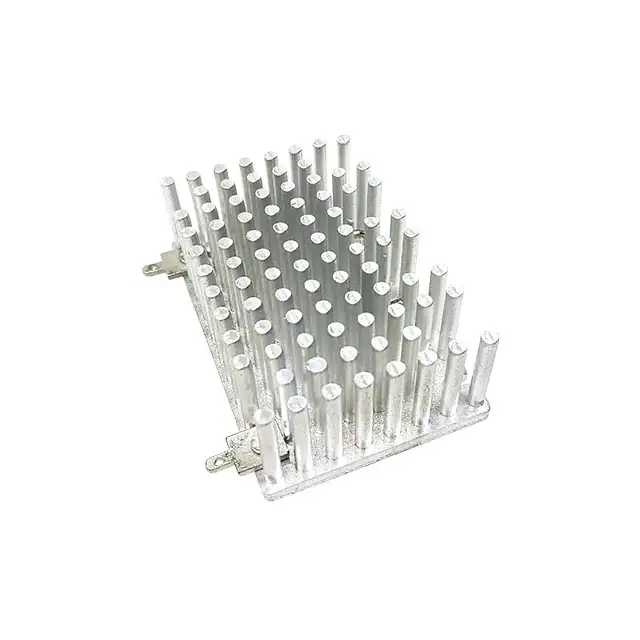

PV-T21-38EDUAL PIN FIN HEATSINK 1 CLIP |
13 |
|
Технический лист |
P | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip and PC Pin | Rectangular, Pin Fins | 2.170" (55.12mm) | 1.240" (31.50mm) | - | 1.520" (38.61mm) | - | - | 3.89°C/W | Aluminum | Degreased |
|
ATS-08F-145-C2-R0HEATSINK 30X30X30MM L-TAB T766 |
0 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
531202B02100GHEATSINK TO-220 SOLDERPIN 50.8MM |
0 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-202 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 8.0W @ 60°C | 4.00°C/W @ 600 LFM | 7.50°C/W | Aluminum | Black Anodized |
|
ATS-14F-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
5 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
C220-050-2VEHEATSINK AND CLIP FOR 2 TO-220 |
8 |
|
Технический лист |
C | Box | Active | Board Level, Vertical | TO-220 | 2 Clips and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | - | - | - | Aluminum | Degreased |
|
ATS-P1-32-C2-R0HEATSINK 57.9X36.83X11.43MM T766 |
3 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.450" (11.43mm) | - | 21.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX070070013-27-C1-R0HEATSINK 70X70X12.7MM XCUT FP |
0 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.500" (12.70mm) | - | 12.23°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-17E-66-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
0 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21F-206-C2-R0HEATSINK 60X60X10MM XCUT T766 |
5 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 7.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-55450D-C1-R0HEAT SINK 45MM X 45MM X 9.5MM |
0 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 9.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
