Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
637-15ABPEHEATSINK TO-220 VRT MT BLK 1.5" |
0 |
|
Технический лист |
637 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 6.0W @ 65°C | 5.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
625-25ABT4EHEATSINK CPU 25MM SQ W/DBL TAPE |
0 |
|
Технический лист |
625 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.250" (6.35mm) | - | 12.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
WV-T247-101EHEATSINK AND CLIP FOR TO-247 |
5 |
|
Технический лист |
W | Tray | Active | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 1.260" (32.00mm) | 0.921" (23.40mm) | - | 0.630" (16.00mm) | 1.0W @ 20°C | 8.00°C/W @ 500 LFM | 9.00°C/W | Aluminum | Degreased |
|
658-35ABT4EHEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Технический лист |
658 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.350" (8.89mm) | - | 3.00°C/W @ 800 LFM | - | Aluminum | Black Anodized |
|
FA-T220-25EHEATSINK TO-218,TO-220,TO-247 |
0 |
|
Технический лист |
F | Box | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.638" (41.60mm) | - | 0.984" (25.00mm) | 4.0W @ 30°C | 3.00°C/W @ 400 LFM | 4.70°C/W | Aluminum | Black Anodized |
|
WA-T247-101EHEATSINK AND CLIP FOR TO-247 BLK |
0 |
|
Технический лист |
W | Tray | Active | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 1.260" (32.00mm) | 0.921" (23.40mm) | - | 0.630" (16.00mm) | 1.0W @ 20°C | 8.00°C/W @ 500 LFM | 11.00°C/W | Aluminum | Black Anodized |
|

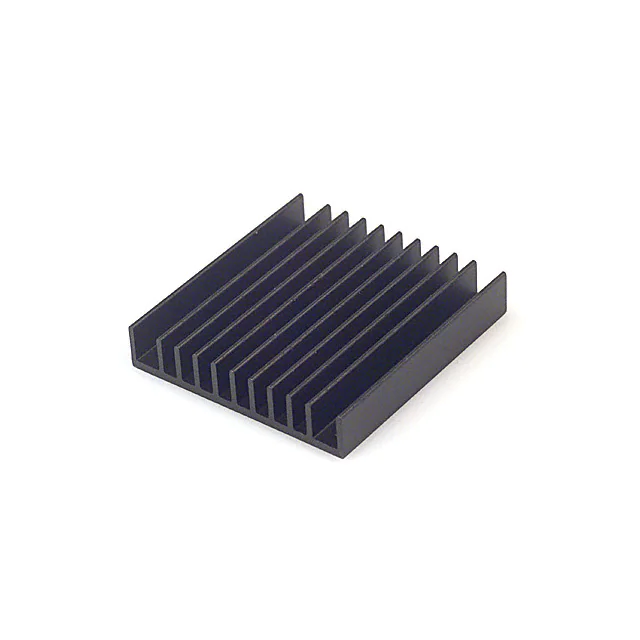

528-45ABHEATSINK DC/DC HALF BRICK VERT |
0 |
|
Технический лист |
528 | Bulk | Active | Board Level | Half Brick DC/DC Converter | Bolt On | Rectangular, Fins | 2.402" (61.00mm) | 2.280" (57.91mm) | - | 0.450" (11.43mm) | 7.0W @ 60°C | 3.20°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
FA-T220-38EHEATSINK TO-218,TO-220,TO-247 |
0 |
|
Технический лист |
F | Box | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.638" (41.60mm) | - | 0.984" (25.00mm) | 10.0W @ 50°C | 1.50°C/W @ 600 LFM | 3.80°C/W | Aluminum | Black Anodized |
|

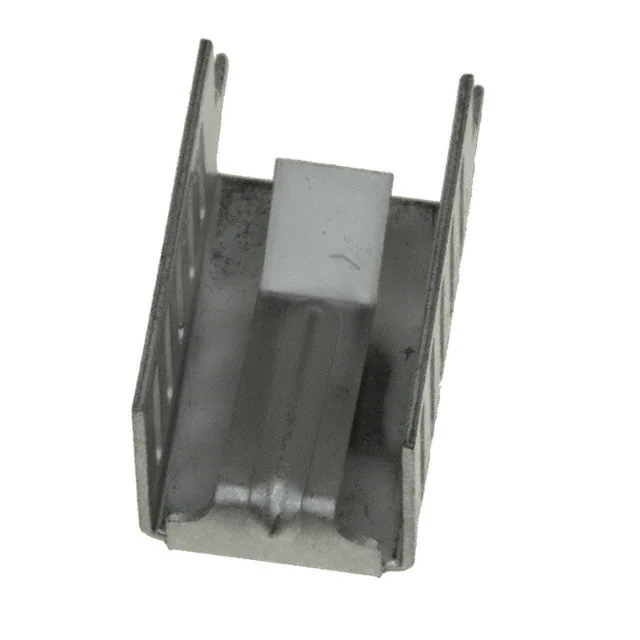

7136DGBOARD LEVEL HEATSINK .515"TO-220 |
0 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.848" (21.55mm) | 0.520" (13.21mm) | - | 0.515" (13.08mm) | 1.0W @ 30°C | 6.00°C/W @ 500 LFM | 19.70°C/W | Copper | Tin |
|

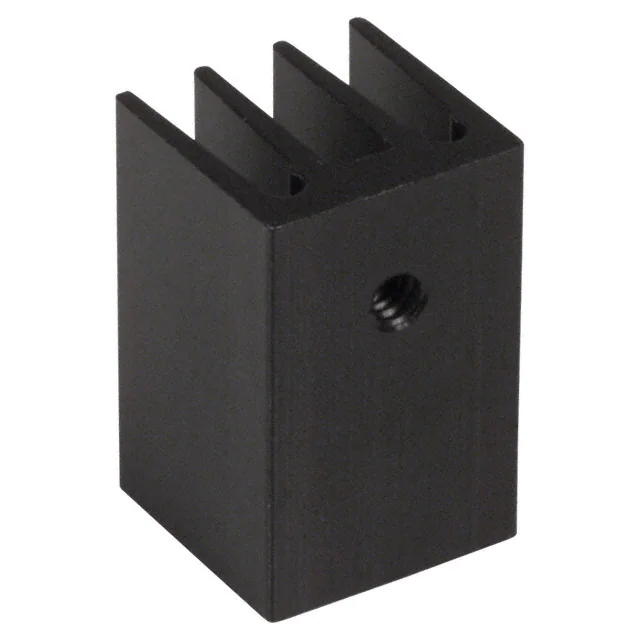

581002B00000HEATSINK TO-220 4.3W H=1.0 BLK |
0 |
|
Технический лист |
- | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.000" (25.40mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | 2.5W @ 50°C | 4.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
6396BGHEATSINK TO-218/TO-220 PIN |
0 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 4.0W @ 30°C | 1.50°C/W @ 600 LFM | 5.60°C/W | Aluminum | Black Anodized |
|
APF30-30-06CB/A01HEATSINK FORGED W/ADHESIVE TAPE |
0 |
|
Технический лист |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.250" (6.35mm) | - | 4.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

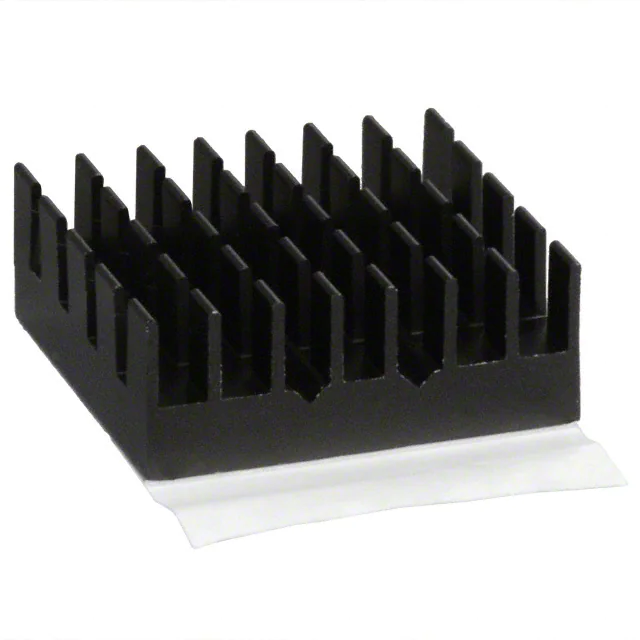

ATS-55250D-C1-R0HEAT SINK 25MM X 25MM X 9.5MM |
0 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.374" (9.50mm) | - | 16.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX070070025-136-C1-R0HEATSINK 70X70X25MM XCUT CP |
0 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

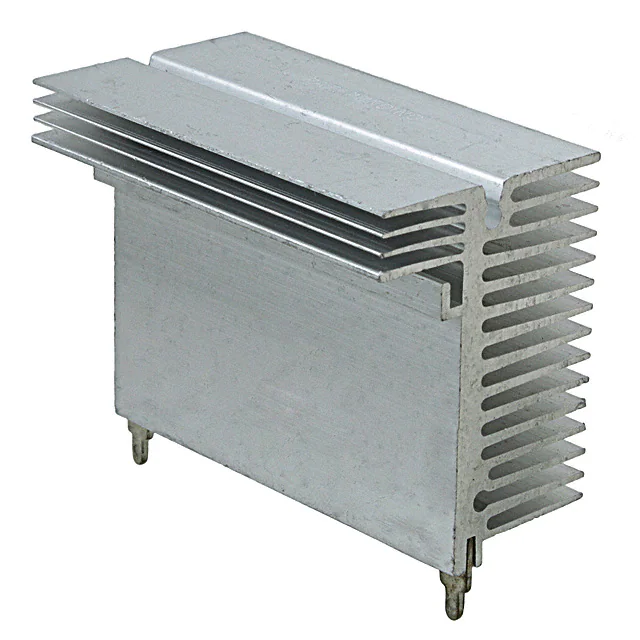

C40-058-VEHEATSINK FOR TO-247 TO-264 |
0 |
|
Технический лист |
C40 | Box | Active | Board Level, Vertical | TO-247, TO-264, SOT-227 | Clip and Board Mounts | Rectangular, Fins | 2.283" (58.00mm) | 1.724" (43.79mm) | - | 1.260" (32.00mm) | - | - | - | Aluminum | Degreased |
|
6399BGHEAT SINK |
15 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247, Multiwatt | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 8.0W @ 40°C | 1.00°C/W @ 700 LFM | 3.30°C/W | Aluminum | Black Anodized |
|

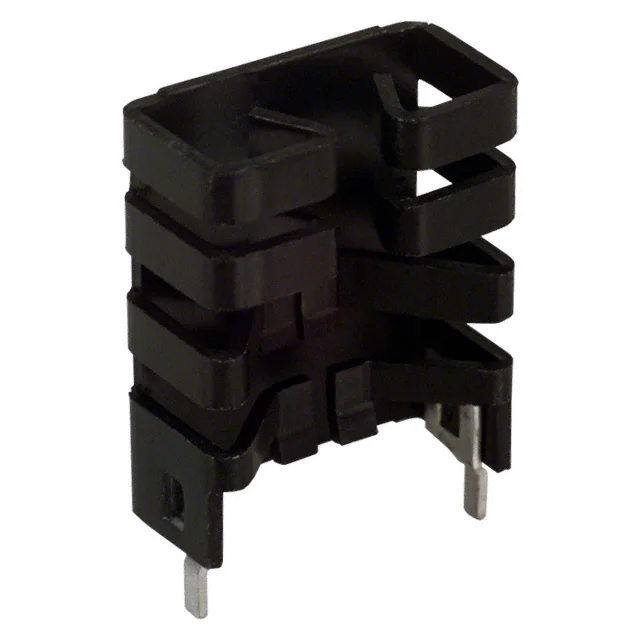

566010B03400GHEATSINK W/TAB BLACK |
0 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | Multiwatt, SIP | Clip and PC Pin | Rectangular, Fins | 1.220" (30.99mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 4.00°C/W @ 300 LFM | 11.50°C/W | Aluminum | Black Anodized |
|
6400BGBOARD LEVEL HEAT SINK |
0 |
|
Технический лист |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247, Multiwatt | Bolt On and PC Pin | Rectangular, Fins | 1.650" (41.91mm) | 1.000" (25.40mm) | - | 2.500" (63.50mm) | 4.0W @ 20°C | 1.50°C/W @ 400 LFM | 2.70°C/W | Aluminum | Black Anodized |
|

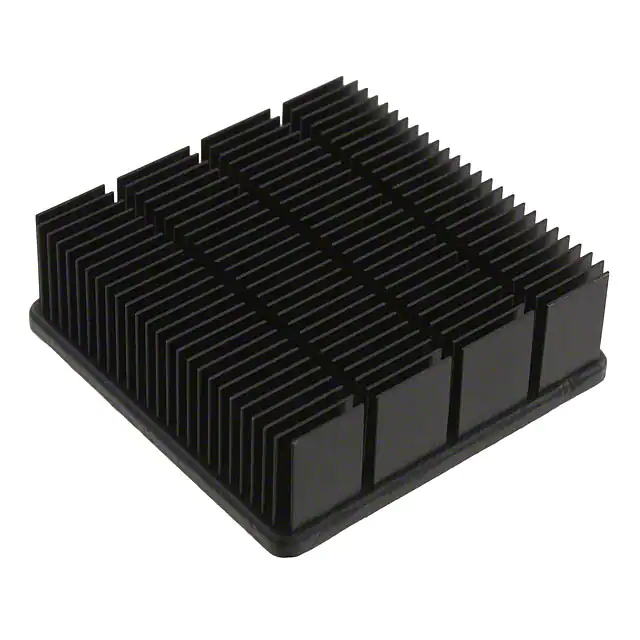

APF40-40-13CB/A01HEATSINK FORGED W/ADHESIVE TAPE |
0 |
|
Технический лист |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
114992686ALUMINUM HEATSINK FOR JETSON NAN |
0 |
|
- |
- | Bulk | Active | Top Mount | Nvidia Jetson Nano | Bolt On | Rectangular, Fins | 2.323" (59.00mm) | 1.535" (39.00mm) | - | 0.681" (17.30mm) | - | - | - | Aluminum Alloy | - |
