Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-15D-39-C1-R0HEATSINK 57.9X60.96X5.84MM |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-52325G-C0-R0HEATSINK 32.5X32.5X12.5MM NO TIM |
0 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.492" (12.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-134-C1-R0HEATSINK 70X70X15MM XCUT |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 4.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-115-C1-R0HEATSINK 40X40X20MM XCUT |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
11-5602-5111-5602-51 REV F |
0 |
|
- |
- | Bulk | Active | Top Mount | BGA | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.453" (11.50mm) | - | - | 3.70°C/W | Brass | Black Anodized |
|
ATS-P1-40-C1-R0HEATSINK 57.9X60.96X11.43MM |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.450" (11.43mm) | - | 14.55°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

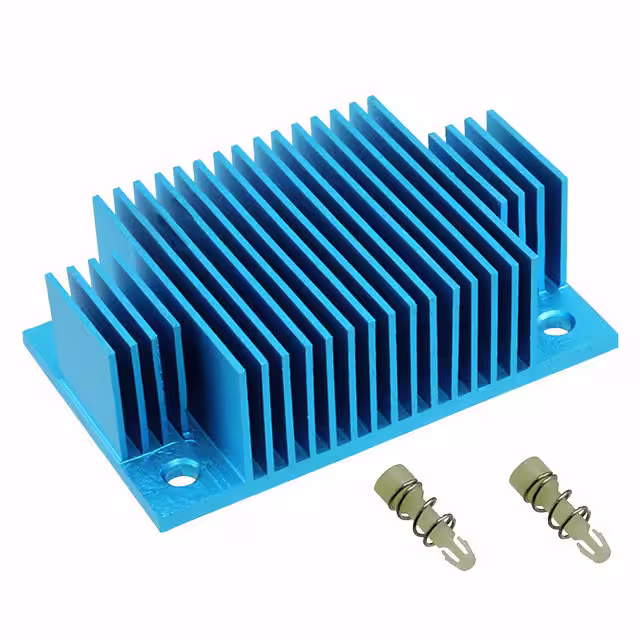

ATS-P1-37-C3-R0HEATSINK 36.83X57.6X17.78MM T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.700" (17.78mm) | - | 9.19°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-50-C1-R0HEATSINK 30X30X15MM L-TAB |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 18.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-80-C1-R0HEATSINK 30X30X15MM R-TAB |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 18.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-200-C1-R0HEATSINK 50X50X10MM XCUT |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.76°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-202-C1-R0HEATSINK 54X54X6MM XCUT |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.236" (6.00mm) | - | 14.80°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-54190W-C0-R0HEATSINK 19X19X24.5MM W/OUT TIM |
0 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.965" (24.50mm) | 0.3W @ 20°C | 6.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
AER45-45-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
0 |
|
Технический лист |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.457" (11.60mm) | - | 2.70°C/W @ 200 LFM | 8.70°C/W | Aluminum Alloy | Black Anodized |
|
|
AER45-45-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
0 |
|
Технический лист |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.575" (14.60mm) | - | 2.40°C/W @ 200 LFM | 8.20°C/W | Aluminum Alloy | Black Anodized |
|
|
AER45-45-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
0 |
|
Технический лист |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.693" (17.60mm) | - | 2.20°C/W @ 200 LFM | 7.80°C/W | Aluminum Alloy | Black Anodized |
|
ATS-18F-22-C2-R0HEATSINK 60X60X12.7MM XCUT T766 |
0 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 13.83°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-01E-31-C3-R0HEATSINK 57.9X36.83X5.84MM T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.230" (5.84mm) | - | 25.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-73-C2-R0HEATSINK 25X25X10MM R-TAB T766 |
0 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 28.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-139-C2-R0HEATSINK 25X25X20MM L-TAB T766 |
0 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.10°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-167-C2-R0HEATSINK 25X25X20MM R-TAB T766 |
0 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.10°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
