Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-54290R-C0-R0HEATSINK 29X29X19.5MM W/OUT TIM |
0 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.768" (19.50mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-209-C1-R0HEATSINK 70X70X10MM XCUT |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

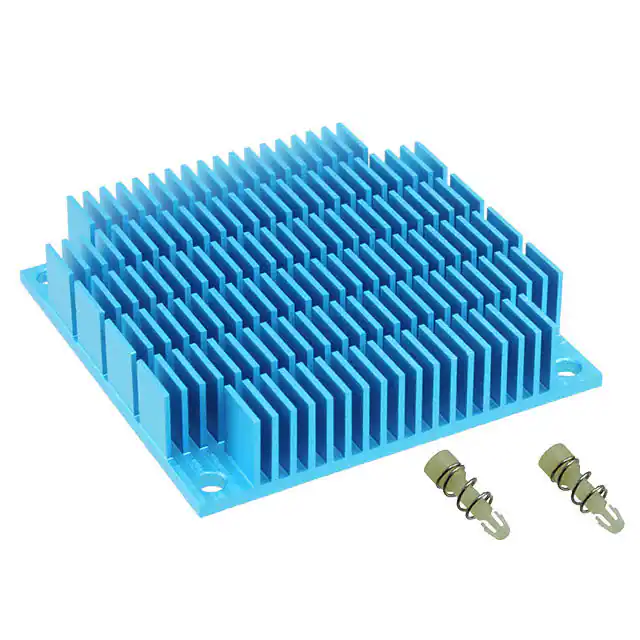

ATS-P1-22-C3-R0HEATSINK 60X60X12.7MM XCUT T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 13.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

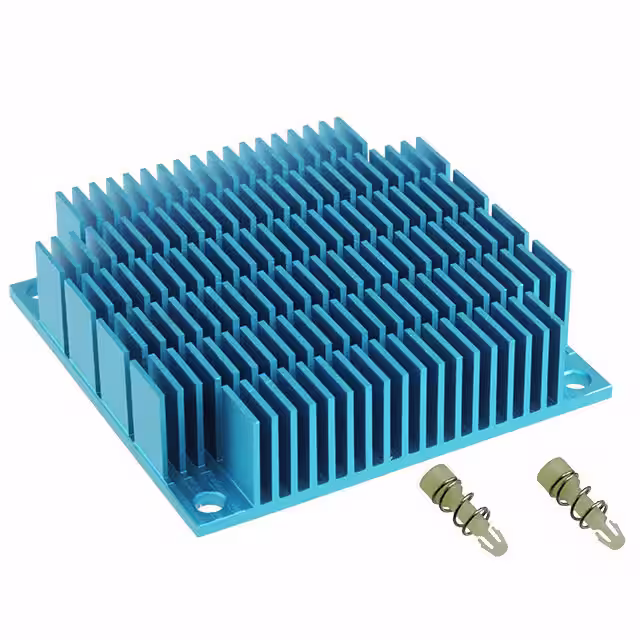

ATS-P1-23-C3-R0HEATSINK 60X60X15MM XCUT T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.590" (15.00mm) | - | 12.06°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-110-C1-R1HEATSINK 54.00MM X 54.00MM ALUM |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.500" (12.70mm) | - | 26.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-103-C3-R1HEATSINK 40X40X9.5MM XCUT T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 27.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
V5512EPROFILE HEATSINK |
0 |
|
- |
- | Bulk | Active | Board Level | TO-220, TOP-3 | Bolt On | Rectangular, Fins | 1.969" (50.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | - | 3.40°C/W | Aluminum Alloy | Black Anodized |
|
BGAH425-125EBGA HEATSINK W/TAPE |
0 |
|
Технический лист |
BG | Box | Obsolete | Top Mount | BGA, CPU, GPU | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.492" (12.50mm) | - | - | 2.50°C/W | Aluminum Alloy | Black Anodized |
|
|
533042B32500GSTD,533042B32500G |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-P2-65-C3-R0HEATSINK 40X40X30MM L-TAB T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.40°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P2-95-C3-R0HEATSINK 40X40X30MM R-TAB T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.40°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-163-C3-R0HEATSINK 45X45X30MM L-TAB T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 2.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P2-191-C3-R0HEATSINK 45X45X30MM R-TAB T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 2.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-55375K-C0-R0HEATSINK 37X37X14.5MM W/OUT TIM |
0 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.571" (14.50mm) | - | 5.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-55230R-C0-R0HEATSINK 23X23X19.5MM W/OUT TIM |
0 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.768" (19.50mm) | - | 7.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-21E-208-C1-R0HEATSINK 70X70X6MM XCUT |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.49°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16G-71-C3-R0HEATSINK 45X45X30MM L-TAB T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 6.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19G-101-C3-R0HEATSINK 45X45X30MM R-TAB T412 |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 6.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02A-208-C1-R0HEATSINK 70X70X6MM XCUT |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.49°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-12B-208-C1-R0HEATSINK 70X70X6MM XCUT |
0 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.49°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
