Тактильные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Функция переключения | Контактный рейтинг при напряжении | Тип привода | Тип крепления | Высота привода от печатной платы, вертикальная | Длина привода, прямой угол | Ориентация привода | Тип вывода | Контур | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Рабочее усилие | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

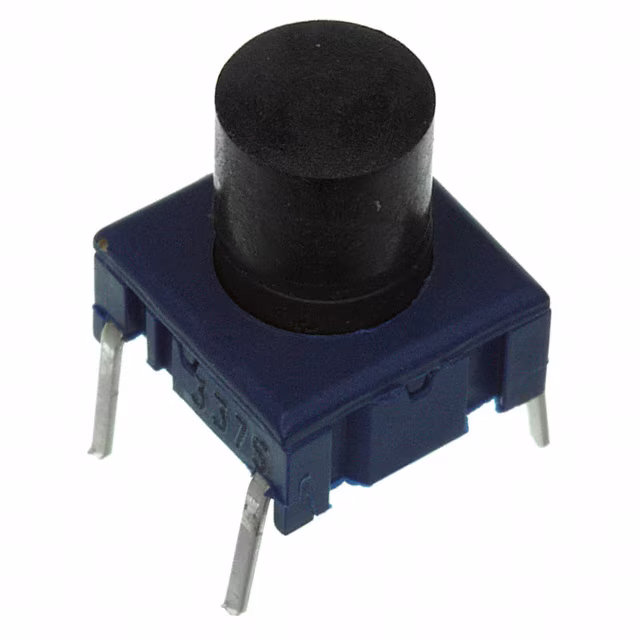

3ETL9-12.0SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3ETL9-15.0SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 15.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

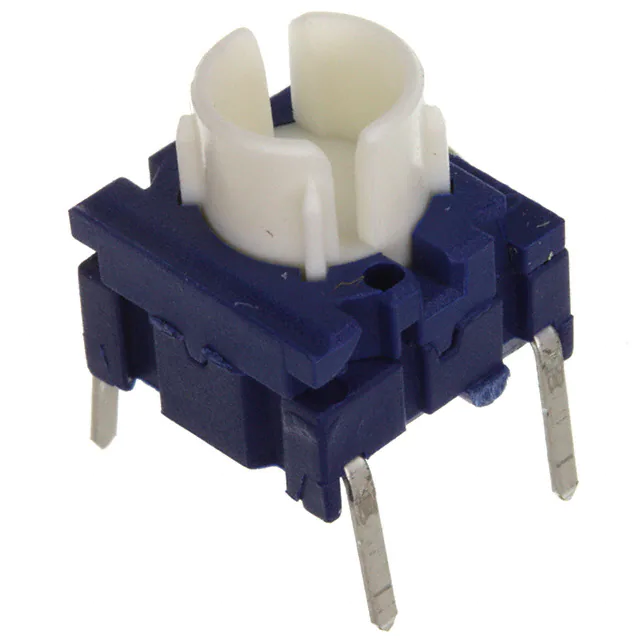

3FTL6SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3FTL600SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Blue | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3FTL620SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

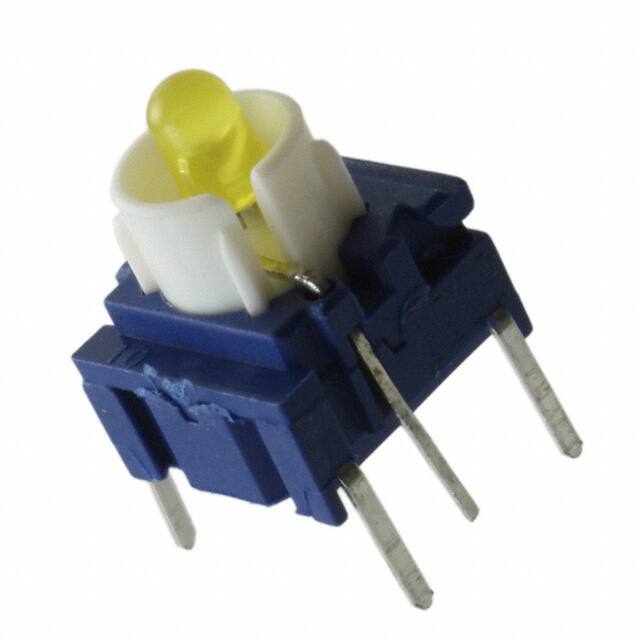

3FTL640SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3FTL645SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2.3 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3FTL680SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Red | 2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3FTL68020SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green/Red | 2.0, 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

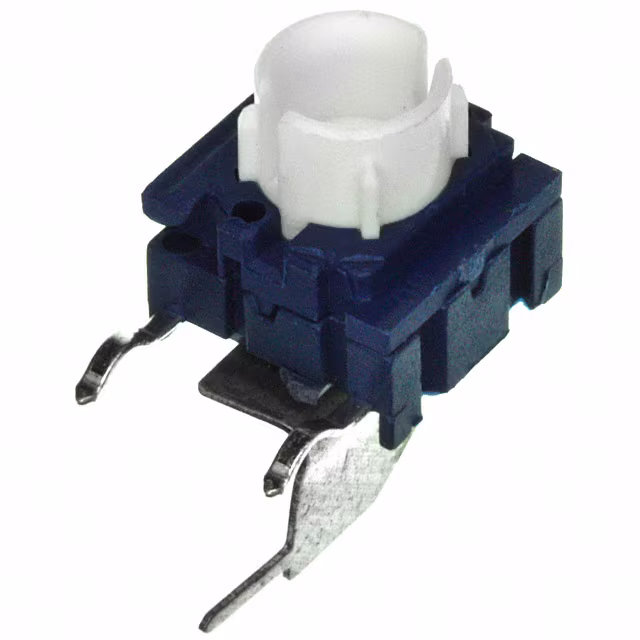

3FTL6RASSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

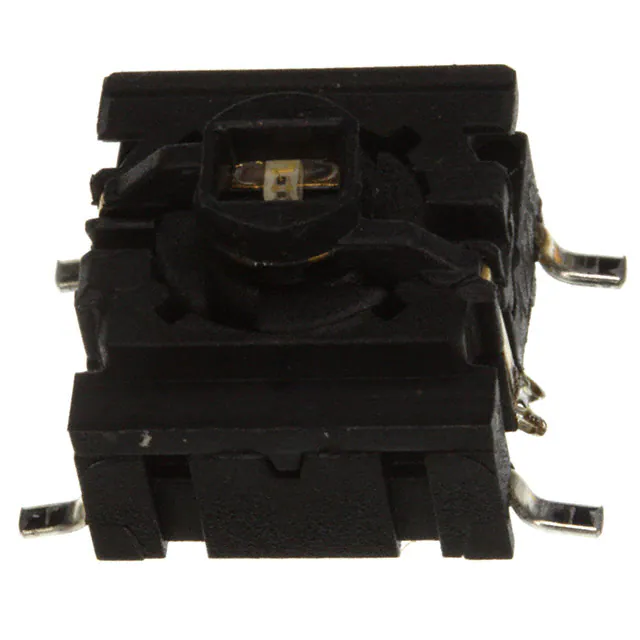

4ASH922SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 8.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | LED, Green | 2.2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|

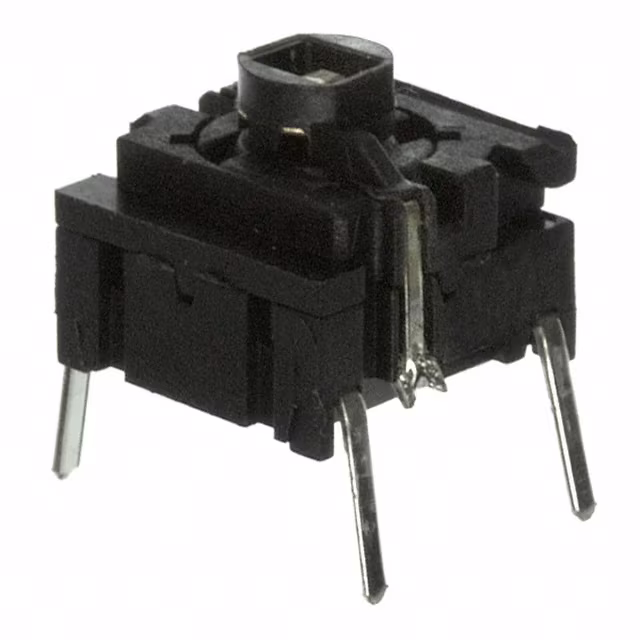

4ATH942SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 8.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|

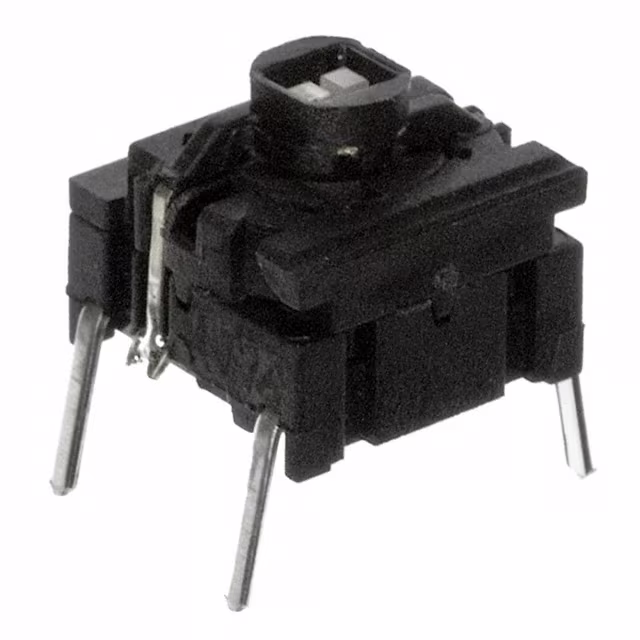

4ATH98222SWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Технический лист |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 8.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green/Red | 2.0, 2.2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|
KSA0M431LFTSWITCH TACTILE SPST-NO 0.01A 32V |
0 |
|
Технический лист |
KSA | Tray | Obsolete | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 300gf | IP60 - Dust Tight | - | -40°C ~ 125°C |
|
PTS645VJL61 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Технический лист |
PTS645 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
KSJ0V411 80SH LFTSWITCH TACTILE SPST-NO 0.05A 32V |
0 |
|
Технический лист |
KSJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Spherical | Through Hole, Right Angle | - | 5.31mm | Side Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 300gf | IP60 - Dust Tight | - | -40°C ~ 90°C |
|
KSA0M911LFTSWITCH TACTILE SPST-NO 0.05A 32V |
0 |
|
Технический лист |
KSA | Tray | Discontinued | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 300gf | IP60 - Dust Tight | - | -40°C ~ 90°C |
|
EVQ-Q0C03KSWITCH TACT SPST-NO 0.02A 15V |
0 |
|
Технический лист |
EVQQ0 | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Rectangular Button | Edge Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 6.20mm x 3.75mm | Non-Illuminated | - | - | 100/260gf | - | - | -20°C ~ 70°C |
|
K5V2WX43TSWITCH TACTILE SPDT 0.1A 32V |
0 |
|
Технический лист |
K5V | Tray | Active | SPDT | On-Mom | 0.1A @ 32VDC | Translucent | Through Hole, Right Angle | - | 12.40mm | Side Actuated | PC Pin | 8.00mm x 10.10mm | Illuminated | LED, White | - | 400gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|
KSF0A211 LFTSWITCH TACTILE SPST-NO 0.05A 32V |
0 |
|
Технический лист |
KSF | Tube | Discontinued | SPST-NO | Off-Mom | 0.05A @ 32VDC | Without | Through Hole | 2.60mm | - | Top Actuated | PC Pin | 7.40mm x 7.30mm | Non-Illuminated | - | - | 130gf | IP60 - Dust Tight | - | -40°C ~ 85°C |
