Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDS-4553-16-SPSPEAKER 16OHM 1W TOP PORT 80DB |
0 |
|
Технический лист |
CDS | Box | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 500Hz | 16 Ohms | 80.00 | 1W/1m | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.772" Dia (45.00mm) | 0.209" (5.30mm) |
|

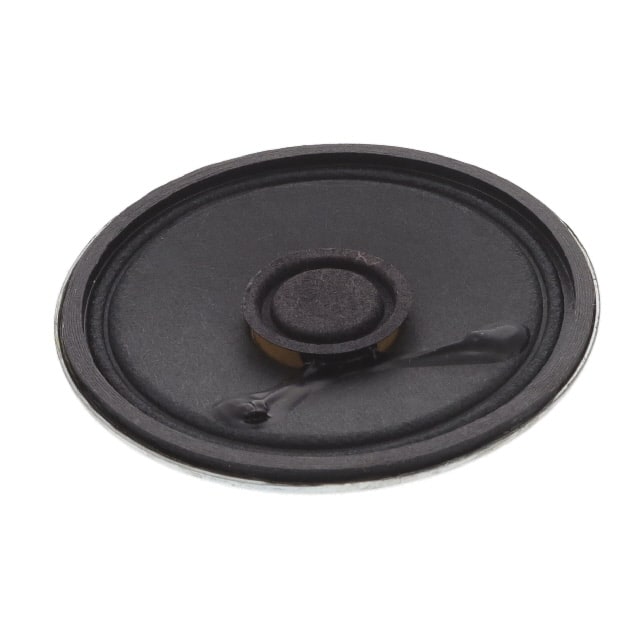

AS05016PR-4-RSPEAKR 16OHM 100MW TOP PORT 88DB |
0 |
|
Технический лист |
AS | Tray | Active | - | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 16 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | - | - | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.374" (9.50mm) |
|
SP-4012-8YSPEAKER 8OHM 2W TOP PORT 78DB |
22 |
|
Технический лист |
SP | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 12 kHz | 400Hz | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | - | Nd-Fe-B | IP30 | - | Solder Eyelet(s) | 1.575" L x 1.110" W (40.00mm x 28.20mm) | 0.465" (11.80mm) |
|
AS03504CO-2-RSPEAKER 4OHM 1W TOP PORT 83DB |
21 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 4 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.386" L x 0.638" W (35.20mm x 16.20mm) | 0.228" (5.80mm) |
|

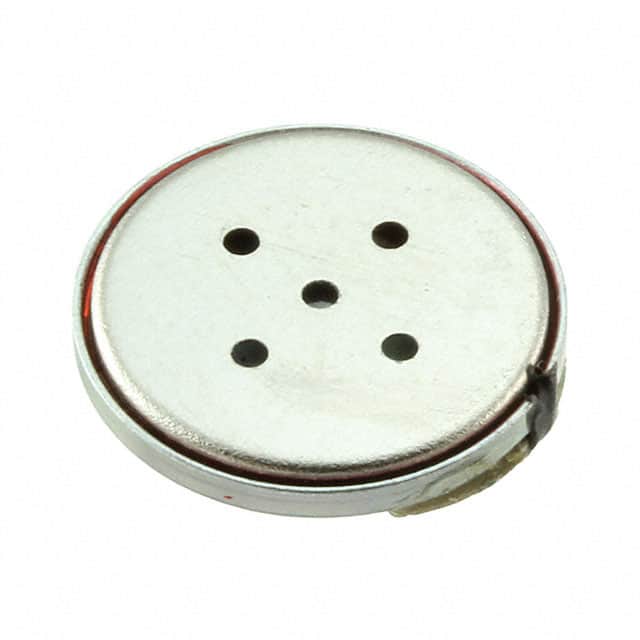

PSR12N08AKSPEAKER 8OHM 500MW TOP PORT 74DB |
16 |
|
Технический лист |
PSR | Bulk | Active | Magnetic | General Purpose | 1 kHz ~ 20 kHz | 1000Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.472" Dia (12.00mm) | 0.118" (3.00mm) |
|

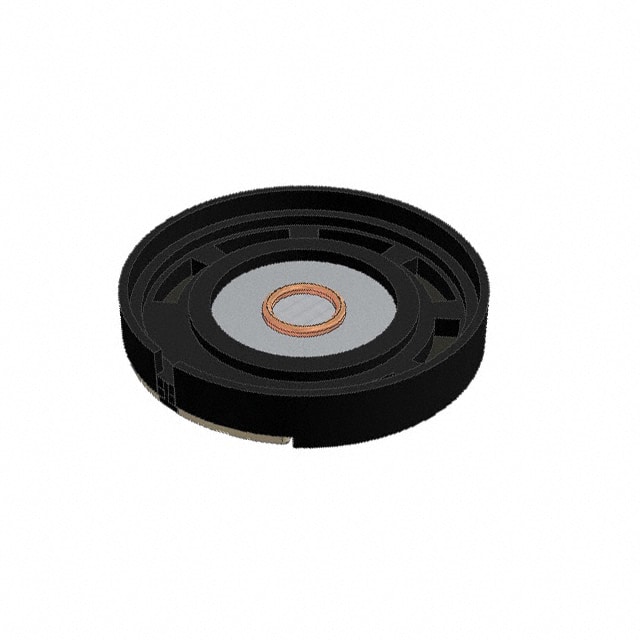

ADS02908MR-RSPEAKER 8OHM 100MW TOP PORT 88DB |
0 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 4 kHz | 650Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester | Ferrite | - | - | Solder Pads | 1.142" Dia (29.00mm) | 0.374" (9.50mm) |
|
AS02008MR-LW152-RSPEAKER 8OHM 500MW TOP PORT 86DB |
22 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 500Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | IEC 60601-1-8 | Wire Leads | 0.787" Dia (20.00mm) | 0.126" (3.20mm) |
|
SP-3020SSPEAKER 8OHM 1W TOP PORT 100DB |
0 |
|
Технический лист |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 800Hz | 8 Ohms | 100.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B N40 | - | - | Spring Type | 1.181" L x 0.787" W (30.00mm x 20.00mm) | 0.256" (6.50mm) |
|
E-2704-1SPEAKER 4OHM 1W TOP PORT 92DB |
0 |
|
Технический лист |
- | Tray | Active | Magnetic | Exciter | 700 Hz ~ 7 kHz | 700Hz | 4 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | - | - | Solder Pads | 1.035" Dia (26.30mm) | 0.492" (12.50mm) |
|

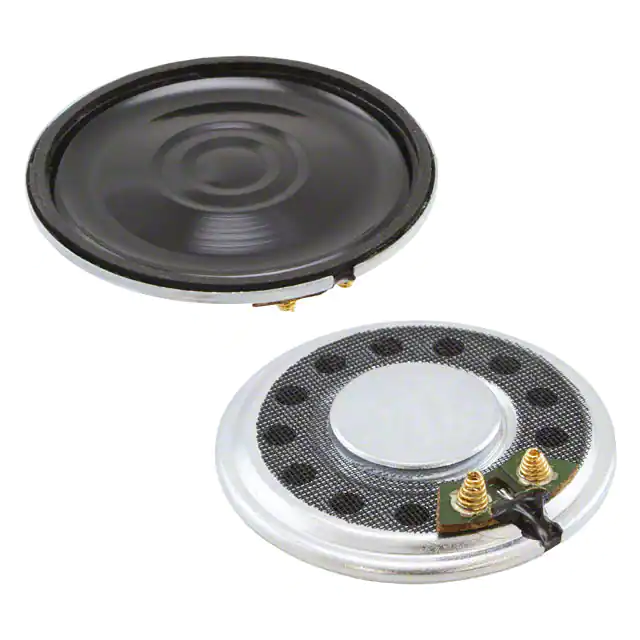

AS03608MR-SC-RSPEAKER 8OHM 1W TOP PORT 91DB |
0 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Spring Type | 1.417" Dia (36.00mm) | 0.193" (4.90mm) |
|
SC700308-1SPEAKER 8OHM 2W TOP PORT 100DB |
1 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 300Hz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 5 W | Top | Rectangular | Cloth | - | - | - | Solder Eyelet(s) | 2.756" L x 1.201" W (70.00mm x 30.50mm) | 0.906" (23.00mm) |
|
CMS-40504N-L152BSPEAKER 4OHM 2W TOP PORT 100DB |
0 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 7 kHz | 500Hz | 4 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) | 0.197" (5.00mm) |
|
AS02808MR-LW152-RSPEAKER 8OHM 1W TOP PORT 95DB |
0 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | IEC 60601-1-8 | Wire Leads | 1.102" Dia (28.00mm) | 0.217" (5.50mm) |
|

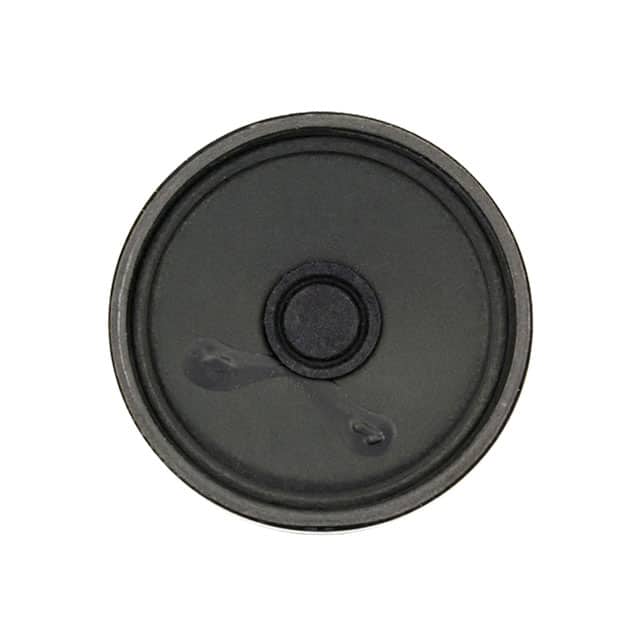

SP-5717SPEAKER 8OHM 250MW TOP PORT 92DB |
19 |
|
Технический лист |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 4 kHz | 400Hz | 8 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) | 0.669" (17.00mm) |
|
SM150808-8SPEAKER 8OHM 1W TOP PORT 93DB |
20 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | - | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|

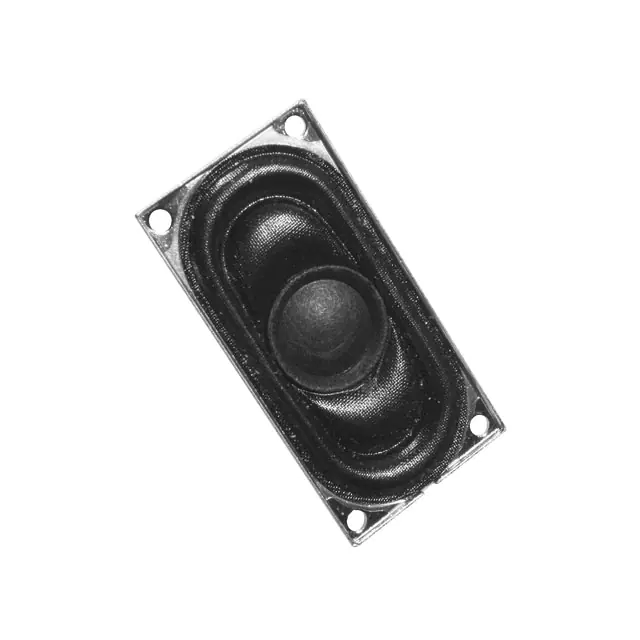

SC400408-1SPEAKER 8OHM 1W TOP PORT 89DB |
0 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 89.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Cloth | - | - | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.228" (5.80mm) |
|

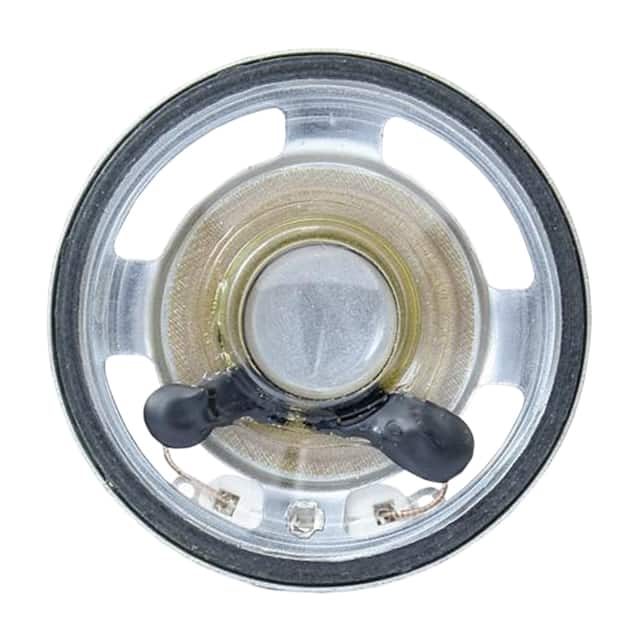

SP-4510-1SPEAKR 16OHM 300MW TOP PORT 82DB |
0 |
|
Технический лист |
SP | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 6 kHz | 700Hz | 16 Ohms | 82.00 | 1W/100mm | Sound Pressure Level (SPL) | 300 mW | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.772" Dia (45.00mm) | 0.394" (10.00mm) |
|
CDS-25148-L1006SPEAKER 8OHM 1.5W TOP PORT 73DB |
0 |
|
Технический лист |
CDS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 0.984" L x 0.551" W (25.00mm x 14.00mm) | 0.177" (4.50mm) |
|
SW350804-1SPEAKER 4OHM 2W TOP PORT 100DB |
0 |
|
Технический лист |
SW | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 4 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.378" L x 0.787" W (35.00mm x 20.00mm) | 0.228" (5.80mm) |
|
AS05008PR-WR-RSPEAKER 8OHM 1W TOP PORT 84DB |
0 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 5 kHz | 550Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.492" (12.50mm) |
