Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS05008MR-15SPEAKER 3.0W 8OHM 93DB 650HZ |
40 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 10 kHz | 650Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 2.5 W | 3 W | Top | Round | Polyethylene Naphthalate (PEN) | Ferrite | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.669" (17.00mm) |
|
|
RAQ-33985-B148RECEIVER |
69 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
K 70 8 OHMK 70 8 OHM |
31 |
|
Технический лист |
K 70 | Bulk | Active | - | General Purpose | 170 Hz ~ 20 kHz | 300Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) | 0.776" (19.70mm) |
|
|
RAQ-35091-000RECEIVER |
100 |
|
Технический лист |
RAQ | Bulk | Active | Magnetic | Receiver | - | - | 74 Ohms | - | - | - | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - | - |
|
|
UA-C0503-3TMEMS SPEAKER 2-WAY TWEETER 5MM |
62 |
|
Технический лист |
Conamara | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RAP-33861-000RECEIVER |
100 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
K 28.40 H - 8 OHMSPEAKER 8OHM 2W 2.7X1.3IN |
48 |
|
Технический лист |
- | Box | Active | Magnetic | General Purpose | 390 Hz ~ 20 kHz | 580Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | - | Top | Oval, Rectangular Frame | Paper | Nd | - | - | Wire Leads | 2.421" L x 24.921" W (61.50mm x 633.00mm) | 0.630" (16.00mm) |
|
|
BF 30 R - 4 OHMSPEAKER 4OHM 2W 1.2IN |
34 |
|
Технический лист |
- | Box | Active | Magnetic | General Purpose | 240 Hz ~ 20 kHz | 380Hz | 4 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | - | Top | Round | - | Nd | - | - | Solder Eyelet(s) | 1.220" Dia (31.00mm) | 0.709" (18.00mm) |
|
|
FR 8 JS - 8 OHMSPEAKER 8OHM 10W TOP PORT 83DB |
18 |
|
Технический лист |
- | Bulk | Active | Magnetic | - | 80 Hz ~ 20 kHz | 130Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Polypropylene (PP) | - | IP64 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | - | 1.457" (37.00mm) |
|
|
AS05404PSSPEAKER 12.0W 4OHM 82DB 115HZ |
34 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 115 Hz ~ 20 kHz | 115Hz | 4 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round, Rectangular Frame | Paper | Nd-Fe-B | - | - | Quick Connect | 2.126" L x 2.087" W (54.00mm x 53.00mm) | 1.445" (36.70mm) |
|
|
BF 32 S WP - 8 OHMSPEAKER 8OHM 2W 1.3IN |
18 |
|
Технический лист |
- | Box | Active | Magnetic | General Purpose | 145 Hz ~ 20 kHz | 280Hz | 8 Ohms | 88.00 | 100mW/1m | Sound Pressure Level (SPL) | 2 W | - | Top | Round, Square Frame | - | Nd | Waterproof | - | Solder Pads | 1.260" L x 1.260" W (32.00mm x 32.00mm) | 0.559" (14.20mm) |
|
WBFK-30019-000SPEAKER 15.2OHM TOP PORT 91DB |
42 |
|
Технический лист |
WBFK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 7.7 kHz | - | 15.2 Ohms | 91.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.197" L x 0.108" W (5.00mm x 2.73mm) | 0.260" (6.60mm) |
|

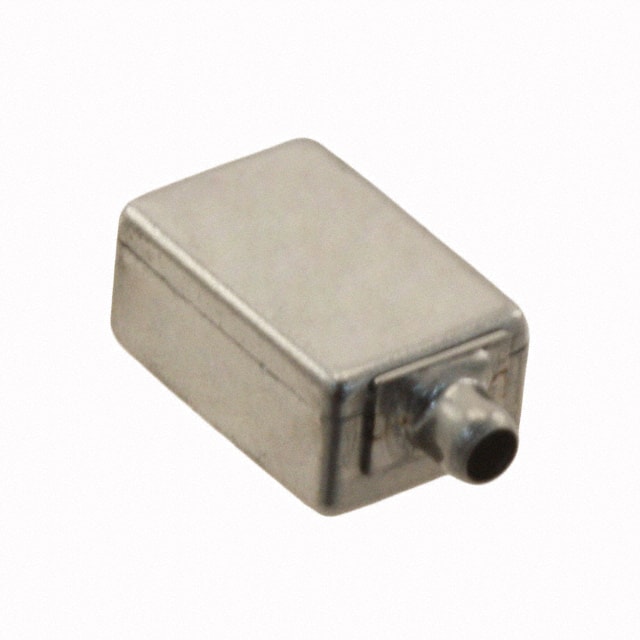

ED-21913-000SPEAKER 1.45 KOHM TOP PORT 106DB |
33 |
|
Технический лист |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 1.45 kOhms | 106.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|

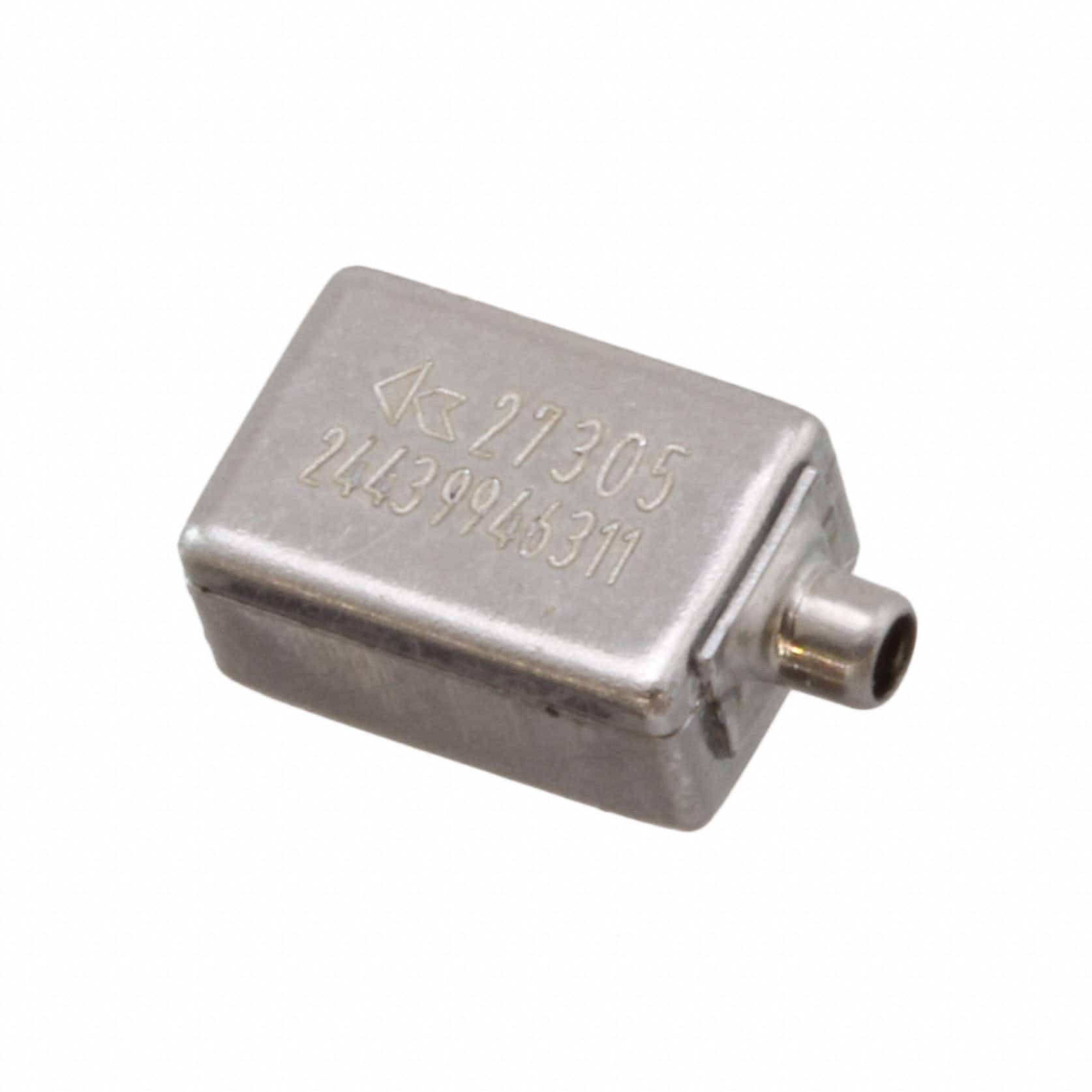

ED-27305-000SPEAKER SIDE PORT RECTANGULAR |
84 |
|
Технический лист |
ED | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5000 Hz | - | - | - | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | - | - |
|
|
SL 87 FS - 8 OHMSPEAKER 8OHM 10W 3.3IN |
42 |
|
Технический лист |
- | Box | Active | Magnetic | General Purpose | 100 Hz ~ 17 kHz | 185Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | - | Top | Round | Plastic | Ferrite | - | - | Solder Eyelet(s) | 3.366" Dia (85.50mm) | 1.126" (28.60mm) |
|
|
FR 4X6 X - 4 OHMSPEAKER 4OHM 15W TOP PORT 87DB |
20 |
|
Технический лист |
- | Bulk | Active | - | Full Range | 75 Hz ~ 20 kHz | 110Hz | 4 Ohms | 87.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 30 W | Top | Round, Rectangular Frame | - | - | - | - | Quick Connect | - | 2.055" (52.20mm) |
|
|
FRS 7 XWP - 8 OHMSPEAKER 8OHM 10W 2.5IN |
24 |
|
Технический лист |
- | Box | Active | - | General Purpose | 100 Hz ~ 20 kHz | 100Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | - | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 5.748" Dia x 2.618" L (146.00mm x 66.50mm) | 1.795" (45.60mm) |
|
|
ED-23146-000SPEAKER 360OHM TOP PORT 106DB |
57 |
|
Технический лист |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 360 Ohms | 106.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
BK-29725-000SPEAKER 285OHM TOP PORT 118DB |
96 |
|
- |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 285 Ohms | 118.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.310" (7.87mm) |
|
|
ED-30761-000SPEAKER SMD |
99 |
|
Технический лист |
ED | Tray | Active | Magnetic | Receiver, Balanced Armature | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
