Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-181325-078SP-67SPEAKER 8OHM 700MW TOP PORT 93DB |
0 |
|
Технический лист |
CMS | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|
SP-2415SPEAKER 8OHM 800MW TOP PORT 95DB |
92 |
|
Технический лист |
SP | Tray | Active | Magnetic | General Purpose | 3 kHz ~ 5 kHz | 1kHz | 8 Ohms | 95.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | - | 0.173" (4.40mm) |
|
SP-2014LSPEAKER 8OHM 700MW TOP PORT 90DB |
53 |
|
Технический лист |
SP | Tray | Active | Magnetic | General Purpose | 3 kHz ~ 5 kHz | 1.05kHz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.551" W (20.00mm x 14.00mm) | 0.118" (3.00mm) |
|

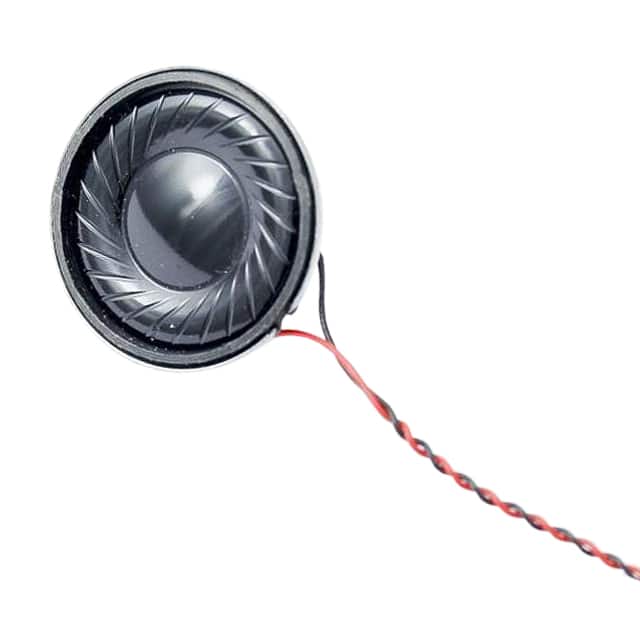

SP-2305WSPEAKER 8OHM 1W TOP PORT 87DB |
46 |
|
Технический лист |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 750Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | 0.906" Dia (23.00mm) | 0.197" (5.00mm) |
|
SP-1609S-2SPEAKER 8OHM 500MW TOP PORT 82DB |
65 |
|
Технический лист |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | - | 8 Ohms | 82.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.197" (5.00mm) |
|
SP-1813-2SPEAKER 8OHM 800MW TOP PORT 90DB |
100 |
|
Технический лист |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 4 kHz | 850Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1.1 W | Top | Oval | Polyethylene Naphthalate (PEN) | - | - | - | Wire Leads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.177" (4.50mm) |
|
AS01808MS-SC18-WP-RSPEAKER 8OHM 500MW TOP PORT 88DB |
61 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | - | Sensitivity | 500 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|
AS01516MR-2-RSPEAKR 16OHM 500MW TOP PORT 86DB |
75 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 850Hz | 16 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) | 0.146" (3.70mm) |
|
AS01608MS-SC16-WP-RSPEAKER 8OHM 700MW TOP PORT 90DB |
80 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 950Hz | 8 Ohms | 90.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
AS01608MS-SP9-WP-RSPEAKER 8OHM 700MW TOP PORT 89DB |
89 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.098" (2.50mm) |
|
PSR30F64SKSPEAKR 64OHM 100MW TOP PORT 78DB |
66 |
|
Технический лист |
PSR | Bulk | Active | Magnetic | General Purpose | 430 Hz ~ 20 kHz | 430Hz | 64 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.169" Dia (29.70mm) | 0.228" (5.80mm) |
|
SP-2509SPEAKER 8OHM 1W TOP PORT 84DB |
80 |
|
Технический лист |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 550Hz | 8 Ohms | 84.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.354" W (25.00mm x 9.00mm) | 0.118" (3.00mm) |
|
AS01608MS-SC9-WP-RSPEAKER 8OHM 700MW TOP PORT 89DB |
42 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.098" (2.50mm) |
|

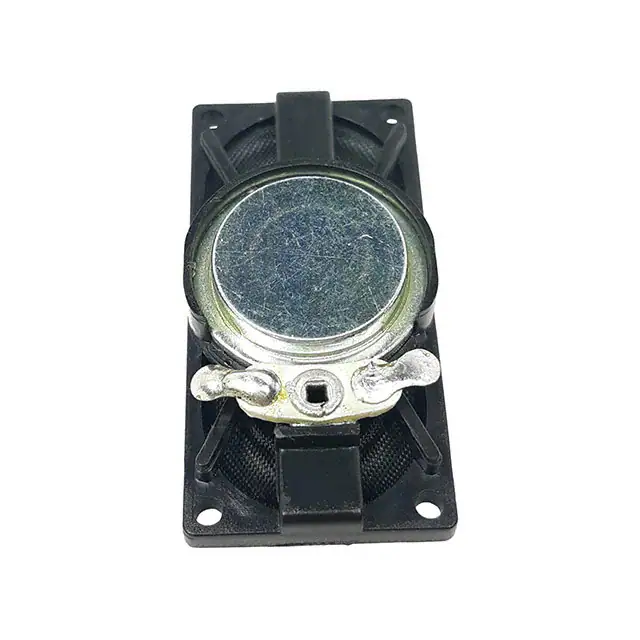

SP-4009YSPEAKER 8OHM 1W TOP PORT 88DB |
38 |
|
Технический лист |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 12 kHz | 600Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.331" (8.40mm) |
|
AS01308MR-5-RSPEAKR 8OHM 400MW SIDE PORT 89DB |
39 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1.05kHz | 8 Ohms | 89.00 | 400mW/100mm | Sound Pressure Level (SPL) | 400 mW | 600 mW | Side | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.512" Dia (13.00mm) | 0.094" (2.40mm) |
|

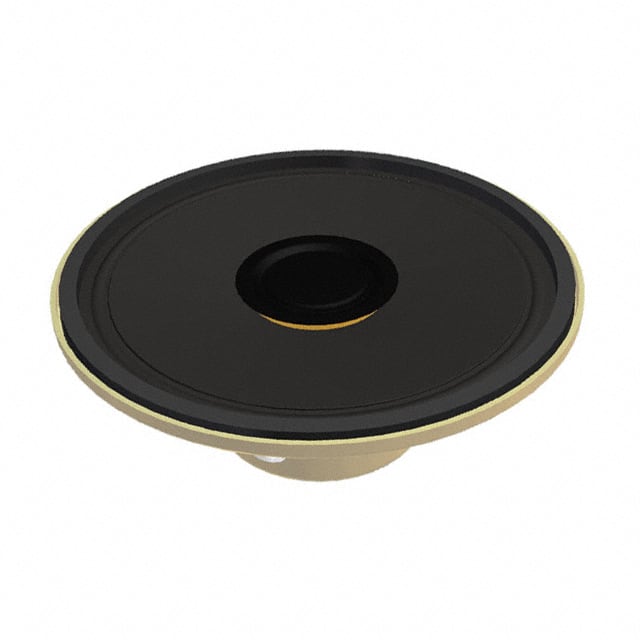

AS05008PR-6-RSPEAKER 8OHM 400MW TOP PORT 85DB |
53 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 5 kHz | 500Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 400 mW | 700 mW | Top | Round | Paper | N35 | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.728" (18.50mm) |
|
AS01606MS-SC16-WP-RSPEAKER 6OHM 940MW TOP PORT 91DB |
44 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 6 Ohms | 91.00 | - | Sensitivity | 940 mW | 1.2 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
SW121108-1SPEAKER 8OHM 250MW TOP PORT 81DB |
49 |
|
Технический лист |
SW | Bulk | Active | Magnetic | General Purpose | 1.1 kHz ~ 10 kHz | 1.1kHz | 8 Ohms | 81.00 | 250mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.083" (2.10mm) |
|
WSP-5008-59SPEAKER 8OHM 2W TOP PORT 91DB |
63 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 720 Hz ~ 5 kHz | 720Hz | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.484" (12.30mm) |
|
CES-20134-088PMASPEAKER 8OHM 800MW TOP PORT 91DB |
90 |
|
Технический лист |
CES | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787" L x 0.633" W (20.00mm x 16.09mm) | 0.192" (4.87mm) |
