Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
931143" VOICE RANGE SPEAKER |
198 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | General Purpose | 250 Hz ~ 7 kHz | 341Hz | 8 Ohms | 87.00 | - | Sound Pressure Level (SPL) | - | 12 W | Top | Round, Square Frame | Cloth | Ferrite | Waterproof | - | Quick Connect | 3.012" L x 3.012" W (76.51mm x 76.51mm) | 1.260" (32.00mm) |
|
|
930042" KEVLAR WIDE RANGE SPEAKER |
194 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | Full Range | 140 Hz ~ 18 kHz | 167Hz | 8 Ohms | 80.00 | - | Sound Pressure Level (SPL) | 10 W | 20 W | Top | Round, Square Frame | - | Nd-Fe-B | - | - | Quick Connect | 2.441" L x 2.441" W (62.00mm x 62.00mm) | 1.697" (43.10mm) |
|
|
930315.25" NEO-RITE WOOFER |
198 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | Woofer | 40 Hz ~ 7.5 kHz | 56Hz | 4 Ohms | 87.00 | - | Sound Pressure Level (SPL) | 50 W | 100 W | Top | Round | Polypropylene (PP) | Nd-Fe-B | - | - | Quick Connect | 5.272" Dia (133.91mm) | 2.590" (65.79mm) |
|
|
TEBM54C30-8FBALANCED MODE RADIATOR 72x72mm |
106 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 120 Hz ~ 40000 Hz | 125Hz | 8 Ohms | 85.50 | 1W/1m | Sensitivity | 20 W | - | Top | Square | Paper | Nd-Fe-B | - | - | - | 2.835" L x 2.835" W (72.00mm x 72.00mm) | 1.378" (35.00mm) |
|
|
930734 KEVLAR MID-RANGE SPEAKER |
199 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | General Purpose | 100 Hz ~ 8.5 kHz | 130Hz | 8 Ohms | 92.00 | - | Sound Pressure Level (SPL) | 40 W | 80 W | Top | Round, Square Frame | - | Ferrite | - | - | Quick Connect | 4.094" L x 4.094" W (103.99mm x 103.99mm) | 2.354" (59.79mm) |
|
|
930201" CONICAL WAVEGUIDE TWEETER |
197 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | General Purpose | 20 Hz ~ 700 kHz | 735Hz | 4 Ohms | 87.00 | - | Sound Pressure Level (SPL) | 20 W | 40 W | Top | Round | - | Nd-Fe-B | - | - | Quick Connect | 3.287" Dia (83.49mm) | 1.890" (48.00mm) |
|
|
931124" VOICE RANGE SPEAKER |
196 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | General Purpose | 180 Hz ~ 6 kHz | 408Hz | 8 Ohms | 91.00 | - | Sound Pressure Level (SPL) | - | 8 W | Top | Round, Square Frame | Cloth | Ferrite | Waterproof | - | Quick Connect | 4.094" L x 4.094" W (103.99mm x 103.99mm) | 1.431" (36.35mm) |
|
|
MP-11034" PIEZOELECTRIC SPEAKER |
189 |
|
Технический лист |
- | Tape & Box (TB) | Active | Piezo | Full Range | 450 Hz ~ 20 kHz | 500Hz | 1 kOhms | 80.00 | - | Sound Pressure Level (SPL) | - | 100 W | Top | Round | Cloth | - | - | - | Quick Connect | 3.709" Dia (94.21mm) | 0.585" (14.86mm) |
|
|
930093.3" HIGH POWER MID-BASS SPEAKER |
196 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | General Purpose | 125 Hz ~ 20 kHz | 155Hz | 8 Ohms | 84.00 | - | Sound Pressure Level (SPL) | 20 W | 40 W | Top | Round, Square Frame | Polypropylene (PP) | Nd-Fe-B | - | - | Quick Connect | 3.278" L x 3.278" W (83.26mm x 83.26mm) | 1.783" (45.29mm) |
|
SPK-PZ94SPEAKER 82DB PIEZO ROUND |
113 |
|
Технический лист |
- | Box | Active | Piezo | Full Range | 500 Hz ~ 20 kHz | - | - | 82.00 | 1W/1M | Sound Pressure Level (SPL) | - | 50 W | - | Round | Cloth, Phenolic Treated | Piezo Ceramic | - | - | Fast-On Terminals | 3.701" Dia (94.00mm) | 0.591" (15.00mm) |
|
|
CS14-00P100-04-1PLANAR 30OHM .01W 107DB |
39 |
|
Технический лист |
- | Box | Active | Magnetic | - | 20 Hz ~ 20 kHz | 1kHz | 30 Ohms | 107.00 | 1mW | Sound Pressure Level (SPL) | 5 mW | 10 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) + Polyurethane (PU) | Nd-Fe-B | - | - | Solder Pads | 0.573" Dia (14.55mm) | 0.192" (4.88mm) |
|
|
930744" OUTDOOR WIDE RANGE SPEAKER |
200 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | Full Range | 10 Hz ~ 100 kHz | 144Hz | 4 Ohms | 88.00 | - | Sound Pressure Level (SPL) | 24 W | 48 W | Top | Round, Square Frame | Polypropylene (PP) | Ferrite | - | - | Quick Connect | 4.039" L x 4.039" W (102.59mm x 102.59mm) | 2.098" (53.29mm) |
|
|
931006.5 HOME/AUTO MID-WOOFER |
193 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | Woofer | 10 Hz ~ 60 kHz | 70Hz | 4 Ohms | 86.00 | - | Sound Pressure Level (SPL) | 50 W | 100 W | Top | Round | Polypropylene (PP) | Ferrite | - | - | Quick Connect | 6.500" Dia (165.10mm) | - |
|
|
700943.3" USB-POWERED SPEAKER W/ AMP |
155 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | General Purpose | 350 Hz ~ 9 kHz | 341Hz | 8 Ohms | 84.00 | - | Sound Pressure Level (SPL) | - | 8 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 4.230" L x 3.350" W (107.44mm x 85.09mm) | 1.351" (34.32mm) |
|
|
88104-B5.5" TWO-WAY HORN SPEAKER |
197 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | General Purpose | 500 Hz ~ 7 kHz | 341Hz | 8 Ohms | 107.00 | - | Sound Pressure Level (SPL) | - | 80 W | Top | Round, Square Frame | Cloth | Ferrite | - | - | Wire Leads | 5.500" L x 5.500" W (139.70mm x 139.70mm) | 4.500" (114.30mm) |
|
|
930448 PREMIUM WOOFER |
199 |
|
- |
- | Tape & Box (TB) | Active | Magnetic | Woofer | 35 Hz ~ 4 kHz | 35Hz | 4 Ohms | 92.00 | - | Sound Pressure Level (SPL) | 75 W | 150 W | Top | Round | Polypropylene (PP) | Ferrite | - | - | Quick Connect | 8.346" Dia (211.99mm) | 4.067" (103.30mm) |
|

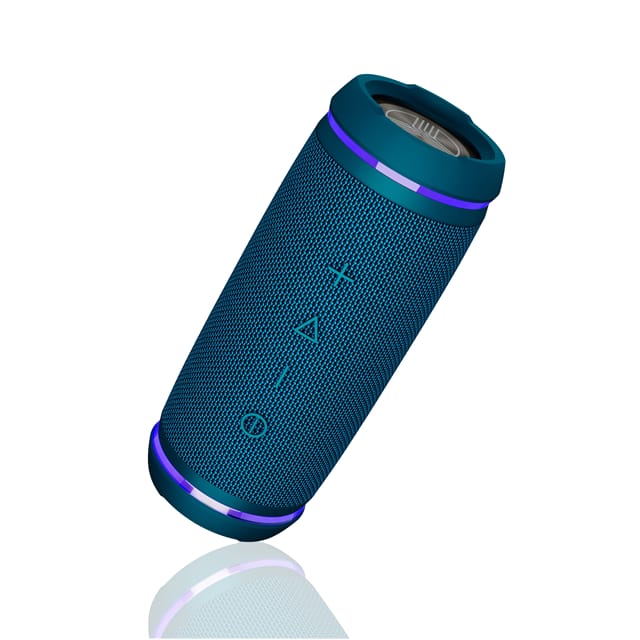

HD77BLSPEAKER CYLIND PREM PORTABLE |
242 |
|
Технический лист |
- | Retail Package | Active | - | Subwoofer | 80 Hz ~ 16 kHz | - | - | - | - | - | - | 25 W | User Defined | Cylindrical | - | - | IP66 - Dust Tight, Water Resistant, Waterproof | - | Wireless | 7.323" L x 3.071" W (186.00mm x 78.00mm) | 3.071" (78.00mm) |
|

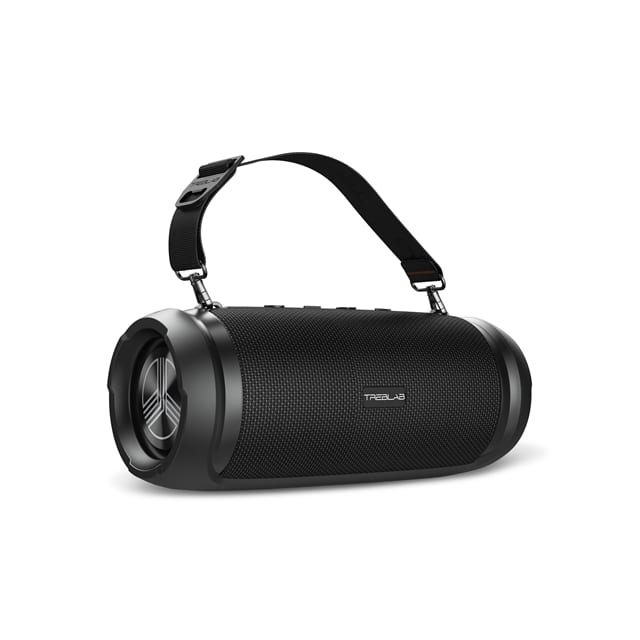

HD-MAXSPEAKER RND DEEP BASS WIRELESS |
52 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | 80 Hz ~ 16 kHz | - | - | - | - | - | - | - | User Defined | Round | - | - | Water Resistant | - | None | 12.400" L x 4.720" W (314.96mm x 119.89mm) | 4.720" (119.89mm) |
|
KWS433+SPEAKER SIDE PORT RECTANGULAR |
29 |
|
Технический лист |
- | Retail Package | Active | - | General Purpose | - | - | - | - | - | - | - | - | Side | Rectangular | - | - | - | - | - | 10.160" L x 5.160" W (258.06mm x 131.06mm) | 2.760" (70.10mm) |
|
|
9305310 LEGACY WOOFER |
200 |
|
Технический лист |
- | Tape & Box (TB) | Active | Magnetic | Woofer | 16 Hz ~ 4 kHz | 28Hz | 4 Ohms | 92.00 | - | Sound Pressure Level (SPL) | 50 W | 100 W | Top | Round | Paper | Ferrite | - | - | Quick Connect | 10.070" Dia (255.78mm) | 4.770" (121.16mm) |
