Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS15-01P280-02-1SPEAKER 10.2OHM 1W 85DB |
955 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 2.8kHz | 10.2 Ohms | 85.00 | 100mW/500mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.276" W (15.00mm x 7.00mm) | 0.079" (2.00mm) |
|
28A1050-32B0428SPEAKR 32OHM 500MW TOP PORT 90DB |
638 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 5.9 kHz | 800Hz | 32 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N35 | - | - | Wire Leads with Connector | 1.004" Dia (25.50mm) | 0.283" (7.20mm) |
|
|
OWS-203657TA-8BSPEAKER 8 OHM 2W 105DB TOP PORT |
488 |
|
Технический лист |
- | Tray | Active | Magnetic | Microspeaker | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 105.00 | 2W/10cm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Oval | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.425" L x 0.807" W (36.20mm x 20.50mm) | 0.213" (5.40mm) |
|
|
OWS-151540S-8SPEAKER 8OHM 800MW TOP PORT 92DB |
562 |
|
Технический лист |
- | Tape & Reel (TR) | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 800Hz | 8 Ohms | 92.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Plastic | Nd-Fe-B | - | - | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.157" (4.00mm) |
|
CMS-151125-076L100BSPEAKER 6OHM 700MW TOP PT 92.5DB |
481 |
|
- |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|
CS13-00P20-03-1XSPEAKR 32OHM 10MW TOP PORT 110DB |
810 |
|
Технический лист |
- | Tray | Active | Magnetic | Receiver | 20 Hz ~ 20 kHz | 200Hz | 32 Ohms | 110.00 | 1mW | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Round | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.512" Dia (13.00mm) | 0.138" (3.50mm) |
|
NS50D-0802-L82-01SPEAKER 8OHM 2W 200HZ-10KHZ 83DB |
426 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 10 kHz | 220Hz | 8 Ohms | 83.00 | - | Sound Pressure Level (SPL) | 2 W | 3 W | - | Round | Paper, Polyurethane (PU) | Iron Oxide | - | - | Terminal Block | 2.067" Dia (52.50mm) | 1.012" (25.70mm) |
|
SR900R-PCSPEAKER 8OHM 100MW TOP PORT 72DB |
1,600 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 3.5 kHz | 850Hz | 8 Ohms | 72.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | PC Pins | 0.906" Dia (23.00mm) | 0.394" (10.00mm) |
|
CS28-02W220-05-1XSPEAKER 8OHM 0.5W TOP PORT 103DB |
1,854 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 1.76 kHz ~ 10 kHz | 2.2kHz | 8 Ohms | 103.00 | 500mW/100mm | Sound Pressure Level (SPL) | 0.5 W | 1 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.102" Dia (28.00mm) | 0.220" (5.60mm) |
|
28A10508BIP0428SPEAKER 8OHM 500MW TOP PORT 90DB |
750 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 5.9 kHz | 800Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.004" Dia (25.50mm) | 0.283" (7.20mm) |
|
S200RASPEAKER 8OHM 300MW TOP PORT 90DB |
1,500 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 5 kHz | 450Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Paper | Rare Earth | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.728" (18.50mm) |
|
N40M-32001-02-45SPEAKER 32OHM 10MW 126DB |
2,142 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 20 Hz ~ 20 kHz | 110Hz | 32 Ohms | 126.00 | - | Sound Pressure Level (SPL) | 10 mW | 20 mW | - | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) | 0.297" (7.54mm) |
|
|
CAC22-01W150-07-1XCHAMBER ASSEMBLY |
998 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1.5kHz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.866" Dia (22.00mm) | 0.283" (7.20mm) |
|
CMS-16098-30-SPSPEAKER 8OHM 700MW TOP PT 87.5DB |
0 |
|
Технический лист |
CMS | Bulk | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 8 Ohms | 87.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
CS18-01P95-04-1XSPEAKER 8OHM 1W TOP PORT 100DB |
930 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 8 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.177" (4.50mm) |
|

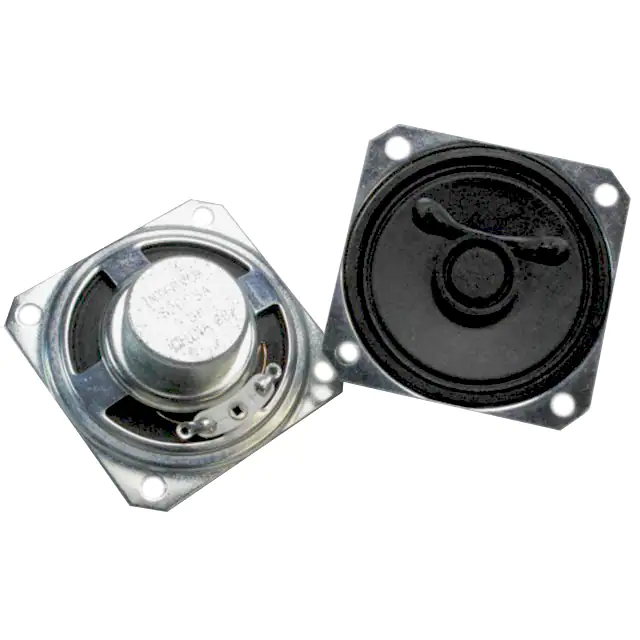

S200SASPEAKER 8OHM 200MW TOP PORT |
1,000 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 3.4 kHz | 400Hz | 8 Ohms | - | - | - | 200 mW | 500 mW | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.035" L x 2.035" W (51.70mm x 51.70mm) | 0.701" (17.80mm) |
|
|
CS30-02P65-04-1XSPEAKER 4OHM 2W 90DB |
988 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 20 kHz | 650Hz | 4 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IPX7 | - | Solder Pads | 1.181" Dia (30.00mm) | 0.177" (4.50mm) |
|
|
CS28-01W75-06-1XSPEAKER IP67 8OHM 1.5W 101DB |
1,049 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 600 Hz ~ 7 kHz | 750Hz | 8 Ohms | 101.00 | 1W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Connector | 1.102" Dia (28.00mm) | 0.220" (5.60mm) |
|
CMR-150632-2-SPSPEAKR 32OHM 20MW TOP PORT 110DB |
0 |
|
Технический лист |
CMR | Bulk | Obsolete | Magnetic | Receiver | 300 Hz ~ 3.4 kHz | 300Hz | 32 Ohms | 110.00 | 1mW/100mm | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.087" (2.20mm) |
|
RFR576TI18-ASSYSPEAKER 8OHM 500MW TOP PORT 92DB |
800 |
|
Технический лист |
- | Box | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | Ferrite | - | - | Wire Leads with Connector | 2.244" Dia (57.00mm) | 0.787" (20.00mm) |
