Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS01208MS-SC12-WP-RSPEAKER 8OHM 300MW TOP PT 87.5DB |
199 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 800 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 87.50 | 100mm | Sensitivity | 300 mW | 500 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP68 - Dust Tight, Waterproof | - | Spring Type | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.122" (3.10mm) |
|
CES-703316-28PMSPEAKER 8OHM 2W TOP PORT 102DB |
375 |
|
Технический лист |
CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 2.756" L x 1.299" W (70.00mm x 33.00mm) | 0.630" (16.00mm) |
|
CES-391715-18PM-67SPEAKER 8OHM 1W TOP PORT 92DB |
334 |
|
Технический лист |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 880 Hz ~ 6 kHz | 1.1kHz | 8 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.260" L x 0.689" W (32.00mm x 17.50mm) | 0.618" (15.70mm) |
|
K 36 WP - 50 OHMSPEAKER 50OHM 1W TOP PORT 77DB |
216 |
|
Технический лист |
Miniature Speaker | Bulk | Active | - | General Purpose | 300 Hz ~ 20 kHz | 550Hz | 50 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.417" Dia (36.00mm) | 0.236" (6.00mm) |
|
SM600804-1SPEAKER 4OHM 2W TOP PORT 104DB |
1,360 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 800Hz | 4 Ohms | 104.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | Waterproof | - | Wire Leads | - | 0.720" (18.30mm) |
|
K 40 - 50 OHMSPEAKER 50OHM 1W TOP PORT 83DB |
468 |
|
Технический лист |
Miniature Speaker | Bulk | Active | - | General Purpose | 350 Hz ~ 6 kHz | 520Hz | 50 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.575" Dia (40.00mm) | 0.177" (4.50mm) |
|
AS04004PO-RSPEAKER 4OHM 2W TOP PORT 86DB |
696 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 370 Hz ~ 20 kHz | 370Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.118" W (40.00mm x 28.40mm) | 0.512" (13.00mm) |
|
AS05004PS-2-F-WP-RSPEAKER 4OHM 3W TOP PORT 80DB |
770 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 19 kHz | 200Hz | 4 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Square | Copper, Paper | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | - | 1.969" L x 1.969" W (50.00mm x 50.00mm) | 0.728" (18.50mm) |
|
SW330204-1SPEAKER 4OHM 2.5W TOP PORT 99DB |
1,050 |
|
Технический лист |
Dynamis, SW | Tray | Active | Magnetic | General Purpose | 280 Hz ~ 20 kHz | 280Hz | 4 Ohms | 99.00 | 100mm | Sound Pressure Level (SPL) | 2.5 W | 3 W | Top | Round | Aluminum (AI) | - | IP67 - Dust Tight, Waterproof | - | Solder Eyelet(s) | - | 0.638" (16.20mm) |
|
|
AS04004MR-F-WP-RSPEAKER 4OHM 3W TOP PORT 81DB |
558 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 160 Hz ~ 20 kHz | 160Hz | 4 Ohms | 81.00 | 1W/100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | Paper, Rubber | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) | 0.807" (20.50mm) |
|
K 36 MO - 8 OHMSPEAKER 8OHM 1W TOP PORT 77DB |
214 |
|
Технический лист |
Miniature Speaker | Bulk | Active | - | General Purpose | 300 Hz ~ 20 kHz | 550Hz | 8 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.417" Dia (36.00mm) | 0.236" (6.00mm) |
|

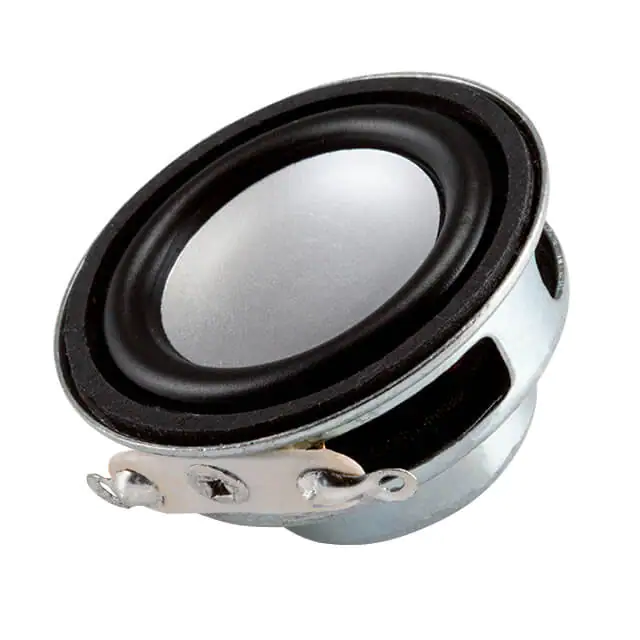

CMS-3150-26SPSPEAKER 6OHM 2W TOP PORT 97DB |
129 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 248 Hz ~ 20 kHz | 310Hz | 6 Ohms | 97.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Aluminum, Polyurethane (PU) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.220" Dia (31.00mm) | 0.669" (17.00mm) |
|

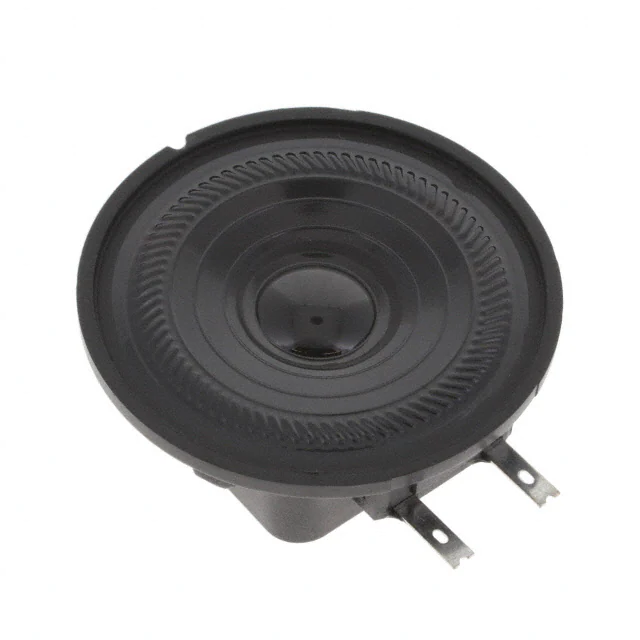

K 50 WPT - 8 OHMSPEAKER 8OHM 2W TOP PORT 84DB |
2,534 |
|
Технический лист |
Miniature Speaker | Bulk | Active | - | General Purpose | 180 Hz ~ 17 kHz | 300Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Quick Connect | 1.969" Dia (50.00mm) | 0.709" (18.00mm) |
|

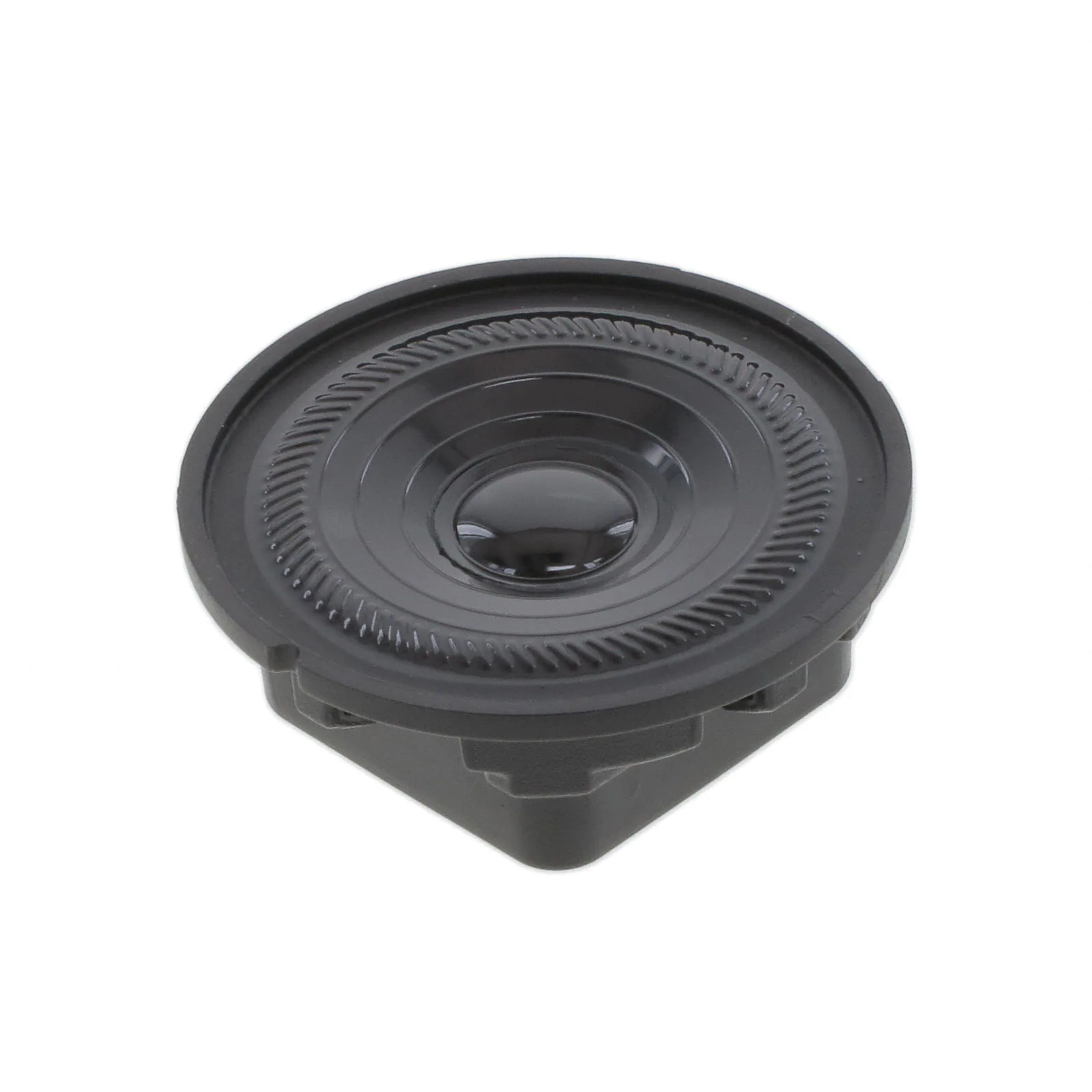

K 50 WP - 50 OHMSPEAKER 50OHM 2W TOP PORT 84DB |
308 |
|
Технический лист |
Miniature Speaker | Bulk | Active | - | General Purpose | 180 Hz ~ 17 kHz | 300Hz | 50 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Quick Connect | 1.969" Dia (50.00mm) | 0.709" (18.00mm) |
|
SM450208-2SPEAKER 8OHM 3W TOP PORT 88DB |
1,721 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 10 kHz | 200Hz | 8 Ohms | 88.00 | 100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | - | 0.768" (19.50mm) |
|
SM450204-1SPEAKER 4OHM 3W TOP PORT 88DB |
1,139 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 10 kHz | 200Hz | 4 Ohms | 88.00 | 100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | - | 0.768" (19.50mm) |
|
K 23 SQ - 8 OHMSPEAKER 8OHM 500MW TOP PORT 74DB |
967 |
|
Технический лист |
Miniature Speaker | Bulk | Active | - | General Purpose | 300 Hz ~ 19 kHz | 530Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.335" (8.50mm) |
|
K 64 WP - 50 OHMSPEAKER 50OHM 2W TOP PORT 86DB |
399 |
|
Технический лист |
Miniature Speaker | Bulk | Active | Magnetic | General Purpose | 200 Hz ~ 15 kHz | 300Hz | 50 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Quick Connect | 2.520" Dia (64.00mm) | 0.760" (19.30mm) |
|
TA6FC00-04SPEAKR 4.08OHM 10W TOP PT 82.4DB |
105 |
|
Технический лист |
TA | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 177.55Hz | 4.08 Ohms | 82.40 | 1W/1M | Half Space Sensitivity | 10 W | - | Top | Round, Square Frame | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 2.323" L x 2.323" W (59.00mm x 59.00mm) | 1.371" (34.83mm) |
|

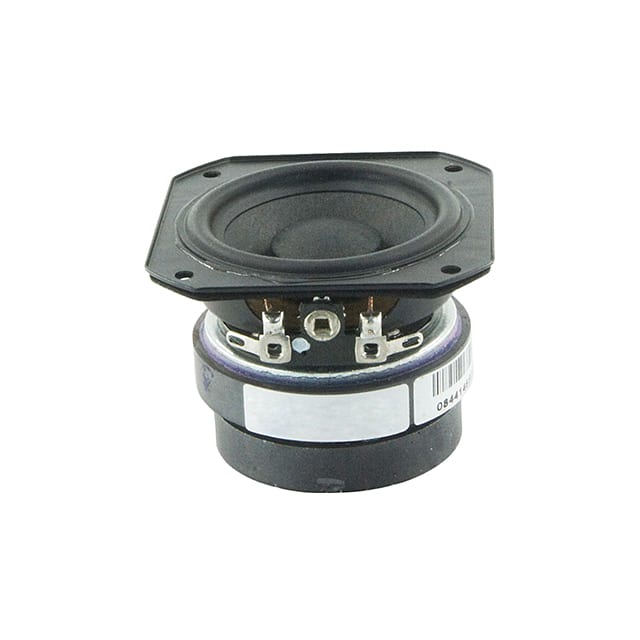

TC6FD02-04SPEAKR 4.17OHM 15W TOP PORT 84DB |
1,947 |
|
Технический лист |
TC | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 10 kHz | 171.16Hz | 4.17 Ohms | 84.00 | 1W/1M | Half Space Sensitivity | 15 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.323" L x 2.323" W (59.00mm x 59.00mm) | 1.776" (45.10mm) |
