Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RC-1206SPEAKR 32OHM 10MW TOP PORT 110DB |
447 |
|
Технический лист |
RC | Tray | Active | Magnetic | Receiver | 200 Hz ~ 3.4 kHz | - | 32 Ohms | 110.00 | - | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B N42 | - | - | Wire Leads | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.122" (3.10mm) |
|

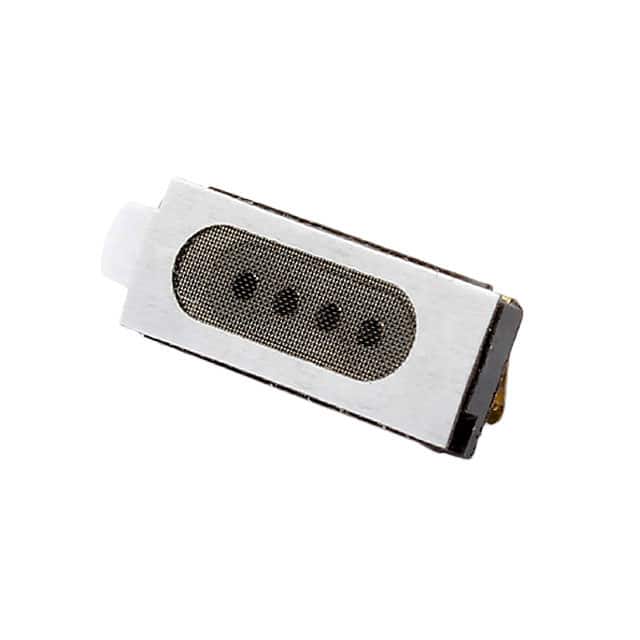

RC-1206S-1SPEAKR 32OHM 10MW TOP PORT 110DB |
241 |
|
Технический лист |
RC | Tray | Active | Magnetic | Receiver | 200 Hz ~ 3.4 kHz | - | 32 Ohms | 110.00 | - | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B N42 | - | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.236" (6.00mm) |
|
SP-1813SPEAKER 8OHM 500MW TOP PORT 89DB |
232 |
|
Технический лист |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 900Hz | 8 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.185" (4.70mm) |
|
SP-1511L-1SPEAKER 8OHM 500MW TOP PORT 82DB |
216 |
|
Технический лист |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 850Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.122" (3.10mm) |
|
CMS-16093-076SP-67SPEAKER 6OHM 700MW TOP PORT 90DB |
5,717 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
CMS-151125-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,471 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|

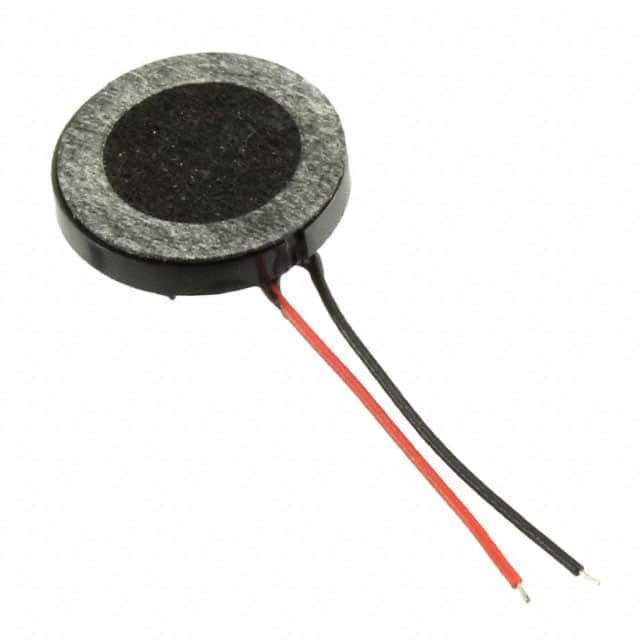

SP-1304SPEAKR 32OHM 200MW TOP PORT 88DB |
105 |
|
Технический лист |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 900Hz | 32 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.512" Dia (13.00mm) | 0.169" (4.30mm) |
|
CMS-181325-078L100SPEAKER 8OHM 700MW TOP PORT 93DB |
2,219 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|
CMS-151125-076S-67SPEAKER 6OHM 700MW TOP PT 92.5DB |
7,332 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|
CMS-16093-076S-67SPEAKER 6OHM 700MW TOP PORT 90DB |
2,393 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|

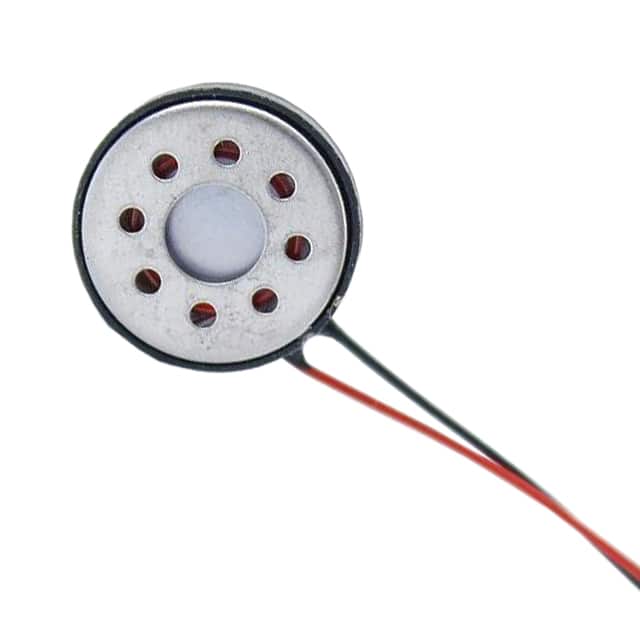

SP-1303LSPEAKER 8OHM 500MW TOP PORT 87DB |
160 |
|
Технический лист |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1.1kHz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.512" Dia (13.00mm) | 0.130" (3.30mm) |
|

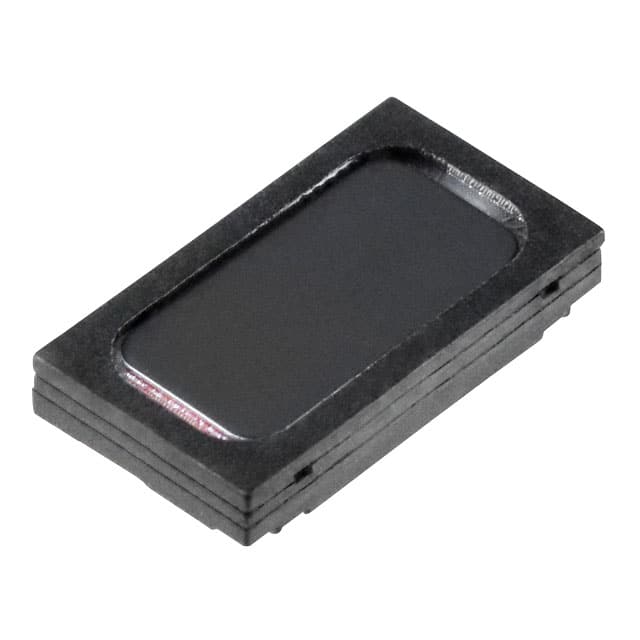

CMS-160903-16SPSPEAKER 6OHM 940MW TOP PORT 91DB |
419 |
|
Технический лист |
CMS | Box | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 850Hz | 6 Ohms | 91.00 | 940mW/100mm | Sound Pressure Level (SPL) | 940 mW | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
CMS-181325-078S-67SPEAKER 8OHM 700MW TOP PORT 93DB |
2,356 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|
AS01506MS-SC15-WP-2-RSPEAKER 6OHM 1W TOP PORT 93DB |
760 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 650 Hz ~ 20 kHz | 650Hz | 6 Ohms | 93.00 | 100mm | Sensitivity | 1 W | 1.2 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|
CMS-151125-078L100A-67SPEAKER 8OHM 700MW TOP PORT 91DB |
3,004 |
|
- |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|
AS01506MS-SP15-WP-RSPEAKER 6OHM 1W TOP PORT 93DB |
239 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 650 Hz ~ 20 kHz | 650Hz | 6 Ohms | 93.00 | - | Sensitivity | 1 W | 1.2 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|
CDM-13008SPEAKER 8OHM 200MW TOP PORT 87DB |
500 |
|
Технический лист |
CDM | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1100Hz | 8 Ohms | 87.00 | 200mW/100mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) | 0.114" (2.90mm) |
|
SP-2005SSPEAKER 8OHM 800MW TOP PORT 91DB |
194 |
|
Технический лист |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Spring Type | 0.787" Dia (20.00mm) | 0.303" (7.70mm) |
|
AS05004MR-3-RSPEAKER 4OHM 1.5W TOP PORT 100DB |
2,245 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 20 kHz | 350Hz | 4 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.283" (7.20mm) |
|
CDS-1328-16-SPSPEAKR 16OHM 200MW TOP PORT 85DB |
985 |
|
Технический лист |
CDS | Box | Active | Magnetic | General Purpose | 880 Hz ~ 5 kHz | 1.1kHz | 16 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) | 0.110" (2.80mm) |
