Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSP-5090SPEAKER 8OHM 5W TOP PORT 91DB |
203 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 330 Hz ~ 19 kHz | 330Hz | 8 Ohms | 91.00 | 1W/100mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Oval, Rectangular Frame | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | - | 1.236" (31.40mm) |
|
AS02204MR-N50-RSPEAKER 4OHM 2W TOP PORT 79DB |
1,121 |
|
Технический лист |
N50 Mini Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 300Hz | 4 Ohms | 79.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.866" Dia (22.00mm) | 0.276" (7.00mm) |
|
AS02804PR-N50-RSPEAKER 4OHM 3W TOP PORT 76.5DB |
2,780 |
|
Технический лист |
N50 Mini Speaker | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 350Hz | 4 Ohms | 76.50 | 3W/1M | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.295" (7.50mm) |
|
AS07104PO-LW152-RSPEAKER 4OHM 3W TOP PORT 86DB |
390 |
|
Технический лист |
AS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | IEC 60601-1-8 | Wire Leads | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 1.024" (26.00mm) |
|
CLS0231-L152SPEAKER 8OHM 1W TOP PORT 89DB |
1,713 |
|
Технический лист |
CLS | Tray | Active | Magnetic | Low Profile | 520 Hz ~ 18 kHz | 650Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) | 0.224" (5.70mm) |
|

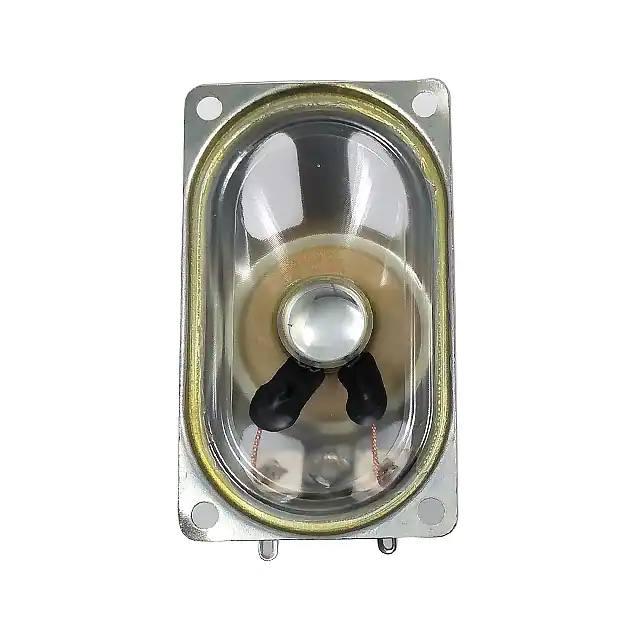

WSP-417108SPEAKER 8OHM 3W TOP PORT 93DB |
289 |
|
Технический лист |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 15 kHz | 450Hz | 8 Ohms | 93.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Oval, Rectangular Frame | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 1.071" (27.20mm) |
|
K 23 - 8 OHMSPEAKER 8OHM 300MW TOP PORT 79DB |
2,079 |
|
Технический лист |
Miniature Speaker | Bulk | Active | - | General Purpose | 420 Hz ~ 20 kHz | 750Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.906" Dia (23.00mm) | 0.197" (5.00mm) |
|
AS01808PR-N50-RSPEAKER 8OHM 2W TOP PORT 78DB |
104 |
|
Технический лист |
N50 Mini Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 500Hz | 8 Ohms | 78.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 2.8 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 0.709" Dia (18.00mm) | 0.205" (5.20mm) |
|
AS05208PR-4-RSPEAKER 8OHM 10W TOP PORT 77DB |
949 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 200Hz | 8 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round | Paper | Rare Earth | - | - | Solder Eyelet(s) | 2.047" Dia (52.00mm) | 1.378" (35.00mm) |
|
CES-3990-158PM-67SPEAKER 8OHM 1.5W TOP PORT 100DB |
499 |
|
Технический лист |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.08 kHz ~ 20 kHz | 1.35kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.535" Dia (39.00mm) | 0.354" (9.00mm) |
|
CES-30207-158L120-67SPEAKER 8OHM 1.5W TOP PORT 100DB |
152 |
|
Технический лист |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.36 kHz ~ 20 kHz | 1.7kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) | 0.276" (7.00mm) |
|
CMS-323214-34SPSPEAKER, 32 X 32 MM, 14.7 MM DEE |
499 |
|
Технический лист |
CMS | Tray | Active | Magnetic | General Purpose | 184 Hz ~ 11 kHz | 230Hz | 4 Ohms | 79.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | Foam | Nd-Fe-B | - | - | Solder Tabs | 1.260" L x 1.260" W (32.00mm x 32.00mm) | 0.579" (14.70mm) |
|
AS04008CO-2-WR-RSPEAKER 8OHM 1.5W TOP PORT 84DB |
1,843 |
|
Технический лист |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.335" (8.50mm) |
|
|
SMS-2008MS-RSPEAKER 8OHM 800MW TOP PORT 90DB |
5,094 |
|
Технический лист |
SMS | Tape & Reel (TR) | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Square | - | SmCo | - | - | Solder Pads | 0.787" L x 0.787" W (20.00mm x 20.00mm) | 0.177" (4.50mm) |
|
CES-434313-28PM-67SPEAKER 8OHM 2W TOP PORT 106DB |
355 |
|
Технический лист |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.12 kHz ~ 8 kHz | 1.4kHz | 8 Ohms | 106.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Square | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 0.514" (13.05mm) |
|
CLS0361-L152SPEAKER 8OHM 2W TOP PORT 88DB |
494 |
|
Технический лист |
CLS | Tray | Active | Magnetic | Low Profile | 360 Hz ~ 20 kHz | 450Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 1.417" Dia (36.00mm) | 0.248" (6.30mm) |
|

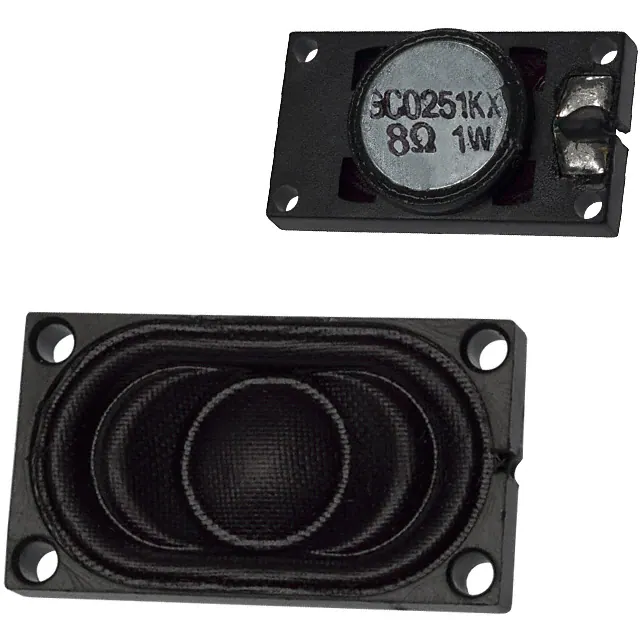

GC0251KSPEAKER 8OHM 1W TOP PORT 81DB |
3,209 |
|
Технический лист |
GC | Tray | Active | Magnetic | General Purpose | 592 Hz ~ 20 kHz | 740Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) | 0.205" (5.20mm) |
|
AS01208MS-SP12-WP-LW100-RSPEAKER 8OHM 300MW TOP PORT 88DB |
1,300 |
|
Технический лист |
AS | Tray | Active | Magnetic | Receiver | 850 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 88.00 | 100mm | Sensitivity | 300 mW | 500 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP68 - Dust Tight, Waterproof | - | Wire Leads | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.118" (3.00mm) |
|
CDS-15158-SMT-TRSPEAKER 8OHM 300MW TOP PORT 87DB |
6,590 |
|
Технический лист |
CDS | Tape & Reel (TR) | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 87.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Sm2Co17 | - | Washable | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.197" (5.00mm) |
|
CDS-40304-L1003SPEAKER 4OHM 2W TOP PORT 79DB |
29,682 |
|
Технический лист |
CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) | 0.280" (7.10mm) |
