Динамики
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS02804MR-RSPEAKER 4OHM 300MW TOP PORT 92DB |
0 |
|
- |
AS | Tray | Obsolete | Magnetic | General Purpose | 700 Hz ~ 7 kHz | 700Hz | 4 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.173" (4.40mm) |
|
|
AS03508CO-5-RSPEAKER 8OHM 1W TOP PORT 83DB |
0 |
|
- |
AS | Tray | Obsolete | Magnetic | General Purpose | 450 Hz ~ 2 kHz | 450Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.748" W (35.00mm x 19.00mm) | 0.217" (5.50mm) |
|
|
AS03608MR-3-RSPEAKER 8OHM 500MW TOP PORT 83DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 650 Hz ~ 7 kHz | 650Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N35 | - | - | Solder Pads | 1.417" Dia (36.00mm) | 0.193" (4.90mm) |
|
|
AS04008MS-RSPEAKER 8OHM 400MW TOP PORT 90DB |
0 |
|
- |
AS | Tray | Obsolete | Magnetic | General Purpose | 800 Hz ~ 5 kHz | 800Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 400 mW | 500 mW | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.594" L x 1.594" W (40.50mm x 40.50mm) | 0.618" (15.70mm) |
|
AS04008PO-RSPEAKER 8OHM 2W TOP PORT 84DB |
0 |
|
Технический лист |
AS | Tray | Obsolete | Magnetic | General Purpose | 380 Hz ~ 20 kHz | 380Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.453" (11.50mm) |
|
AS04008PO-WR-RSPEAKER 8OHM 2W TOP PORT 84DB |
0 |
|
Технический лист |
AS | Tray | Obsolete | Magnetic | General Purpose | 380 Hz ~ 20 kHz | 380Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.453" (11.50mm) |
|
|
AS04008PS-2-RSPEAKER 8OHM 200MW TOP PORT 90DB |
0 |
|
- |
AS | Tray | Obsolete | Magnetic | General Purpose | 530 Hz ~ 8 kHz | 530Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.594" L x 1.594" W (40.50mm x 40.50mm) | 0.657" (16.70mm) |
|
|
AS05004PS-RSPEAKER 4OHM 3W TOP PORT 84DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 200Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" L x 2.244" W (57.00mm x 57.00mm) | 1.575" (40.00mm) |
|
|
AS05008PS-RSPEAKER 8OHM 250MW TOP PORT 88DB |
0 |
|
Технический лист |
AS | Tray | Obsolete | Magnetic | General Purpose | 550 Hz ~ 3.5 kHz | 550Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Paper | N35 | - | - | Solder Eyelet(s) | 1.969" L x 1.969" W (50.00mm x 50.00mm) | 0.661" (16.80mm) |
|
|
AS05708PR-2-RSPEAKER 8OHM 1W TOP PORT 88DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 350 Hz ~ 8 kHz | 350Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) | 0.512" (13.00mm) |
|
|
AS05708PR-4-RSPEAKER 8OHM 1W TOP PORT 86DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 200 Hz ~ 12 kHz | 200Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) | 0.866" (22.00mm) |
|
|
AS06508MS-RSPEAKER 8OHM 2W TOP PORT 88DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 400 Hz ~ 13 kHz | 400Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.539" L x 2.539" W (64.50mm x 64.50mm) | 1.220" (31.00mm) |
|
|
AS07108PO-2-RSPEAKER 8OHM 4W TOP PORT 85DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 350 Hz ~ 20 kHz | 350Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 6 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 1.102" (28.00mm) |
|
|
AS07108PO-2-WR-RSPEAKER 8OHM 4W TOP PORT 85DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 350 Hz ~ 20 kHz | 350Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 6 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 1.102" (28.00mm) |
|
|
AS07108PO-4-RSPEAKER 8OHM 5W TOP PORT 86DB |
0 |
|
- |
AS | Tray | Obsolete | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Oval, Rectangular Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) | 0.984" (25.00mm) |
|

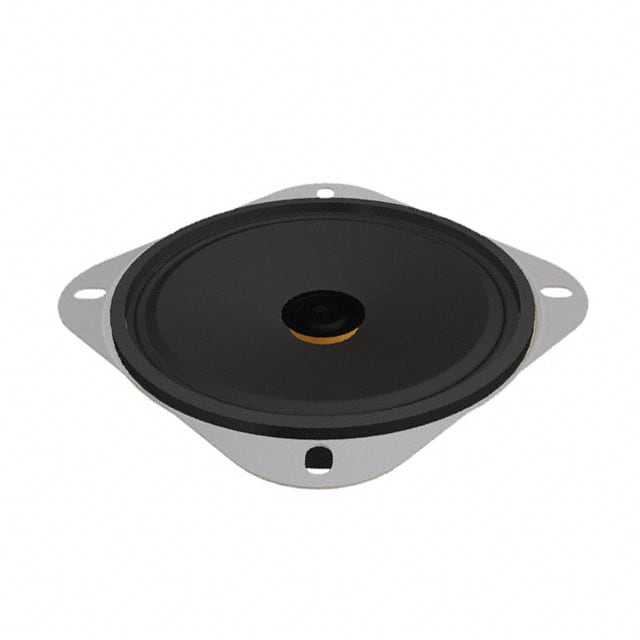

AS07708PS-2-RSPEAKER 8OHM 4W TOP PORT 90DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 250 Hz ~ 10 kHz | 250Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) | 1.063" (27.00mm) |
|
|
AS07708PS-3-RSPEAKER 8OHM 10W TOP PORT 88DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 120 Hz ~ 17 kHz | 120Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.953" L x 2.953" W (75.00mm x 75.00mm) | 1.732" (44.00mm) |
|
AS09008PO-2-RSPEAKER 8OHM 5W TOP PORT 87DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 200Hz | 8 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Oval, Rectangular Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.543" L x 1.969" W (90.00mm x 50.00mm) | 1.555" (39.50mm) |
|
|
AS09008PO-RSPEAKER 8OHM 5W TOP PORT 88DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 180 Hz ~ 15 kHz | 180Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 7 W | Top | Oval, Rectangular Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.543" L x 1.969" W (90.00mm x 50.00mm) | 1.890" (48.00mm) |
|
|
AS10308PS-RSPEAKER 8OHM 15W TOP PORT 93DB |
0 |
|
- |
AS | Bulk | Obsolete | Magnetic | General Purpose | 170 Hz ~ 15 kHz | 170Hz | 8 Ohms | 93.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 20 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.055" L x 4.055" W (103.00mm x 103.00mm) | 1.772" (45.00mm) |
