Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCA182STRSSR RELAY SPST-NO 120MA 0-350V |
4,889 |
|
Технический лист |
LCA, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, EN, UL | - | - |
|
AQY414SXSSR RELAY SPST-NC 100MA 0-400V |
771 |
|
Технический лист |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 400 V | 100 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
G3VM-401G(TR)SSR RELAY SPST-NO 120MA 0-400V |
1,985 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
|
AQY210KSZSSR RELAY SPST-NO 120MA 0-350V |
39,019 |
|
Технический лист |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.13VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
AQV212SSSR RELAY SPST-NO 500MA 0-60V |
5,307 |
|
Технический лист |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 60 V | 500 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 6-SOP | UR | - | - |
|
LAA108PSSR RELAY SPST-NO 300MA 0-100V |
611 |
|
Технический лист |
LAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 100 V | 300 mA | 8 Ohms | Gull Wing | -40°C ~ 85°C | 8-Flatpack | CSA, TUV, UL | - | - |
|
G3VM-21GR1(TR)SSR RELAY SPST-NO 300MA 0-20V |
557 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 20 V | 300 mA | 1.5 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
|
LCB110STRSSR RELAY SPST-NC 120MA 0-350V |
3,910 |
|
Технический лист |
LCB, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.2VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, EN, TUV, UL | - | - |
|
C237SSSR RELAY SPST-NO 350MA 0-60V |
5,100 |
|
Технический лист |
COTOMOS™ | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.37VDC | 0 V ~ 60 V | 350 mA | 1.6 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
CPC2014NSSR RELAY SPST-NO 400MA 0-60V |
2,090 |
|
Технический лист |
CPC, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 60 V | 400 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOIC | CSA, TUV, UL | - | - |
|
TLP4026G(F)RELAY SPST-NO/NC 120MA 0-350V |
570 |
|
- |
TLP4026G | Tube | Last Time Buy | Surface Mount | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.15VDC | 0 V ~ 350 V | 120 mA | 25 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOP (2.54mm) | UL | - | - |
|

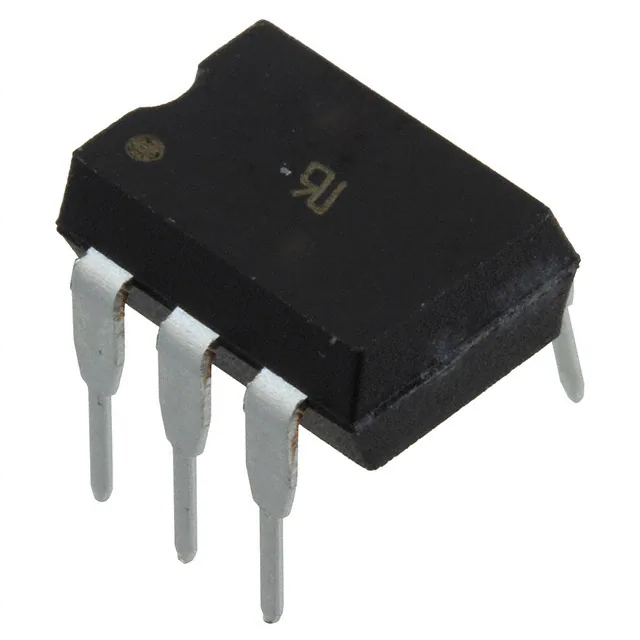

LH1510ATSSR RELAY SPST-NO 200MA 0-200V |
1,357 |
|
Технический лист |
LH1510 | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 200 V | 200 mA | 15 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | cUL, DIN, FIMKO, UL | - | - |
|
CPC2014NTRSSR RELAY SPST-NO 400MA 0-60V |
514 |
|
Технический лист |
CPC, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 60 V | 400 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOIC | CSA, TUV, UL | - | - |
|
|
G3VM-41GR5SSR RELAY SPST-NO 300MA 0-40V |
5,607 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 300 mA | 1.5 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
TLP241B(TP1,FPHOTORELAY; 100V/2A; DIP4; SMD; |
839 |
|
Технический лист |
TLP241B | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.65VDC | 0 V ~ 100 V | 2 A | 200 mOhms | SMD (SMT) Tab | -40°C ~ 110°C | 4-SMD | CSA, cUL, UL, VDE | - | - |
|
|
G3VM-61G3(TR)SSR RELAY SPST-NO 400MA 0-60V |
6,937 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 60 V | 400 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
|
AQW282SSSR RELAY SPST-NO 350MA 0-60V |
551 |
|
Технический лист |
PhotoMOS™ AQW | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 60 V | 350 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOP | UR, VDE | - | - |
|
|
AQW214SXSSR RELAY SPST-NO 80MA 0-400V |
59,085 |
|
Технический лист |
PhotoMOS™ AQW | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 400 V | 80 mA | 50 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOP | UR, VDE | - | - |
|
AQW210EHSSR RELAY SPST-NO 120MA 0-350V |
1,338 |
|
Технический лист |
PhotoMOS™ AQW | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 350 V | 120 mA | 25 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | UR, VDE | - | - |
.JPG)
|
TLP3542(F)SSR RELAY SPST-NO 2.5A 0-60V |
850 |
|
Технический лист |
TLP3542 | Tube | Last Time Buy | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.33VDC | 0 V ~ 60 V | 2.5 A | 100 mOhms | PC Pin | -20°C ~ 85°C | 6-DIP (Cut), 5 Lead | - | - | - |
