Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

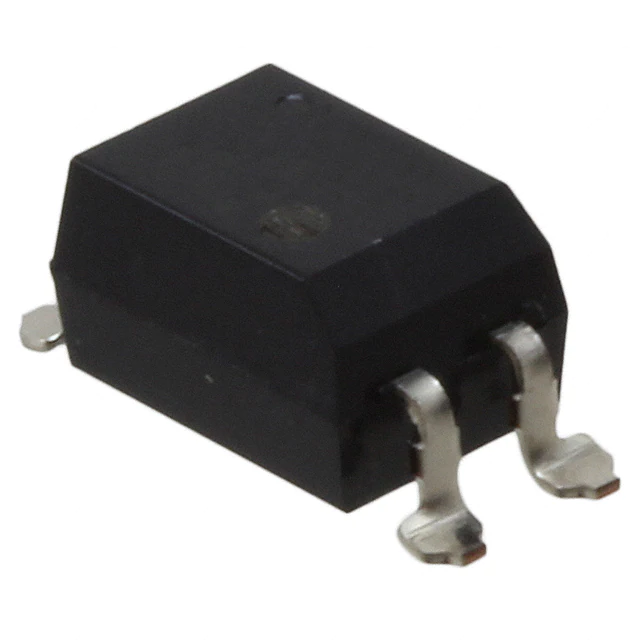

G3VM-351DY(TR)SSR RELAY SPST-NO 100MA 0-350V |
0 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.63VDC | 0 V ~ 350 V | 100 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | - | - | - |
|
G3VM-3F(TR)SSR RELAY SPST-NO 120MA 0-350V |
0 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | - | - | - |
|
G3VM-401AYSSR RELAY SPST-NO 120MA 0-400V |
0 |
|
Технический лист |
G3VM | Tube | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.63VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | PC Pin | -40°C ~ 85°C | 4-DIP | - | - | - |
|
|
G3VM-401DYSSR RELAY SPST-NO 120MA 0-400V |
0 |
|
Технический лист |
G3VM | Tube | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.63VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMT | - | - | - |
|
|
G3VM-401DY(TR)SSR RELAY SPST-NO 120MA 0-400V |
0 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.63VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMT | - | - | - |
|
G3VM-41LR3(TR05)SSR RELAY SPST-NO 80MA 0-40V |
0 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 80 mA | 35 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-SSOP | - | - | - |
|
|
G3VM-601DY(TR)SSR RELAY SPST-NO 90MA 0-600V |
0 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.63VDC | 0 V ~ 600 V | 90 mA | 60 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMT | - | - | - |
|
|
G3VM-61AYSSR RELAY SPST-NO 500MA 0-60V |
0 |
|
Технический лист |
G3VM | Tray | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.63VDC | 0 V ~ 60 V | 500 mA | 2 Ohms | PC Pin | -40°C ~ 85°C | 4-DIP | - | - | - |
|
|
G3VM-61DYSSR RELAY SPST-NO 500MA 0-60V |
0 |
|
Технический лист |
G3VM | Tray | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.63VDC | 0 V ~ 60 V | 500 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMT | - | - | - |
|
|
G3VM-61DY(TR)SSR RELAY SPST-NO 500MA 0-60V |
0 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.63VDC | 0 V ~ 60 V | 500 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMT | - | - | - |
|
G3RV-SL700-D DC24SSR RELAY SPST-NO 3A 5-24V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 5 V ~ 24 V | 3 A | - | Screw Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|

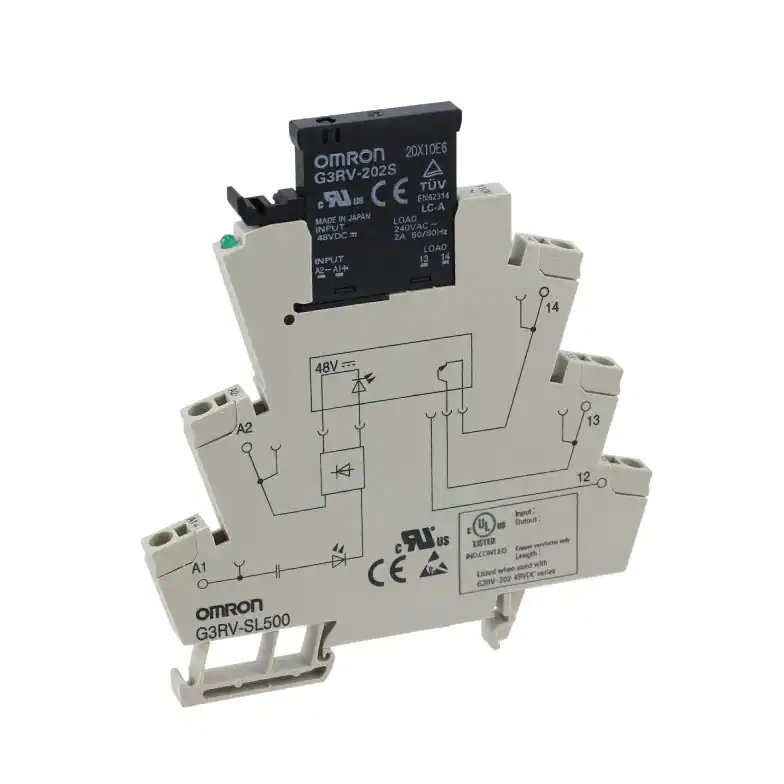

G3RV-SL500-D AC/DC24SSR RELAY SPST-NO 3A 5-24V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | DC | 24VAC/DC | 5 V ~ 24 V | 3 A | - | Spring Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-SL500-D DC24SSR RELAY SPST-NO 3A 5-24V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 5 V ~ 24 V | 3 A | - | Spring Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-SL700-A AC/DC24SSR RELAY SPST-NO 2A 100-240V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VAC/DC | 100 V ~ 240 V | 2 A | - | Screw Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-SL500-A AC/DC24SSR RELAY SPST-NO 2A 100-240V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VAC/DC | 100 V ~ 240 V | 2 A | - | Spring Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-SL700-D DC12SSR RELAY SPST-NO 3A 5-24V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | DC | 12VDC | 5 V ~ 24 V | 3 A | - | Screw Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-SL500-D DC12SSR RELAY SPST-NO 3A 5-24V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | DC | 12VDC | 5 V ~ 24 V | 3 A | - | Spring Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-SL700-A DC24SSR RELAY SPST-NO 2A 100-240V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 100 V ~ 240 V | 2 A | - | Screw Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-SL500-AL DC24SSR RELAY SPST-NO 2A 100-240V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC | 24VDC | 100 V ~ 240 V | 2 A | - | Spring Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-SL700-AL DC12SSR RELAY SPST-NO 2A 100-240V |
0 |
|
Технический лист |
G3RV | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC | 12VDC | 100 V ~ 240 V | 2 A | - | Screw Terminal | -40°C ~ 55°C | - | CE, cULus, TUV | - | - |
