Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S201DH1SSR RELAY SPST-NO 1.5A 0-240V |
0 |
|
Технический лист |
S201 | Tube | Obsolete | Through Hole | SPST-NO (1 Form A) | AC | 1.2VDC | 0 V ~ 240 V | 1.5 A | - | PC Pin | -25°C ~ 85°C | 16-DIP | CSA, TUV, UL | - | - |
|
|
S201S06FSSR RELAY SPST-NO 3A 80-240V |
0 |
|
Технический лист |
S201 | Tube | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 80 V ~ 240 V | 3 A | - | PC Pin | -25°C ~ 85°C | 4-SIP | CSA, TUV, UL | - | - |
|
|
S202S02SSR RELAY SPST-NO 8A 80-240V |
0 |
|
Технический лист |
S202 | Tube | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 80 V ~ 240 V | 8 A | - | PC Pin | -25°C ~ 100°C | 4-SIP | CSA, UL | - | - |
|
|
S202TA1SSR RELAY SPST-NO 2.5A 80-240V |
0 |
|
Технический лист |
S202 | Tube | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 80 V ~ 240 V | 2.5 A | - | PC Pin | -25°C ~ 100°C | 4-SIP | CSA, UL | - | - |
|
AQW210TSSSR RELAY SPST-NO 120MA 0-350V |
0 |
|
Технический лист |
PhotoMOS™ AQW | Tube | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOP | UR, VDE | - | - |
|

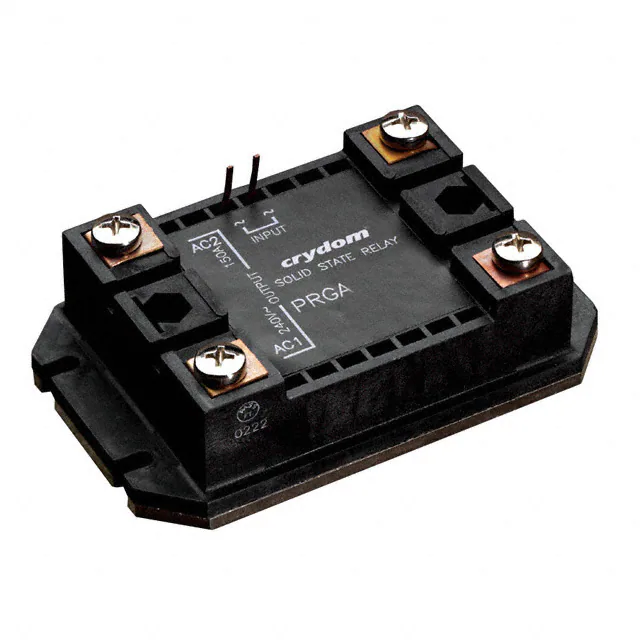

PRGA48150-10SSR RELAY SPST-NO 150A 48-530V |
0 |
|
Технический лист |
PRG | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC | 90 ~ 140VAC | 48 V ~ 530 V | 150 A | - | Screw Terminal | -30°C ~ 80°C | - | CE | - | - |
|
XBA170RELAY SPST-NO/NC 100MA 0-350V |
0 |
|
Технический лист |
XBA, OptoMOS® | Tube | Obsolete | Through Hole | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 350 V | 100 mA | 50 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
G3VM-41LR3SSR RELAY SPST-NO 80MA 0-40V |
0 |
|
Технический лист |
G3VM | Tube | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 80 mA | 35 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-SSOP | - | - | - |
|
|
G3VM-41LR4SSR RELAY SPST-NO 250MA 0-40V |
0 |
|
Технический лист |
G3VM | Tube | Discontinued | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 250 mA | 3 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-SSOP | - | - | - |
|
|
G3VM-41LR5SSR RELAY SPST-NO 300MA 0-40V |
0 |
|
Технический лист |
G3VM | Tube | Discontinued | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 300 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-SSOP | - | - | - |
|

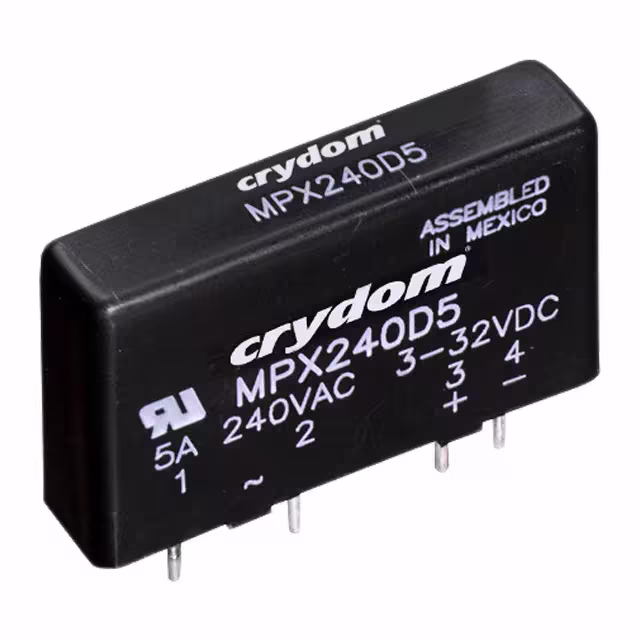

MPX240D5RSSR RELAY SPST-NO 5A 12-280V |
0 |
|
Технический лист |
MPX | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 12 V ~ 280 V | 5 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CE, UL | - | - |
|

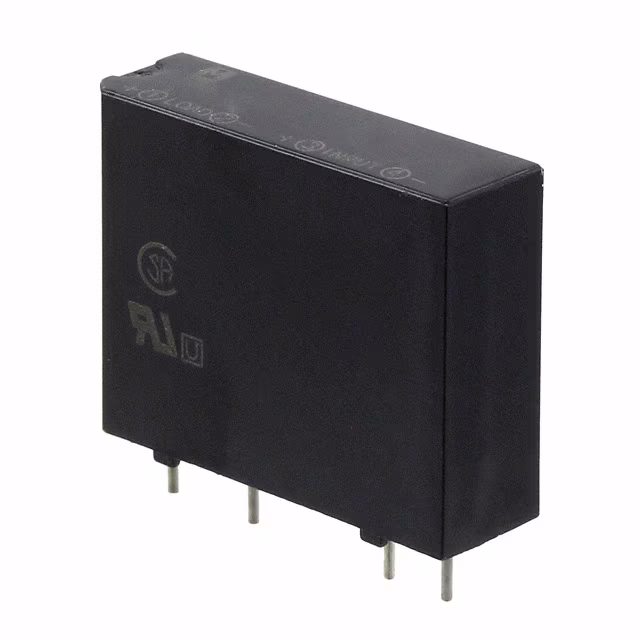

AQ1AD2-3/28VDCSSR RELAY SPST-NO 1A 10-200V |
0 |
|
Технический лист |
AQ1 | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 28VDC | 10 V ~ 200 V | 1 A | - | PC Pin | -30°C ~ 80°C | - | cURus, VDE | - | - |
|

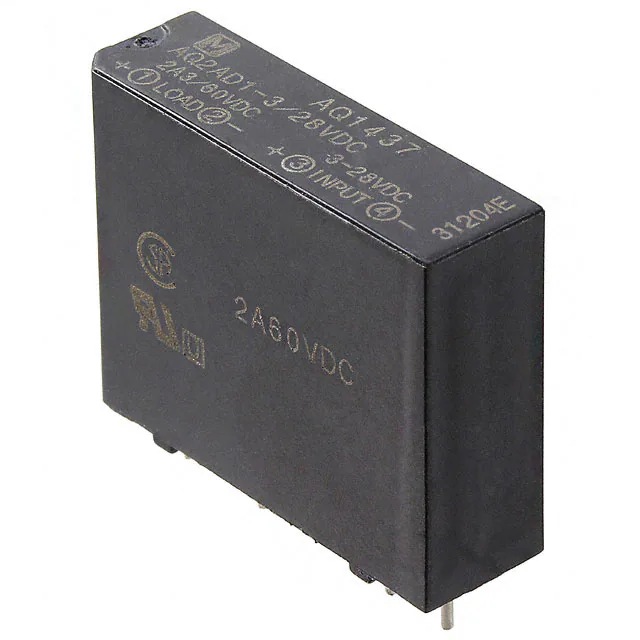

AQ2AD1-3/28VDCSSR RELAY SPST-NO 2A 3-60V |
0 |
|
Технический лист |
AQ1 | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 28VDC | 3 V ~ 60 V | 2 A | - | PC Pin | -30°C ~ 80°C | - | cURus, VDE | - | - |
|
AQC1A1-T12VDCSSR RELAY SPST-NO 1A 75-125V |
0 |
|
Технический лист |
AQ-C | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC | 9.6 ~ 14.4VDC | 75 V ~ 125 V | 1 A | - | PC Pin | -30°C ~ 80°C | - | CSA, TUV, UR | - | - |
|
AQC1A1-T24VDCSSR RELAY SPST-NO 1A 75-125V |
0 |
|
Технический лист |
AQ-C | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC | 21.6 ~ 26.4VDC | 75 V ~ 125 V | 1 A | - | PC Pin | -30°C ~ 80°C | - | CSA, TUV, UR | - | - |
|
|
AQC1A1-ZT24VDCSSR RELAY SPST-NO 1A 75-125V |
0 |
|
Технический лист |
AQ-C | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 21.6 ~ 26.4VDC | 75 V ~ 125 V | 1 A | - | PC Pin | -30°C ~ 80°C | - | CSA, TUV, UR | - | - |
|
|
AQC1A1-ZT5VDCSSR RELAY SPST-NO 1A 75-125V |
0 |
|
Технический лист |
AQ-C | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 125 V | 1 A | - | PC Pin | -30°C ~ 80°C | - | CSA, TUV, UR | - | - |
|
AQC1A2-T12VDCSSR RELAY SPST-NO 1A 75-250V |
0 |
|
Технический лист |
AQ-C | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC | 9.6 ~ 14.4VDC | 75 V ~ 250 V | 1 A | - | PC Pin | -30°C ~ 80°C | - | CSA, TUV, UR | - | - |
|
|
AQC1A2-ZT24VDCSSR RELAY SPST-NO 1A 75-250V |
0 |
|
Технический лист |
AQ-C | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 21.6 ~ 26.4VDC | 75 V ~ 250 V | 1 A | - | PC Pin | -30°C ~ 80°C | - | CSA, TUV, UR | - | - |
|
|
AQC1A2-ZT5VDCSSR RELAY SPST-NO 1A 75-250V |
0 |
|
Технический лист |
AQ-C | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 6VDC | 75 V ~ 250 V | 1 A | - | PC Pin | -30°C ~ 80°C | - | CSA, TUV, UR | - | - |
