Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQY212EHAXSSR RELAY SPST-NO 550MA 0-60V |
13,867 |
|
Технический лист |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 60 V | 550 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | BSI, cURus | - | - |
|
TLP241B(D4,TP1,FSSR RELAY SPST-NO 2A 0-100V |
3,030 |
|
Технический лист |
TLP241B | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.65VDC | 0 V ~ 100 V | 2 A | 200 mOhms | SMD (SMT) Tab | -40°C ~ 110°C | 4-SMD | CSA, cUL, UL, VDE | - | - |
|
|
TLP241B(TP5,FSSR RELAY SPST-NO 2A 0-100V |
1,408 |
|
Технический лист |
TLP241B | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.65VDC | 0 V ~ 100 V | 2 A | 200 mOhms | SMD (SMT) Tab | -40°C ~ 110°C | 4-SMD | CSA, cUL, UL, VDE | - | - |
|
G3VM-S5SSR RELAY SPST-NO 150MA 0-200V |
229 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 200 V | 150 mA | 8 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
LCB110SSR RELAY SPST-NC 120MA 0-350V |
1,266 |
|
Технический лист |
LCB, OptoMOS® | Tube | Active | Through Hole | SPST-NC (1 Form B) | AC, DC | 1.2VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | CSA, EN, TUV, UL | - | - |
|

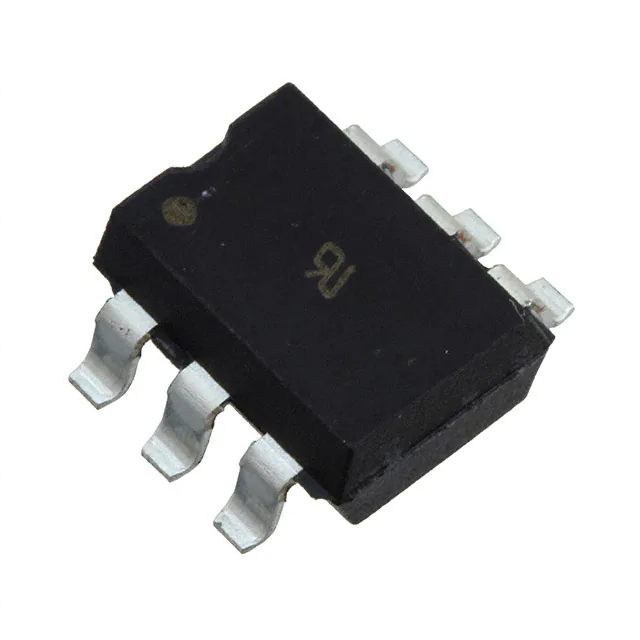

LH1510AABSSR RELAY SPST-NO 200MA 0-200V |
503 |
|
Технический лист |
LH1510 | Tube | Active | - | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 200 V | 200 mA | 15 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | cUL, DIN, FIMKO, UL | - | - |
|
G3VM-352JSSR RELAY SPST-NO 110MA 0-350V |
2,700 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.15VDC | 0 V ~ 350 V | 110 mA | 50 Ohms | Gull Wing | -40°C ~ 85°C | 8-SOP | - | - | - |
|
AQW210EHAZSSR RELAY SPST-NO 120MA 0-350V |
761 |
|
Технический лист |
PhotoMOS™ AQW | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 350 V | 120 mA | 25 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UR, VDE | - | - |
|

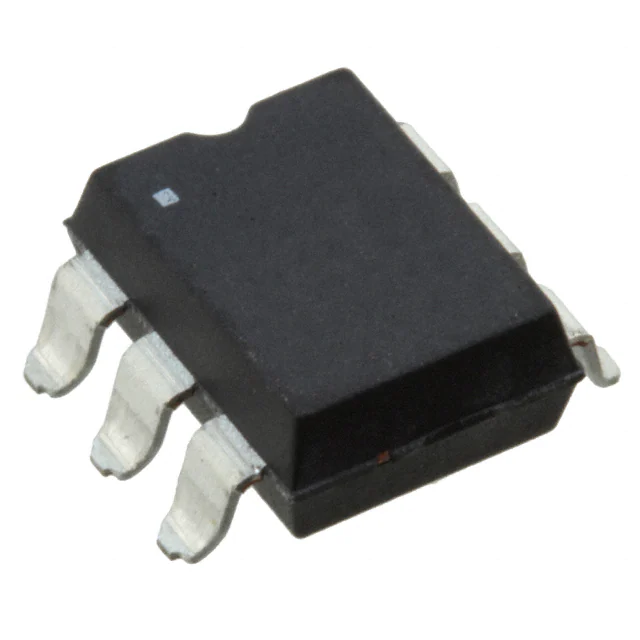

LH1511BABSSR RELAY SPST-NC 200MA 0-200V |
386 |
|
Технический лист |
LH1511 | Tube | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.26VDC | 0 V ~ 200 V | 200 mA | 10 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UL, VDE | - | - |
|
AQV216SSR RELAY SPST-NO 50MA 0-600V |
578 |
|
Технический лист |
PhotoMOS™ AQV | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.14VDC | 0 V ~ 600 V | 50 mA | 120 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | UR | - | - |
|
|
G3VM-201GSSR RELAY SPST-NO 50MA 0-200V |
585 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 200 V | 50 mA | 50 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
G3VM-21GRSSR RELAY SPST-NO 160MA 0-20V |
350 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 20 V | 160 mA | 8 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
AQV414EHAXSSR RELAY SPST-NC 120MA 0-400V |
1,016 |
|
Технический лист |
PhotoMOS™ AQV | Tape & Reel (TR) | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 400 V | 120 mA | 50 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
|
AQW212EHASSR RELAY SPST-NO 500MA 0-60V |
1,161 |
|
Технический лист |
PhotoMOS™ AQW | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 60 V | 500 mA | 2.5 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UR, VDE | - | - |
|
AQW212EHSSR RELAY SPST-NO 500MA 0-60V |
150 |
|
Технический лист |
PhotoMOS™ AQW | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 60 V | 500 mA | 2.5 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | UR, VDE | - | - |
|
TLP3553A(FSSR RELAY SPST-NO 4A 0-30V |
592 |
|
Технический лист |
TLP3553A | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 30 V | 4 A | 50 mOhms | PC Pin | -40°C ~ 110°C | 4-DIP | CSA, cUL, UL, VDE | - | - |
|
|
G3VM-61G3SSR RELAY SPST-NO 400MA 0-60V |
700 |
|
Технический лист |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 60 V | 400 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
|
C224SSSR RELAY SPST-NO 3.5A 0-40V |
583 |
|
Технический лист |
- | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | DC | 5VDC | 0 V ~ 40 V | 3.5 A | 50 mOhms | Gull Wing | -40°C ~ 85°C | - | - | - | - |
|
|
AQV414SSR RELAY SPST-NC 120MA 0-400V |
703 |
|
Технический лист |
PhotoMOS™ AQV | Tube | Active | Through Hole | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 400 V | 120 mA | 50 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | UR | - | - |
|
|
AQY410SSSR RELAY SPST-NC 120MA 0-350V |
698 |
|
Технический лист |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NC (1 Form B) | AC, DC | 1.14VDC | 0 V ~ 350 V | 120 mA | 25 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
