Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G3RV-ST700-A AC/DC48RELAY GEN PURPOSE SPST 2A 48V |
0 |
|
Технический лист |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 48VAC/DC | 75 V ~ 264 V | 2 A | - | Screw Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST500-D AC/DC24RELAY GEN PURPOSE SPST 3A 24V |
0 |
|
Технический лист |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VAC/DC | 3 V ~ 26.4 V | 3 A | 300 mOhms | Spring Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST500-AL AC/DC24RELAY GEN PURPOSE SPST 2A 24V |
0 |
|
Технический лист |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VAC/DC | 75 V ~ 264 V | 2 A | - | Spring Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST500-A AC/DC48RELAY GEN PURPOSE SPST 2A 48V |
0 |
|
Технический лист |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 48VAC/DC | 75 V ~ 264 V | 2 A | - | Spring Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST700-D DC12RELAY GEN PURPOSE SPST 3A 12V |
0 |
|
Технический лист |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 12VDC | 3 V ~ 26.4 V | 3 A | 300 mOhms | Screw Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST500-AL DC12RELAY GEN PURPOSE SPST 2A 12V |
0 |
|
Технический лист |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC | 12VDC | 75 V ~ 264 V | 2 A | - | Spring Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
|
G3RV-ST500-A DC12RELAY GEN PURPOSE SPST 2A 12V |
0 |
|
Технический лист |
G3RV-ST | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 12VDC | 75 V ~ 264 V | 2 A | - | Spring Terminal | -30°C ~ 55°C | - | CE, cULus, TUV | - | - |
|
CTX240D3QSSR RELAY SPST-NO 2.5A 24-280V |
0 |
|
Технический лист |
CTX | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) x 4 | AC, Zero Cross | 4 ~ 10VDC | 24 V ~ 280 V | 2.5 A | - | PC Pin | -30°C ~ 80°C | 10-SIP | CE | - | - |
|
SKL10560SSR RELAY SPST-NO 50A 24-690V |
0 |
|
Технический лист |
- | Box | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 12VDC | 24 V ~ 690 V | 50 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | cURus, UL | - | - |
|
|
SOR965440-HESSR PUSH IN 50A/24-660VAC/TVS/CT |
0 |
|
- |
- | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3.5 ~ 32VDC | 24 V ~ 660 V | 50 A | 7.5 mOhms | Spring Terminal | -40°C ~ 80°C | - | CE, cURus, UKCA | - | - |
|
|
70S2-04-C-06-NSOLID STATE RELAY |
0 |
|
Технический лист |
Legacy | Box | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 30VDC | 24 V ~ 280 V | 6 A | - | Quick Connect, Disconnect | -40°C ~ 100°C | - | CSA, cURus | - | - |
|
|
70S2-04-B-12-NSOLID STATE RELAY |
0 |
|
Технический лист |
Legacy | Box | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 30VDC | 24 V ~ 140 V | 12 A | - | Quick Connect, Disconnect | -40°C ~ 100°C | - | CSA, cURus | - | - |
|
|
RS1A40D401-POLE PANEL MOUNT SSR, ZERO-CRO |
0 |
|
- |
RS1A | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 0 V ~ 400 V | 40 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, EAC | - | - |
|
A2410KSSR RELAY SPST-NO 10A 24-280V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|

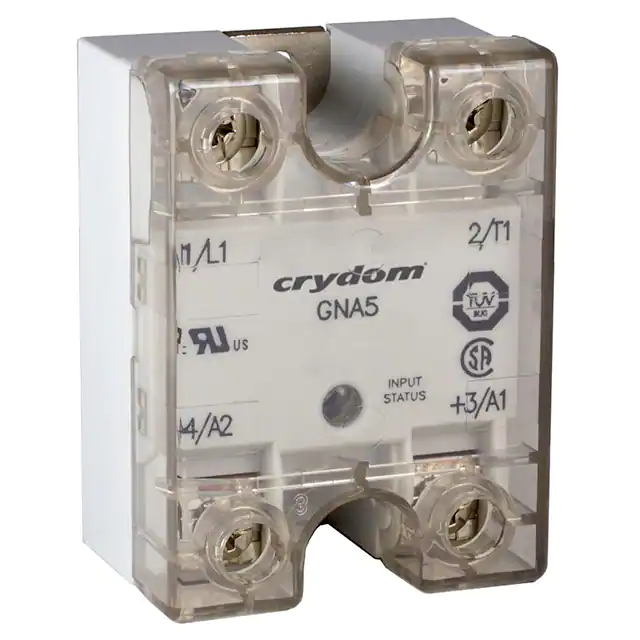

84137910SSR RELAY SPST-NO 25A 24-280V |
0 |
|
Технический лист |
GNA5 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
859-761SSR RELAY SPST-NO 3A 3-30V |
0 |
|
Технический лист |
859 | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 30 V | 3 A | - | Spring Terminal | -25°C ~ 55°C | - | EAC | - | - |
|
859-762SSR RELAY SPST-NO 3A 3-30V |
0 |
|
Технический лист |
859 | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 30 V | 3 A | - | Spring Terminal | -25°C ~ 55°C | - | EAC | - | - |
|
D2450TSSR RELAY SPST-NO 50A 24-140V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 140 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
GNRM4B1BSSR 4A OUT 460 VAC, IN 30VAC/VDC |
0 |
|
Технический лист |
GNR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 12 ~ 30VAC, 8.5 ~ 30VDC | 7 V ~ 36 V | 4 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, VDE | - | - |
|
GNRDM4A1CSSR 4A OUT 60VDC IN 240VAC/DC NO |
0 |
|
Технический лист |
GNRDM | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 90 ~ 240VAC | 7 V ~ 36 V | 4 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, UKCA | - | - |
