Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
77.01.0.024.8051SSR RELAY SPST-NO 5A 48-265V |
0 |
|
Технический лист |
77 | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC | 24VAC/DC | 48 V ~ 265 V | 5 A | - | Screw Terminal | -20°C ~ 70°C | Module | CE, cULus, EAC, UKCA | - | - |
|
D1210KSSR RELAY SPST-NO 10A 24-140V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 140 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
SOR842074SSR RELAY SPST-NO 50A 12-275V |
0 |
|
Технический лист |
okpac® | Box | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 12 V ~ 275 V | 50 A | 16 mOhms | Screw Terminal | -40°C ~ 90°C | - | CE | - | - |
|
D2425FGSSR RELAY SPST-NO 25A 24-280V |
0 |
|
- |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Quick Connect - 0.187"/0.250" | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
|
SSP1A450M7SSR RELAY SPST-NO 50A 48-660V |
0 |
|
Технический лист |
Harmony | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | Hockey Puck | CE, CSA, EAC, UL | - | - |
|

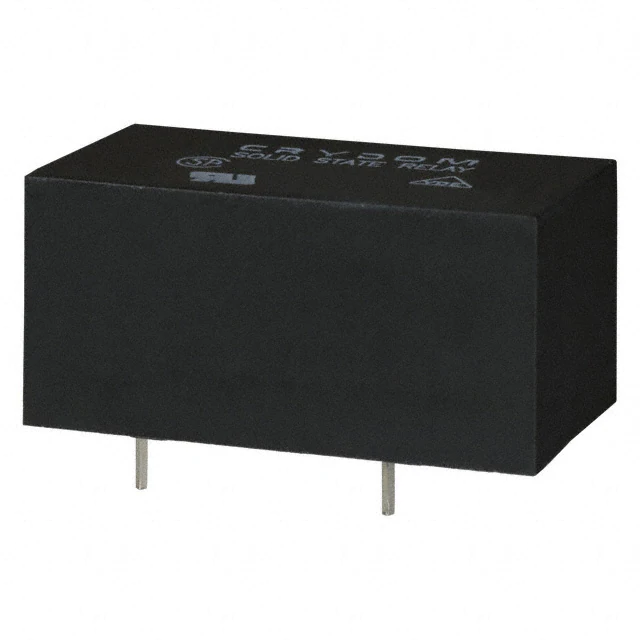

S3022ASSR RELAY SPST-NO 3A 40-280V |
0 |
|
Технический лист |
3 | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 3.5 ~ 8VDC | 40 V ~ 280 V | 3 A | - | PC Pin | -30°C ~ 80°C | - | CSA, UL, VDE | - | - |
|
|
A1225ESSR RELAY SPST-NO 25A 24-140V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 36VAC | 24 V ~ 140 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
|
A1225E-10SSR RELAY SPST-NO 25A 24-140V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 18 ~ 36VAC | 24 V ~ 140 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
|
A1210E-10SSR RELAY SPST-NO 10A 24-140V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 18 ~ 36VAC | 24 V ~ 140 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
EZ240A12RSSR RELAY SPST-NO 12A 24-280V |
0 |
|
Технический лист |
EZ | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 90 ~ 140VAC | 24 V ~ 280 V | 12 A | - | Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
|
EZE240A12RSSR RELAY SPST-NO 12A 24-280V |
0 |
|
Технический лист |
EZ | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 18 ~ 36VAC | 24 V ~ 280 V | 12 A | - | Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
D2425F-10SSR RELAY SPST-NO 25A 24-280V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Quick Connect - 0.187"/0.250" | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
D2425G-10SSR RELAY SPST-NO 25A 24-280V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
|
77.55.9.024.8250SSR RELAY SPST-NO 50A 21.6-280V |
0 |
|
Технический лист |
77 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 21.6 V ~ 280 V | 50 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cULus, EAC | - | - |
|
|
84134017NSSR RELAY SPST-NO 25A 24-280V |
0 |
|
Технический лист |
GNF | Box | Active | Chassis Mount or Panel Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 30VDC | 24 V ~ 280 V | 25 A | - | Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C | - | CE, cURus, UKCA | - | - |
|
|
70S201A05SSSR RELAY SPST-NO 5A 3-60V |
0 |
|
Технический лист |
Legacy | Box | Obsolete | Chassis Mount | SPST-NO (1 Form A) | DC | 3 ~ 15VDC | 3 V ~ 60 V | 5 A | - | Screw Terminal | -40°C ~ 100°C | - | CSA, cURus | - | - |
|
|
G3PB-215B-VD DC12-24SSR RELAY SPST-NO 15A 75-264V |
0 |
|
Технический лист |
G3PB | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 9.6 ~ 30VDC | 75 V ~ 264 V | 15 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, CSA, UR, VDE | - | - |
|
ASR-SV480D10RW-LSSR RELAY SPST-NO 10A 24-530V |
0 |
|
Технический лист |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 530 V | 10 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
ASR-SV480D10ZW-LMSSR RELAY SPST-NO 10A 24-530V |
0 |
|
Технический лист |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 530 V | 10 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
70S201A03FSSR RELAY SPST-NO 3A 3-60V |
0 |
|
Технический лист |
Legacy | Box | Obsolete | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 15VDC | 3 V ~ 60 V | 3 A | - | PC Pin | -40°C ~ 100°C | 4-DIP | CSA, cURus | - | - |
