Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EL240A30R-12SSR RELAY SPST-NO 30A 24-280V |
0 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 10 ~ 14VDC | 24 V ~ 280 V | 30 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
2982647SSR RELAY SPST-NO 4A 1-60V |
1 |
|
Технический лист |
OV | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 60 V | 4 A | - | Plug In | -20°C ~ 80°C | - | cULus, EAC, UL | - | - |
|
SKA11440SSR RELAY SPST-NO 5A 12-460V |
0 |
|
Технический лист |
- | Box | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 5VDC | 12 V ~ 460 V | 5 A | 40 mOhms | PC Pin | -40°C ~ 100°C | 4-SIP | CE, cURus, VDE | - | - |
|

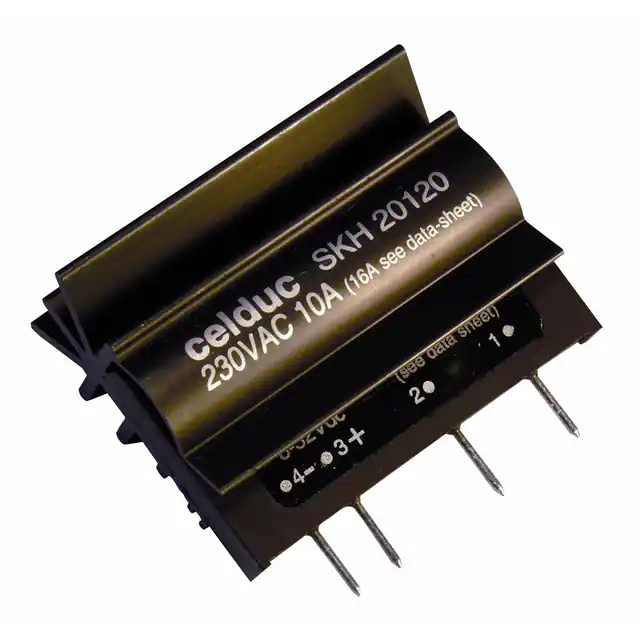

SKH20120SSR RELAY SPST-NO 10A 12-280V |
4 |
|
Технический лист |
- | Box | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 12 V ~ 280 V | 10 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | UL | - | - |
|
2900367SSR RELAY SPST-NO 3A 3-33V |
3 |
|
Технический лист |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 120VAC/DC | 3 V ~ 33 V | 3 A | - | Spring Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|
DR24B03RSSR RELAY SPST-NO 3A 24-280V |
0 |
|
Технический лист |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 90 ~ 140VAC | 24 V ~ 280 V | 3 A | - | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|
|
EL240A30R-24NSSR RELAY SPST-NO 30A 24-280V |
0 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 21 ~ 27VDC | 24 V ~ 280 V | 30 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
ASR-SV480D40ZW-LSSR RELAY SPST-NO 40A 24-530V |
1 |
|
Технический лист |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 530 V | 40 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
CMXE200D3SSR RELAY SPST-NO 3A 0-200V |
0 |
|
Технический лист |
CMX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 20 ~ 28VDC | 0 V ~ 200 V | 3 A | 200 mOhms | PC Pin | -10°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
EZ240D18RSSR RELAY SPST-NO 18A 24-280V |
0 |
|
Технический лист |
EZ | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 15VDC | 24 V ~ 280 V | 18 A | - | Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
SSRT-240D10SSR RELAY SPST-NO 10A 24-280V |
0 |
|
Технический лист |
SSRT | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -30°C ~ 80°C | - | cURus | - | - |
|
D2425FSSR RELAY SPST-NO 25A 24-280V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Quick Connect - 0.187"/0.250" | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
SSRDC-200D25SSR RELAY SPST-NO 25A 0-200V |
0 |
|
Технический лист |
SSRDC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 0 V ~ 200 V | 25 A | - | Screw Terminal | -30°C ~ 100°C | Hockey Puck | cURus | - | - |
|
RS1A48D25SSR RELAY SPST-NO 25A 42-530V |
0 |
|
Технический лист |
RS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 42 V ~ 530 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, EAC | - | - |
|
D2410FPG-10SSR RELAY SPST-NO 10A 24-280V |
0 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Quick Connect - 0.187"/0.250" | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
84134917SSR RELAY SPST-NO 25A 24-280V |
0 |
|
Технический лист |
GNA5 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
|
SSRDC-200D40SSR RELAY SPST-NO 40A 0-200V |
0 |
|
Технический лист |
SSRDC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 0 V ~ 200 V | 40 A | - | Screw Terminal | -30°C ~ 100°C | Hockey Puck | cURus | - | - |
|
|
ASR-SV240D30ZW-LSSR RELAY SPST-NO 30A 24-280V |
0 |
|
Технический лист |
SV | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 30 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
RS1A48D40SSR RELAY SPST-NO 40A 42-530V |
0 |
|
Технический лист |
RS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 42 V ~ 530 V | 40 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, EAC | - | - |
|
84137111NSSR RELAY SPST-NO 25A 48-660V |
1 |
|
Технический лист |
GN | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 20 ~ 265VAC | 48 V ~ 660 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, VDE | - | - |
