Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G3MC-101PL DC12SSR RELAY SPST-NO 1A 75-132V |
41 |
|
Технический лист |
G3MC | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC | 9.6 ~ 14.4VDC | 75 V ~ 132 V | 1 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CSA, UR, VDE | - | - |
|
|
G3MC-101P DC12SSR RELAY SPST-NO 1A 75-132V |
31 |
|
Технический лист |
G3MC | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 9.6 ~ 14.4VDC | 75 V ~ 132 V | 1 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CSA, UR, VDE | - | - |
|
LBA120LRELAY SPST-NO/NC 150MA 0-250V |
100 |
|
Технический лист |
LBA, OptoMOS® | Tube | Active | Through Hole | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 250 V | 150 mA | 25 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, TUV, UL | - | - |
|
|
LAA127LSSR RELAY SPST-NO 170MA 0-250V |
100 |
|
Технический лист |
LAA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 170 mA | 15 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, TUV, UL | - | - |
|
CS338SSR RELAY SPST-NO 70MA 0-600V |
94 |
|
Технический лист |
COTOMOS™ | Tube | Obsolete | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.37VDC | 0 V ~ 600 V | 70 mA | 60 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | - | - | - |
|
AQY221N3MSSR RELAY SPST-NO 150MA 0-25V |
40 |
|
Технический лист |
PhotoMOS™ AQY | Strip | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC (RF) | 1.14VDC | 0 V ~ 25 V | 150 mA | 7.5 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-SON | BSI, cURus | - | - |
|
PBB190SSR RELAY SPST-NC 130MA 0-400V |
100 |
|
Технический лист |
PBB, OptoMOS® | Tube | Active | Through Hole | SPST-NC (1 Form B) | AC, DC | 1.36VDC | 0 V ~ 400 V | 130 mA | 25 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
|
PAA191SSR RELAY SPST-NO 250MA 0-400V |
100 |
|
Технический лист |
PAA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 400 V | 250 mA | 8 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
|
AC4780V 1A SSR RELAY SPST-NO |
87 |
|
Технический лист |
47 | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.37VDC | 0 V ~ 80 V | 1 A | 160 mOhms | PC Pin | - | 8-DIP | - | - | - |
|
PAA140LSSSR RELAY SPST-NO 200MA 0-400V |
100 |
|
Технический лист |
PAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 400 V | 200 mA | 13 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, UL | - | - |
|
8950810000SSR RELAY SPST-NO 100MA 5-48V |
8 |
|
Технический лист |
TOP | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 220VDC | 5 V ~ 48 V | 100 mA | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
8950750000SSR RELAY SPST-NO 100MA 5-48V |
7 |
|
Технический лист |
TOS | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 220VDC | 5 V ~ 48 V | 100 mA | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus | - | - |
|
AQ2A1-C1-T12VDCSSR RELAY SPST-NO 2A 75-125V |
19 |
|
Технический лист |
AQ8 | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC | 9.6 ~ 14.4VDC | 75 V ~ 125 V | 2 A | - | PC Pin | -30°C ~ 80°C | 4-SIL | cURus, VDE | - | - |
|
|
AQ2A1-C2-T12VDCSSR RELAY SPST-NO 2A 75-125V |
20 |
|
Технический лист |
AQ8 | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 9.6 ~ 14.4VDC | 75 V ~ 125 V | 2 A | - | PC Pin | -30°C ~ 80°C | 4-SIL | cURus, VDE | - | - |
|
AQY2C2R2PSSR RELAY SPST-NO 300MA 0-60V |
22 |
|
Технический лист |
PhotoMOS™ AQY2 | Tape & Reel (TR) | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.7VDC | 0 V ~ 60 V | 300 mA | 1.5 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-TSON (1.95x1.8) | - | - | - |
|
|
AQY225R3TSSR RELAY SPST-NO 120MA 0-100V |
12 |
|
- |
PhotoMOS™ AQY2 | Strip | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC (RF) | 1.14VDC | 0 V ~ 100 V | 120 mA | 14 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-VSSOP | - | - | - |
|
|
AQY2C5R3PSSR RELAY SPST-NO 120MA 0-100V |
79 |
|
Технический лист |
PhotoMOS™ AQY2 | Tape & Reel (TR) | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 2VDC | 0 V ~ 100 V | 120 mA | 14 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-TSON (1.95x1.8) | - | - | - |
|
2618680000SSR RELAY SPST-NO 100MA 0-48V |
3 |
|
Технический лист |
TERMSERIES | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 120VAC/DC | 0 V ~ 48 V | 100 mA | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|

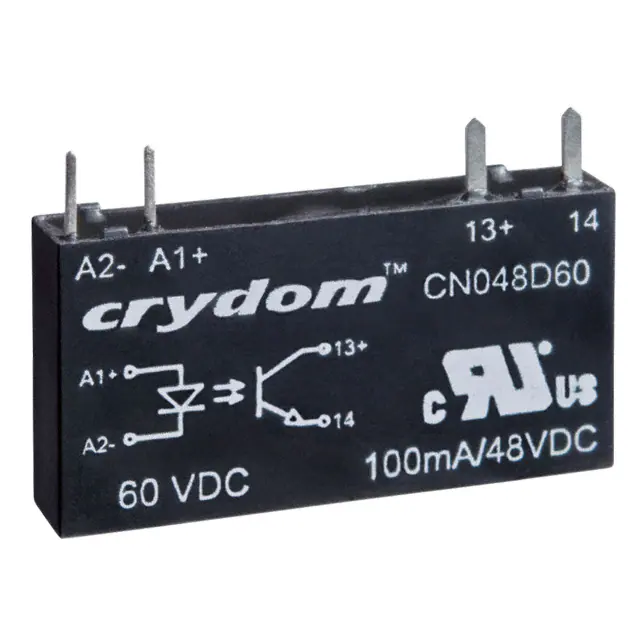

CN048D60SSR RELAY SPST-NO 100MA 0-48V |
0 |
|
Технический лист |
CN | Tube | Active | Through Hole | SPST-NO (1 Form A) | DC | 38 ~ 72VDC | 0 V ~ 48 V | 100 mA | - | PC Pin | -20°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
2618370000SSR RELAY SPST-NO 1A 24-240V |
40 |
|
Технический лист |
TERMSERIES | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 60VAC/DC | 24 V ~ 240 V | 1 A | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
