Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
859-756SSR RELAY SPST-NO 500MA 4-6.25V |
4 |
|
Технический лист |
859 | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 4 V ~ 6.25 V | 500 mA | - | Spring Terminal | -25°C ~ 40°C | - | EAC, UL | - | - |
|
2900394SSR RELAY SPST-NO 3A 12-140V |
11 |
|
Технический лист |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 72VDC | 12 V ~ 140 V | 3 A | - | Screw Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|
|
2900393SSR RELAY SPST-NO 3A 12-140V |
9 |
|
Технический лист |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 48VDC | 12 V ~ 140 V | 3 A | - | Screw Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|
1127670000SSR RELAY SPST-NO 3.5A 3-33V |
10 |
|
Технический лист |
TERMSERIES | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24 ~ 230VAC/DC | 3 V ~ 33 V | 3.5 A | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|
|
SRP1-CBAZL-025NW-NSRP1-CB |
20 |
|
Технический лист |
SRP1-CB | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 240 V | 25 A | 6.3 mOhms | Screw Terminal | -40°C ~ 70°C | - | CE, cURus, IEC | - | - |
|
859-706SSR RELAY SPST-NO 500MA 4-6.25V |
11 |
|
Технический лист |
859 | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 4 V ~ 6.25 V | 500 mA | - | Spring Terminal | -25°C ~ 55°C | - | EAC, UL | - | - |
|
|
PCS34-D-240A-50ZLSSR RELAY 50A 48~280VAC SCREW TE |
15 |
|
Технический лист |
PCS34 | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 530 V | 50 A | - | Screw Terminal | -30°C ~ 80°C | Hockey Puck | cURus | - | - |
|
|
PCS34-D-240A-50RLSSR RELAY 50A 48~280VAC SCREW TE |
14 |
|
Технический лист |
PCS34 | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 530 V | 50 A | - | Screw Terminal | -30°C ~ 80°C | Hockey Puck | cURus | - | - |
|
|
SRP1-CBDZL-010NF-NSRP1-CBF |
11 |
|
Технический лист |
SRP1-CB-F | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 240 V | 10 A | 6.3 mOhms | Quick Connect - 0.250" (6.3mm) | -40°C ~ 70°C | - | CE, cURus, IEC | - | - |
|
|
2900379SSR RELAY SPST-NO 3A 3-33V |
8 |
|
Технический лист |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 3 A | - | Screw Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|

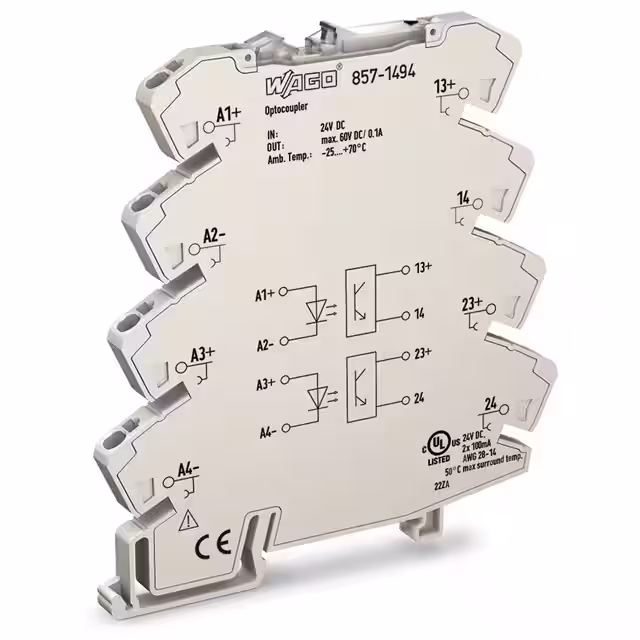

857-1494SSR RELAY SPST-NO 100MA 9-60V |
8 |
|
Технический лист |
857 | Box | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 9 V ~ 60 V | 100 mA | - | Spring Terminal | -25°C ~ 70°C | - | EAC, UL | - | - |
|
|
SO967440SSR 90A/24-600VAC/TVS/CTRL 3,5-3 |
15 |
|
Технический лист |
okpac® | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3.5 ~ 32VDC | 24 V ~ 600 V | 90 A | 4.5 mOhms | Screw Terminal | -40°C ~ 90°C | - | CE | - | - |
|
|
PCS34-D-240A-50RYLSSR RELAY 50A 48~280VAC SCREW TE |
15 |
|
Технический лист |
PCS34 | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 530 V | 50 A | - | Screw Terminal | -30°C ~ 80°C | Hockey Puck | cURus | - | - |
|
|
PCS34-D-240A-50ZYLSSR RELAY 50A 48~280VAC SCREW TE |
15 |
|
Технический лист |
PCS34 | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 530 V | 50 A | - | Screw Terminal | -30°C ~ 80°C | Hockey Puck | cURus | - | - |
|
|
PCS34-D-380A-80ZLSSR RELAY 80A 48~440VAC SCREW TE |
13 |
|
Технический лист |
PCS34 | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 530 V | 80 A | - | Screw Terminal | -30°C ~ 80°C | Hockey Puck | cURus | - | - |
|
|
SO963940SSR 40A/24-600VAC/TVS/CTRL 18-28 |
15 |
|
Технический лист |
okpac® | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 280VAC/DC | 24 V ~ 600 V | 40 A | 14 mOhms | Screw Terminal | -40°C ~ 90°C | - | CE | - | - |
|
|
SO967940SSR 90A/24-600VAC/TVS/CTRL 18-28 |
19 |
|
Технический лист |
okpac® | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 18 ~ 280VAC/DC | 24 V ~ 600 V | 90 A | 4.5 mOhms | Screw Terminal | -40°C ~ 90°C | - | CE | - | - |
|
|
SRP1-CBAZL-010NW-NSRP1-CB |
10 |
|
Технический лист |
SRP1-CB | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 240 V | 10 A | 6.3 mOhms | Screw Terminal | -40°C ~ 70°C | - | CE, cURus, IEC | - | - |
|
|
PCS34-D-240A-50ZLQSSR RELAY 50A 48~280VAC QUICK CO |
14 |
|
Технический лист |
PCS34 | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 530 V | 50 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | Hockey Puck | cURus | - | - |
|
|
2980610SSR RELAY SPST-NO 3A 3-33V |
3 |
|
Технический лист |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 3 A | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
