Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GN325DLRSSR RELAY 3PST-NO 25A 48-600V |
2 |
|
Технический лист |
GN3 | Bulk | Active | DIN Rail | 3PST-NO (3 Form A) | AC | 4 ~ 32VDC | 48 V ~ 600 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
|
GN325DSZSSR RELAY 3PST-NO 25A 48-530V |
2 |
|
Технический лист |
GN3 | Bulk | Active | DIN Rail | 3PST-NO (3 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 530 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
SIM465000SSR RELAY SPST-NO 40A 160-450V |
8 |
|
Технический лист |
Celpac® | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 0 ~ 10VDC | 160 V ~ 450 V | 40 A | - | - | -55°C ~ 100°C | - | CE, cURus | - | - |
|
SGT8698500SSR RELAY 3PST-NO 125A 24-520V |
10 |
|
Технический лист |
cel3pac® | Box | Active | Chassis Mount | 3PST-NO (3 Form A) | AC, Zero Cross | 24 ~ 255VAC/DC | 24 V ~ 520 V | 125 A | 2 mOhms | - | -40°C ~ 100°C | - | CE, cURus, EAC, UKCA | - | - |
|
|
GN350ESRSSR RELAY 3PST-NO 50A 48-530V |
6 |
|
Технический лист |
GN3 | Bulk | Active | DIN Rail | 3PST-NO (3 Form A) | AC | 18 ~ 36VAC | 48 V ~ 530 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
DP4R60E20HSSR RELAY SPST-NO 20A 1-48V |
8 |
|
Технический лист |
DP | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 18 ~ 32VDC | 1 V ~ 48 V | 20 A | 140 mOhms | Screw Terminal | -30°C ~ 80°C | - | CE, cURus, IEC | - | - |
|
20LPCV2415SSR RELAY SPST-NO 15A 20-300V |
5 |
|
Технический лист |
LPCV | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 4 ~ 20mA | 20 V ~ 300 V | 15 A | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | - | CE | - | - |
|

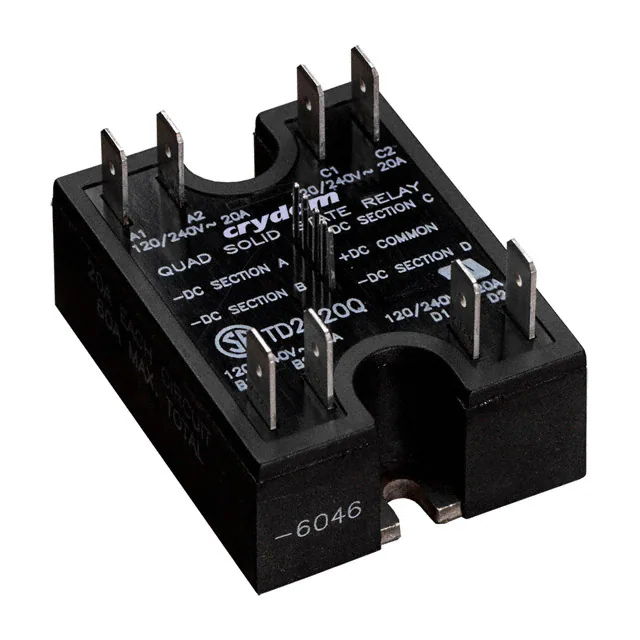

TD2420Q-10SSR RELAY SPST-NO 20A 24-280V |
3 |
|
Технический лист |
T | Bulk | Not For New Designs | Chassis Mount | SPST-NO (1 Form A) x 4 | AC, Zero Cross | 4 ~ 15VDC | 24 V ~ 280 V | 20 A | - | Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
G3PH-5075B DC5-24SSR RELAY SPST-NO 75A 180-480V |
2 |
|
Технический лист |
G3PH | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 5 ~ 24VDC | 180 V ~ 480 V | 75 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
CMD48125SSR RELAY SPST-NO 125A 48-530V |
2 |
|
Технический лист |
CMD48 | Bulk | Not For New Designs | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 530 V | 125 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus | - | - |
|
|
10LPCV2425SSR RELAY SPST-NO 25A 20-300V |
4 |
|
Технический лист |
LPCV | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 0 ~ 10VDC | 20 V ~ 300 V | 25 A | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | - | CE | - | - |
|
|
20LPCV2425SSR RELAY SPST-NO 25A 20-300V |
0 |
|
Технический лист |
LPCV | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 4 ~ 20mA | 20 V ~ 300 V | 25 A | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | - | CE | - | - |
|
|
10LPCV24110SSR RELAY SPST-NO 110A 20-300V |
3 |
|
Технический лист |
LPCV | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 0 ~ 10VDC | 20 V ~ 300 V | 110 A | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | - | CE | - | - |
|
TLP171A(FSSR RELAY SPST-NO 400MA 0-60V |
90 |
|
Технический лист |
TLP171A | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 60 V | 400 mA | 2 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | cUL, UL, VDE | - | - |
|
|
ISP40SMT&RSSR RELAY SPST-NO 120MA 0-400V |
1,000 |
|
Технический лист |
ISP | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.18VDC | 0 V ~ 400 V | 120 mA | 30 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | - | - | - |
|
|
IS40SMT&RSSR RELAY SPST-NO 120MA 0-400V |
1,000 |
|
Технический лист |
IS | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.18VDC | 0 V ~ 400 V | 120 mA | 30 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | - | - | - |
|
TLP240D(LF1,FSSR RELAY SPST-NO 250MA 0-200V |
100 |
|
Технический лист |
TLP240D | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 200 V | 250 mA | 8 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | CQC, cUL, UL, VDE | - | - |
|
|
TLP240GA(FSSR RELAY SPST-NO 120MA 0-400V |
62 |
|
Технический лист |
TLP240GA | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | PC Pin | -40°C ~ 85°C | 4-DIP | CSA, CQC, cUL, UL | - | - |
|
|
TLP240G(FSSR RELAY SPST-NO 100MA 0-350V |
59 |
|
- |
TLP240G | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 350 V | 100 mA | 50 Ohms | PC Pin | -40°C ~ 85°C | 4-DIP | CQC, cUL, UL VDE | - | - |
|
|
TLP240G(LF1,FSSR RELAY SPST-NO 100MA 0-350V |
50 |
|
- |
TLP240G | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 350 V | 100 mA | 50 Ohms | Gull Wing | -40°C ~ 85°C | 4-SMD | CQC, cUL, UL VDE | - | - |
