Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84137910NSSR RELAY SPST-NO 25A 24-280V |
13 |
|
Технический лист |
GNA | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, VDE | - | - |
|
CL240D10RSSR RELAY SPST-NO 10A 24-280V |
0 |
|
Технический лист |
CL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus | - | - |
|
2900369SSR RELAY SPST-NO 750MA 24-253V |
9 |
|
Технический лист |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 24VDC | 24 V ~ 253 V | 750 mA | - | Spring Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
|
DC60SA5SSR RELAY SPST-NO 5A 3-60V |
11 |
|
Технический лист |
DC60 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 90 ~ 280VAC | 3 V ~ 60 V | 5 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|

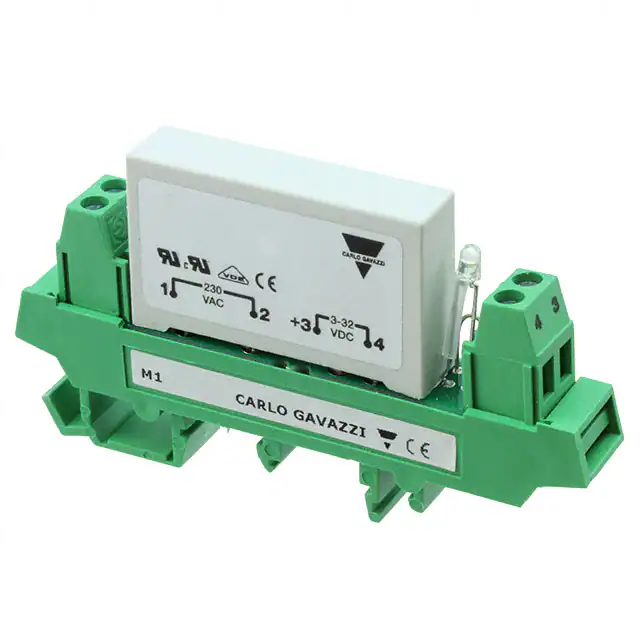

RP1A23D5M1SSR RELAY SPST-NO 5A 12-265V |
15 |
|
Технический лист |
RP1A | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 5 ~ 34VDC | 12 V ~ 265 V | 5 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cUR, UR | - | - |
|
EL240A30-24PSSR RELAY SPST-NO 30A 24-280V |
50 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 21 ~ 27VDC | 24 V ~ 280 V | 30 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
CL240D05RCSSR RELAY SPST-NO 5A 24-280V |
22 |
|
Технический лист |
CL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 5 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus | - | - |
|
DR24D03RSSR RELAY SPST-NO 3A 24-280V |
36 |
|
Технический лист |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 280 V | 3 A | - | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|

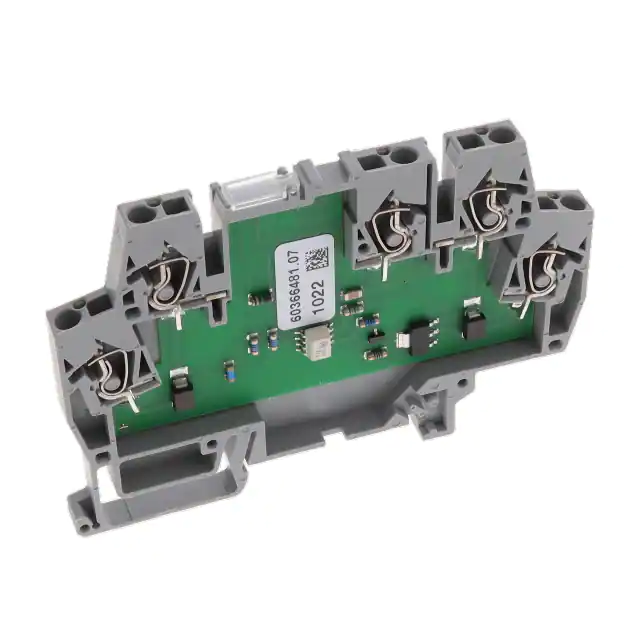

859-795SSR RELAY SPST-NO 100MA 3-30V |
21 |
|
Технический лист |
- | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 3 V ~ 30 V | 100 mA | - | Spring Terminal | -40°C ~ 70°C | - | CCC, CE, EAC, UKEx, UL | - | - |
|
SKL20120SSR RELAY SPST-NO 16A 12-280V |
7 |
|
Технический лист |
- | Box | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 24VDC | 12 V ~ 280 V | 16 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | cURus, UL | - | - |
|
|
EL100D5-05SSR RELAY SPST-NO 5A 3-100V |
14 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 8VDC | 3 V ~ 100 V | 5 A | 40 mOhms | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
G3FD-X03S-VD DC4-24SSR RELAY SPST-NO 3A 3-52.8V |
9 |
|
Технический лист |
G3FD | Bulk | Active | Socketable | SPST-NO (1 Form A) | DC | 4 ~ 24VDC | 3 V ~ 52.8 V | 3 A | - | Plug In | -30°C ~ 80°C | - | CE, CSA, UR, VDE | - | - |
|
|
EL100D10-24SSR RELAY SPST-NO 10A 3-100V |
15 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 21 ~ 27VDC | 3 V ~ 100 V | 10 A | 10 mOhms | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
2966650SSR RELAY SPST-NO 3A 3-33V |
27 |
|
Технический лист |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 120VAC/DC | 3 V ~ 33 V | 3 A | - | Screw Terminal | -20°C ~ 60°C | Module | EN, IEC | - | - |
|
2982728SSR RELAY SPST-NO 0-5V |
23 |
|
Технический лист |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 0 V ~ 5 V | - | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|
G3F-203SN-VD DC5-24SSR RELAY SPST-NO 3A 75-264V |
11 |
|
Технический лист |
G3F | Bulk | Active | Socketable | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 28VDC | 75 V ~ 264 V | 3 A | - | Plug In | -30°C ~ 80°C | - | CE, CSA, UR, VDE | - | - |
|
SO842074SSR RELAY SPST-NO 25A 12-275V |
42 |
|
Технический лист |
okpac® | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 12 V ~ 275 V | 25 A | 16 mOhms | Screw Terminal | -40°C ~ 90°C | - | CE | - | - |
|
857-161SSR RELAY SPST-NO 3A 0-30V |
18 |
|
Технический лист |
857 | Tube | Active | Through Hole | SPST-NO (1 Form A) | DC | 24VDC | 0 V ~ 30 V | 3 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | UL | - | - |
|
CMXE60D10SSR RELAY SPST-NO 10A 0-60V |
25 |
|
Технический лист |
CMX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 20 ~ 28VDC | 0 V ~ 60 V | 10 A | 18 mOhms | PC Pin | -10°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
2900392SSR RELAY SPST-NO 3A 12-140V |
10 |
|
Технический лист |
PLC-OPT | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 36VDC | 12 V ~ 140 V | 3 A | - | Screw Terminal | -25°C ~ 60°C | - | CE, DNV, UKCA | - | - |
