Твердотельные реле (SSR)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Тип выхода | Напряжение - Вход | Напряжение - нагрузка | Ток нагрузки | Сопротивление в открытом состоянии (макс.) | Тип вывода | Рабочая температура | Устройство поставщика Упаковка | Сертифицирующее агентство | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

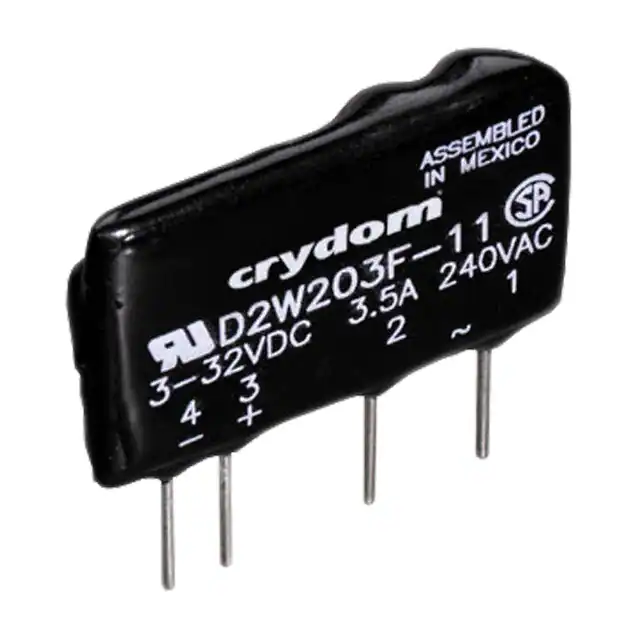

D2W203F-11SSR RELAY SPST-NO 3.5A 24-280V |
75 |
|
Технический лист |
D2W | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 3.5 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CE, CSA, cURus | - | - |
|
DMO063SSR RELAY SPST-NO 3A 0-60V |
67 |
|
Технический лист |
DMO | Tube | Active | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 10VDC | 0 V ~ 60 V | 3 A | 130 mOhms | PC Pin | -30°C ~ 80°C | 4-Mini SIP | CE | - | - |
|
G3VM-61MT(TR01)SSR RELAY SPST-NO 800MA 0-60V |
22 |
|
Технический лист |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 2.4VDC | 0 V ~ 60 V | 800 mA | 800 mOhms | SMD (SMT) Tab | -40°C ~ 85°C | Module | - | - | - |
|

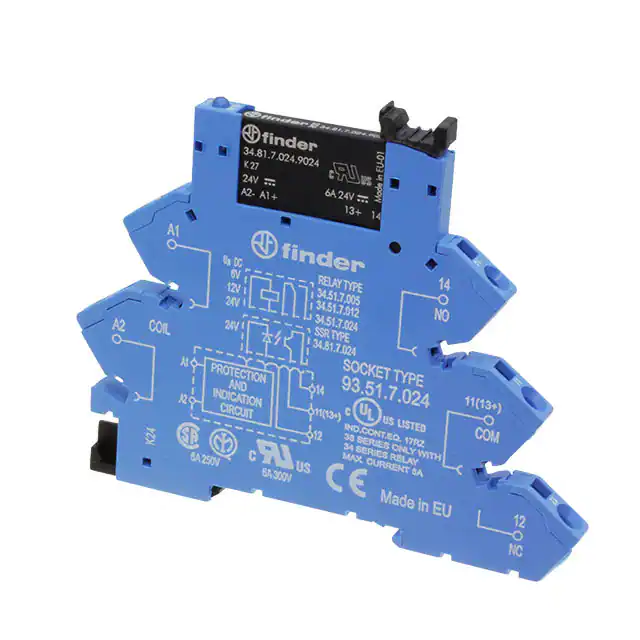

38.91.7.024.9024SSR RELAY SPST-NO 6A 1.5-33V |
50 |
|
Технический лист |
38 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 1.5 V ~ 33 V | 6 A | - | Spring Terminal | -20°C ~ 55°C | Module | cURus | - | - |
|
AQS221R2SSSR RELAY SPST-NO 160MA 0-40V |
36 |
|
Технический лист |
PhotoMOS™ AQS | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 4 | AC, DC (RF) | 1.25VDC | 0 V ~ 40 V | 160 mA | 1.25 Ohms | Gull Wing | -40°C ~ 85°C | 16-SOP | BSI, CSA, TUV, UR | - | - |
|
1127290000SSR RELAY SPST-NO 2A 3-33V |
88 |
|
Технический лист |
TERMSERIES | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 2 A | - | Spring Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|

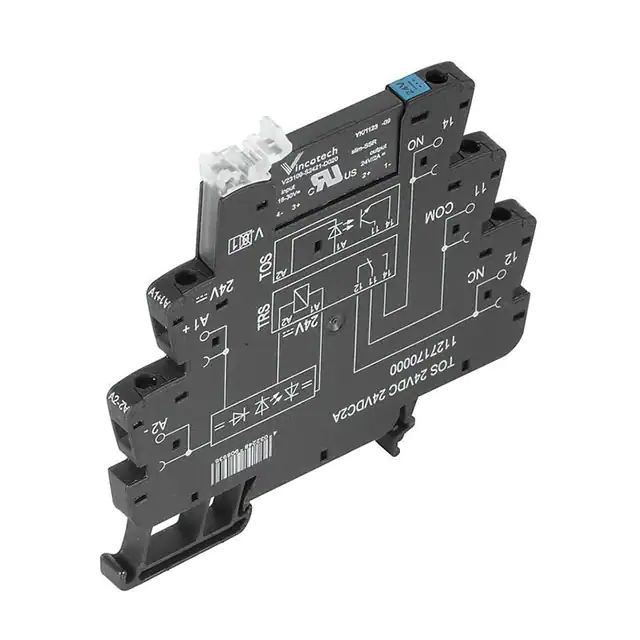

1127170000SSR RELAY SPST-NO 2A 3-33V |
61 |
|
Технический лист |
TERMSERIES | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 2 A | - | Screw Terminal | -20°C ~ 60°C | - | CE, cULus, DNV, UKCA | - | - |
|
DC60S3-BSSR RELAY SPST-NC 3A 3-60V |
39 |
|
Технический лист |
DC60 | Bulk | Active | Chassis Mount | SPST-NC (1 Form B) | DC | 3.5 ~ 32VDC | 3 V ~ 60 V | 3 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
SSM1A16BDSSR RELAY SPST-NO 6A 24-280V |
44 |
|
Технический лист |
Harmony | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 6 A | - | Screw Terminal | -30°C ~ 80°C | - | CSA, UL | - | - |
|
SPF480D25SSR RELAY SPST-NO 25A 48-660V |
95 |
|
Технический лист |
SPF, PowerFin™ | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 15VDC | 48 V ~ 660 V | 25 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|

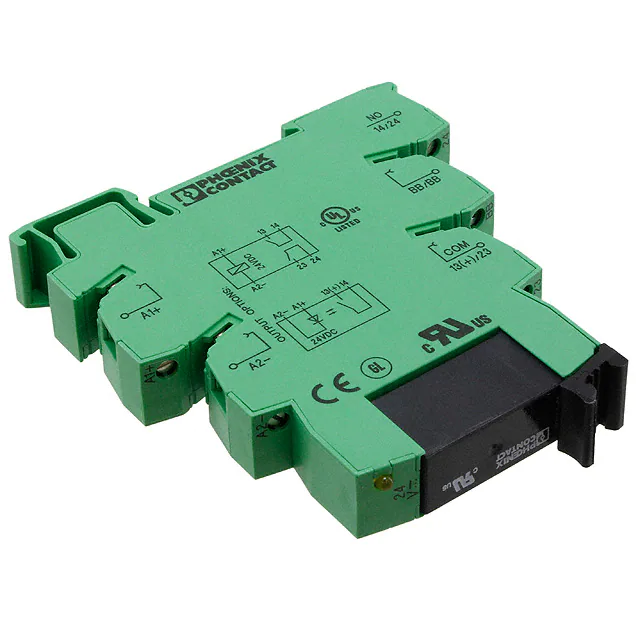

2982786SSR RELAY SPST-NO 5A 3-33V |
66 |
|
Технический лист |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 5 A | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|
EL100D5-24SSR RELAY SPST-NO 5A 3-100V |
90 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 21 ~ 27VDC | 3 V ~ 100 V | 5 A | 40 mOhms | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
CL240D10CSSR RELAY SPST-NO 10A 24-280V |
65 |
|
Технический лист |
CL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus | - | - |
|
|
EL100D10-05SSR RELAY SPST-NO 10A 3-100V |
85 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 8VDC | 3 V ~ 100 V | 10 A | 10 mOhms | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
SSM1A112BDSSR RELAY SPST-NO 12A 24-280V |
27 |
|
Технический лист |
Harmony | Box | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 12 A | - | Screw Terminal | -30°C ~ 80°C | - | CSA, UL | - | - |
|
|
EL100D10-12SSR RELAY SPST-NO 10A 3-100V |
66 |
|
Технический лист |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 10 ~ 14VDC | 3 V ~ 100 V | 10 A | 10 mOhms | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | - | CE, cURus, TUV | - | - |
|
DRA-CN048D05SSR RELAY SPST-NO 100MA 0-48V |
12 |
|
Технический лист |
DRACN | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 3 ~ 12VDC | 0 V ~ 48 V | 100 mA | - | Screw Terminal | -25°C ~ 60°C | - | CE, cURus, UR | - | - |
|
DR06D03SSR RELAY SPST-NO 3A 1-60V |
5 |
|
Технический лист |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 60 V | 3 A | - | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|
5603260SSR RELAY SPST-NO 3A 3-33V |
19 |
|
Технический лист |
PLC-OSC | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 33 V | 3 A | - | Screw Terminal | -20°C ~ 60°C | - | EN, IEC | - | - |
|
D2425SSR RELAY SPST-NO 25A 24-280V |
13 |
|
Технический лист |
1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
