Трафареты для пайки, шаблоны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество положений | Шаг | Внешний размер | Внутренний размер | Тепловая центральная площадка | Материал |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

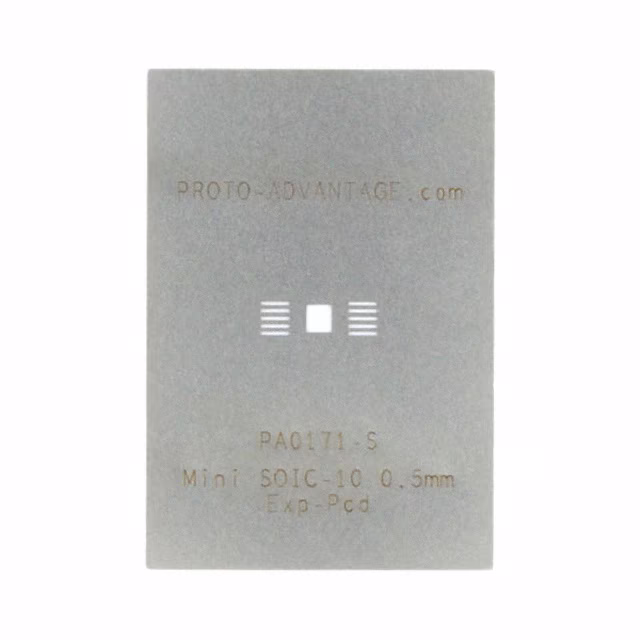

PA0171-SMINI SOIC-10 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | Mini SOIC | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.315" L x 0.067" W (8.00mm x 1.70mm) | Stainless Steel |
|
PA0048-SMLP/DFN-5 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | DFN | 5 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.197" L x 0.039" W (5.00mm x 1.00mm) | Stainless Steel |
|
PA0051-SMLP/MLF-11 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | MLP/MLF | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.197" L x 0.039" W (5.00mm x 1.00mm) | Stainless Steel |
|
PA0052-SMLP/MLF-14 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | MLP/MLF | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.276" L x 0.087" W (7.00mm x 2.20mm) | Stainless Steel |
|

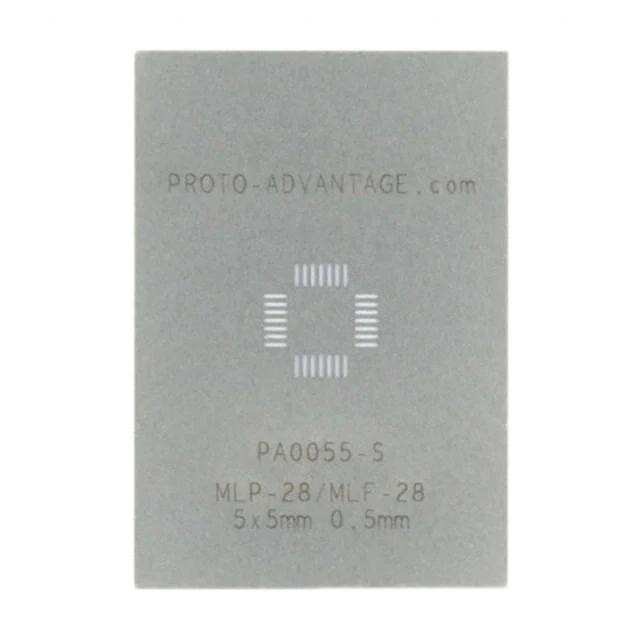

PA0055-SMLP/MLF-28 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | MLP/MLF | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|

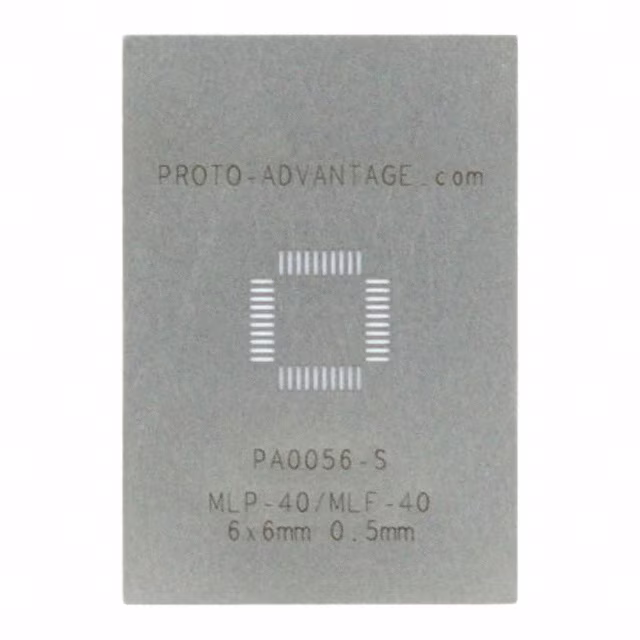

PA0056-SMLP/MLF-40 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | MLP/MLF | 40 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | Stainless Steel |
|

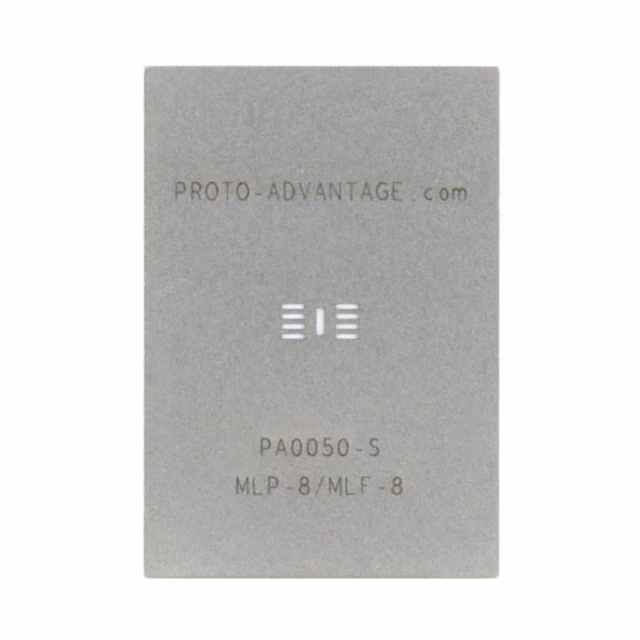

PA0050-SMLP/MLF-8 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | MLP/MLF | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.197" L x 0.039" W (5.00mm x 1.00mm) | Stainless Steel |
|

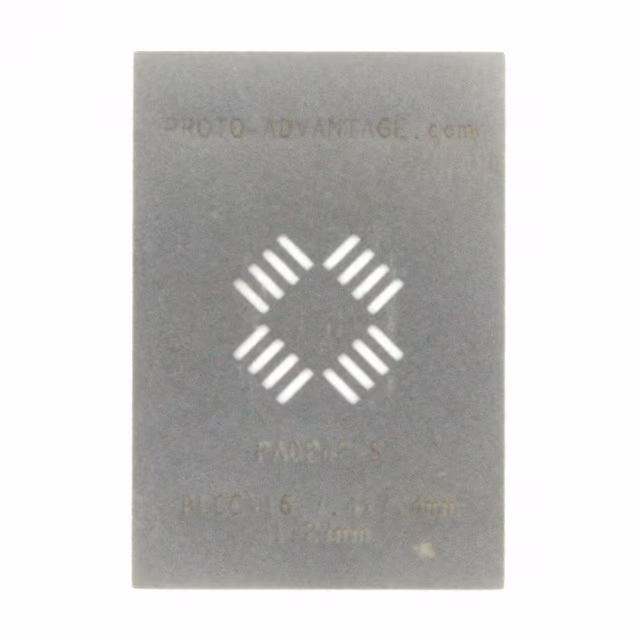

PA0242-SPLCC-16 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | PLCC/JLCC | 16 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.291" L x 0.291" W (7.40mm x 7.40mm) | - | Stainless Steel |
|

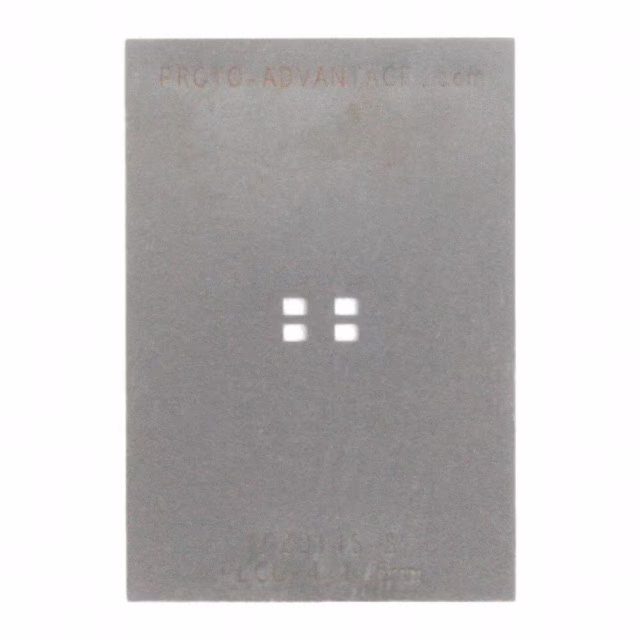

IPC0148-SPLCC-4 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | PLCC/JLCC | 4 | 0.059" (1.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.126" L x 0.110" W (3.20mm x 2.80mm) | - | Stainless Steel |
|

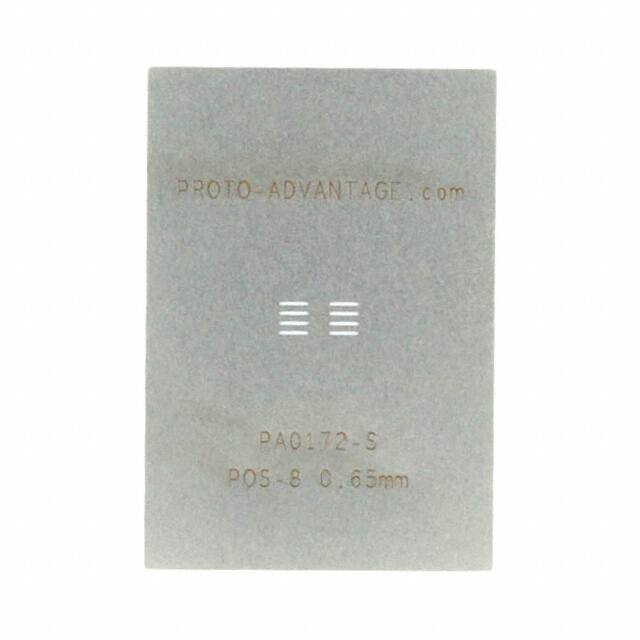

PA0172-SPOS-8 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | POS | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.098" W (3.00mm x 2.50mm) | - | Stainless Steel |
|

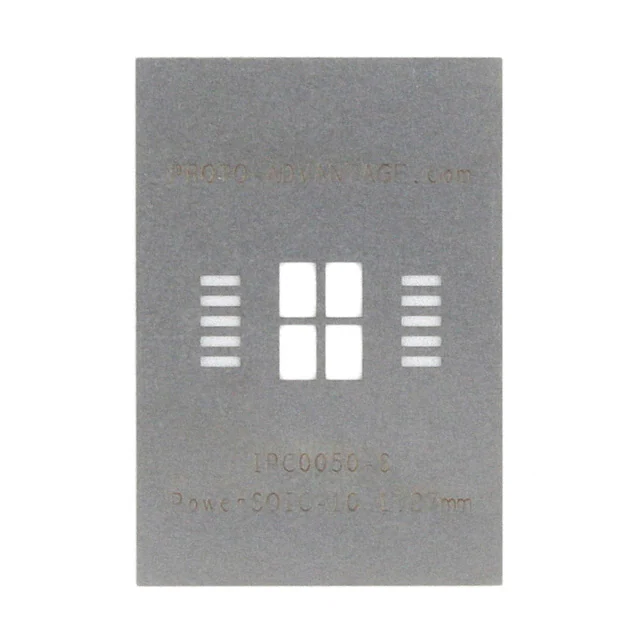

IPC0050-SPOWERSOIC-10/PSOP-10/HSOP-10 STE |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 10 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.370" L x 0.295" W (9.40mm x 7.50mm) | 0.413" L x 0.291" W (10.50mm x 7.40mm) | Stainless Steel |
|
IPC0114-SPOWERSSO-28 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | PowerSSO | 28 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.407" L x 0.295" W (10.35mm x 7.50mm) | 0.272" L x 0.177" W (6.90mm x 4.50mm) | Stainless Steel |
|

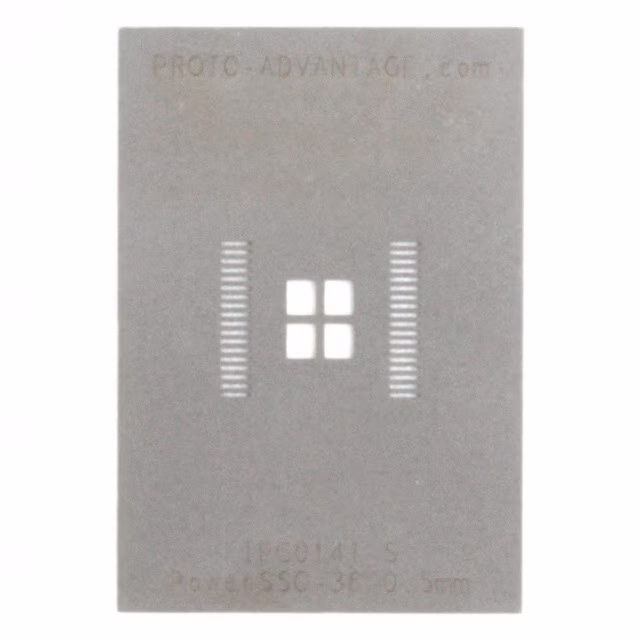

IPC0141-SPOWERSSO-36 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | PowerSSO | 36 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.407" L x 0.295" W (10.35mm x 7.50mm) | 0.217" L x 0.185" W (5.50mm x 4.70mm) | Stainless Steel |
|

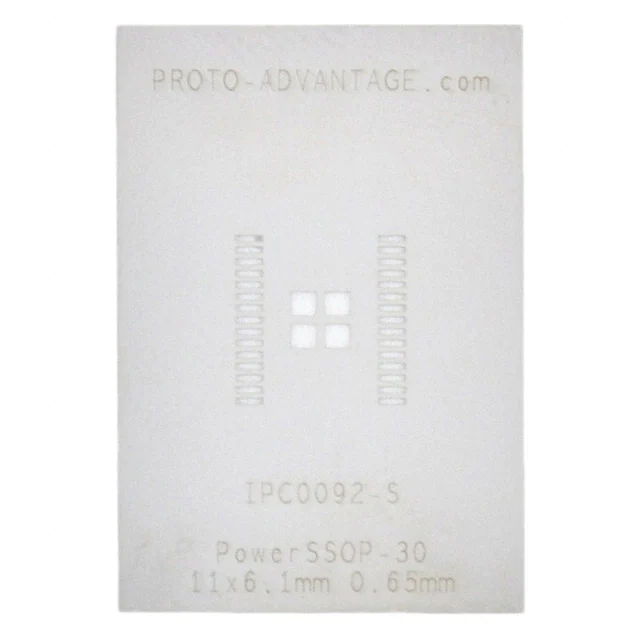

IPC0092-SPOWERSSOP-30 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | PowerSSOP | 30 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.433" L x 0.240" W (11.00mm x 6.10mm) | 0.162" L x 0.154" W (4.11mm x 3.91mm) | Stainless Steel |
|
IPC0093-SPOWERSSOP-32 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | PowerSSOP | 32 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.433" L x 0.240" W (11.00mm x 6.10mm) | 0.162" L x 0.154" W (4.11mm x 3.91mm) | Stainless Steel |
|
IPC0094-SPOWERSSOP-38 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | PowerSSOP | 38 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.492" L x 0.240" W (12.50mm x 6.10mm) | 0.162" L x 0.154" W (4.11mm x 3.91mm) | Stainless Steel |
|

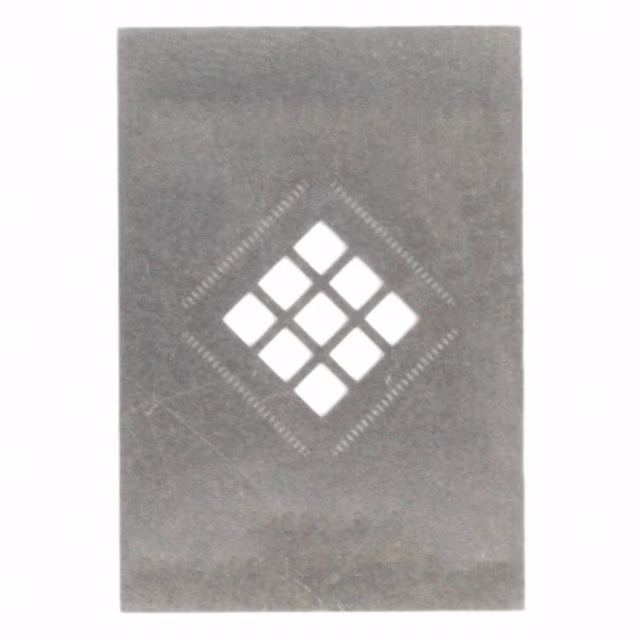

IPC0118-SQFN-100 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 100 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.398" L x 0.398" W (10.10mm x 10.10mm) | Stainless Steel |
|

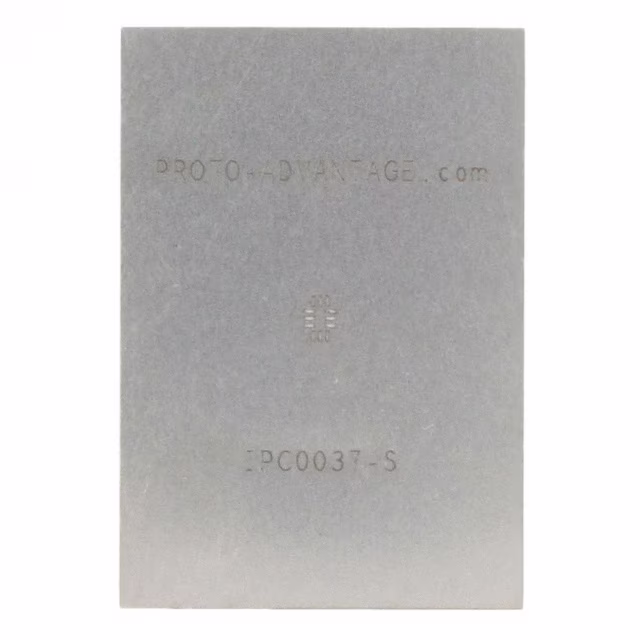

IPC0037-SQFN-12 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 12 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | - | Stainless Steel |
|

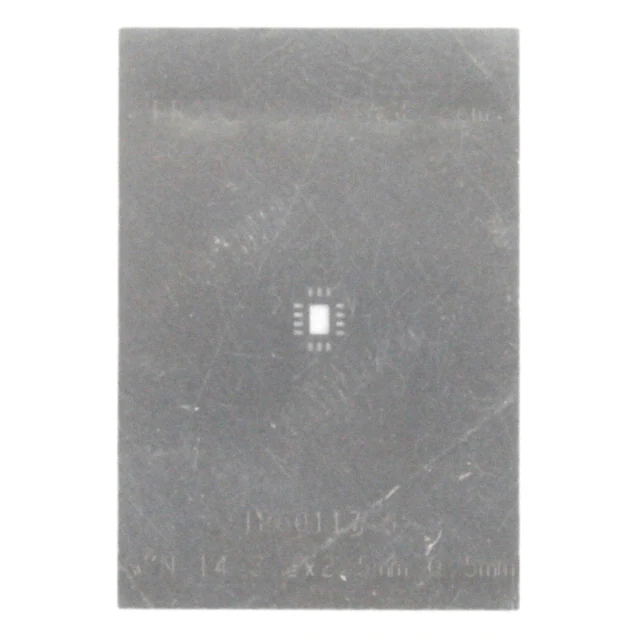

IPC0117-SQFN-14 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" L x 0.055" W (2.10mm x 1.40mm) | Stainless Steel |
|

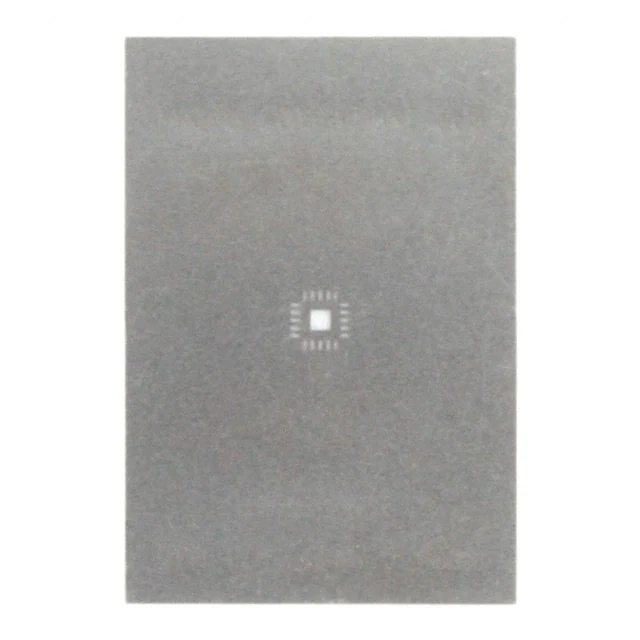

IPC0108-SQFN-20 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.018" (0.45mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" L x 0.061" W (1.55mm x 1.55mm) | Stainless Steel |
