Трафареты для пайки, шаблоны
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество положений | Шаг | Внешний размер | Внутренний размер | Тепловая центральная площадка | Материал |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

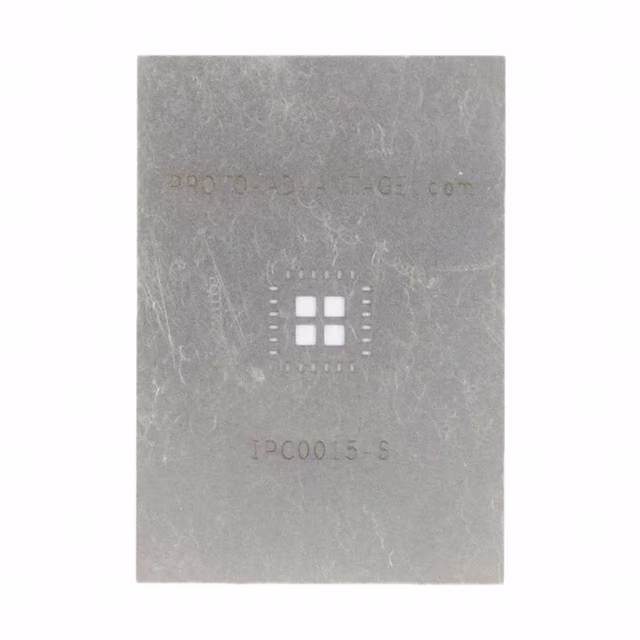

IPC0015-SQFN-24 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 24 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Stainless Steel |
|

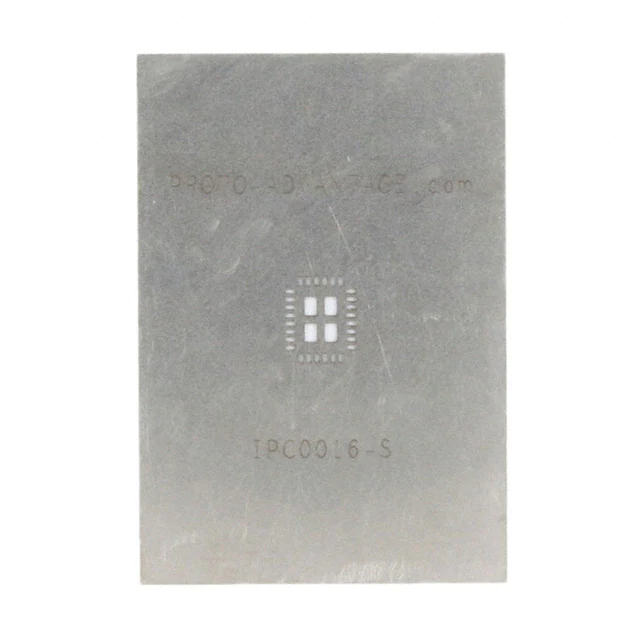

IPC0016-SQFN-28 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.138" L x 0.098" W (3.50mm x 2.50mm) | Stainless Steel |
|

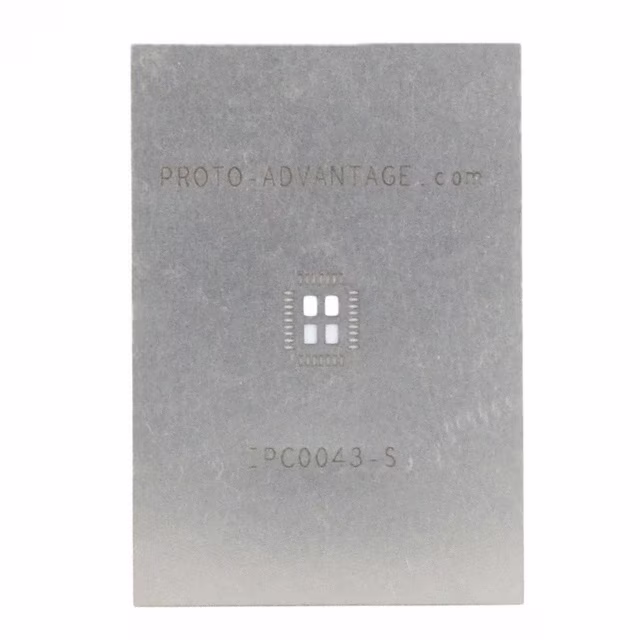

IPC0043-SQFN-32 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 32 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.138" L x 0.098" W (3.50mm x 2.50mm) | Stainless Steel |
|

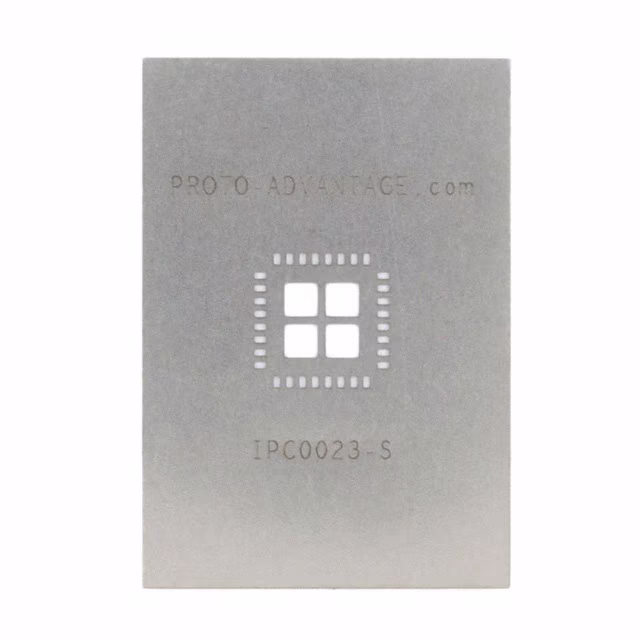

IPC0023-SQFN-32 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 32 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.228" L x 0.228" W (5.80mm x 5.80mm) | Stainless Steel |
|
PA0069-SQFN-36-THIN STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 36 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | Stainless Steel |
|

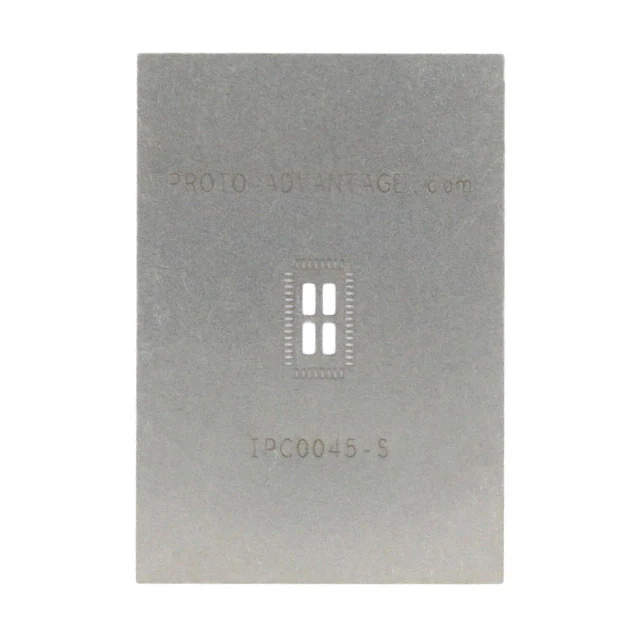

IPC0045-SQFN-46 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 46 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.157" W (7.00mm x 4.00mm) | 0.217" L x 0.098" W (5.50mm x 2.50mm) | Stainless Steel |
|

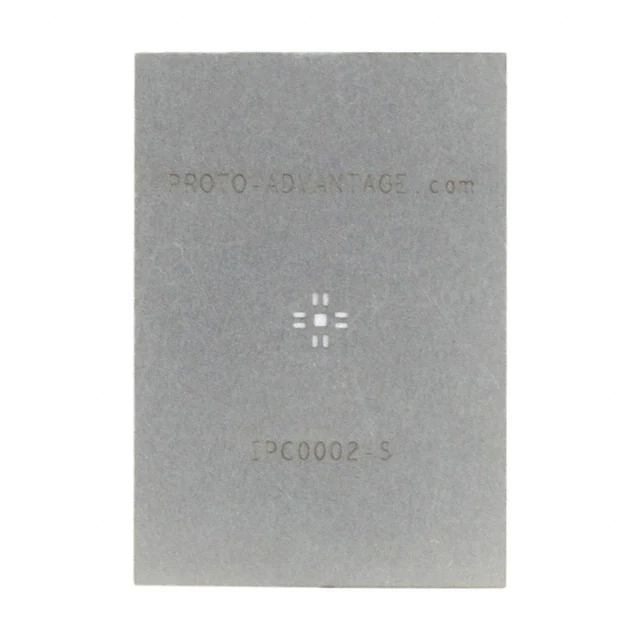

IPC0002-SQFN-8 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" L x 0.043" W (1.10mm x 1.10mm) | Stainless Steel |
|
PA0029-SQSOP-20 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | QSOP | 20 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

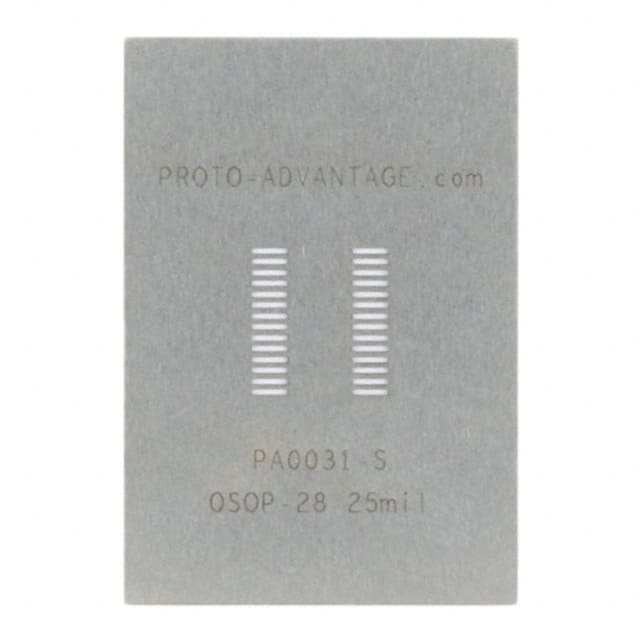

PA0031-SQSOP-28 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | QSOP | 28 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

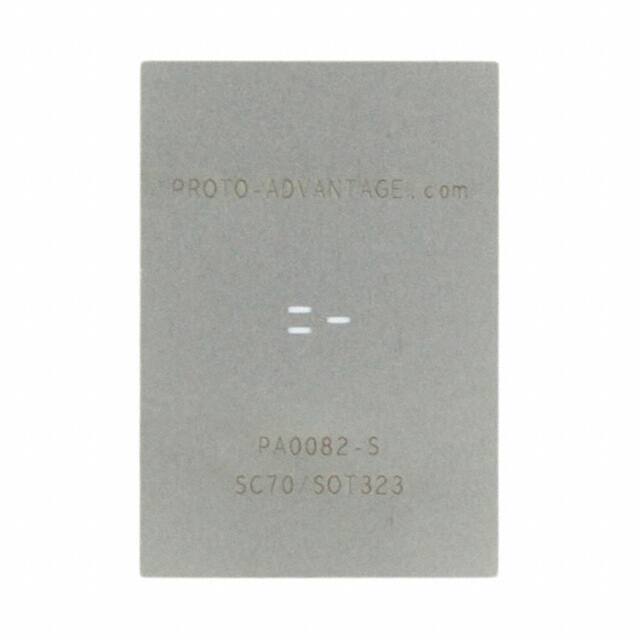

PA0082-SSC70-3/SOT-323 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | SOT/SC | 3 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0224-SSOP-40 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | SOP | 40 | 0.050" (1.27mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
|
PA0175-SSOT-223-5 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | SOT/SC | 4 | 0.059" (1.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.256" L x 0.140" W (6.50mm x 3.56mm) | 0.130" L x 0.079" W (3.30mm x 2.00mm) | Stainless Steel |
|
PA0016-SSSOP-14 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | SSOP | 14 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0021-SSSOP-30 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | SSOP | 30 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0023-SSSOP-36 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | SSOP | 36 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

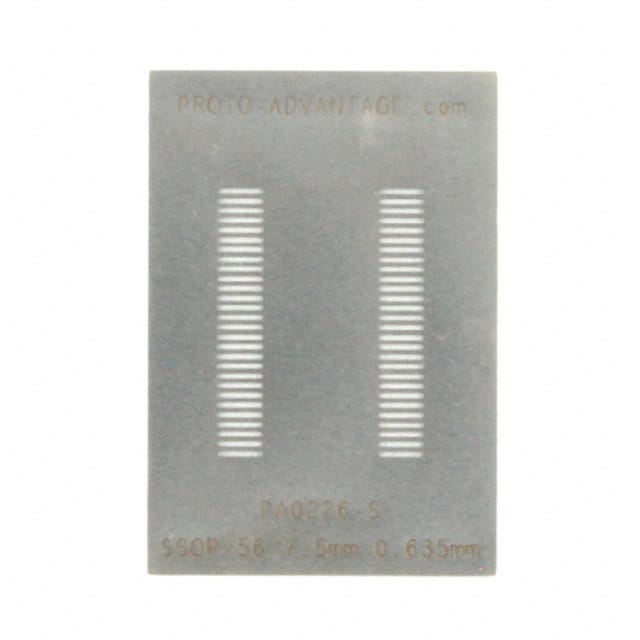

PA0226-SSSOP-56 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | SSOP | 56 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0181-SSUPERSOT-8 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | SOT/SC | 8 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.130" W (4.00mm x 3.30mm) | - | Stainless Steel |
|

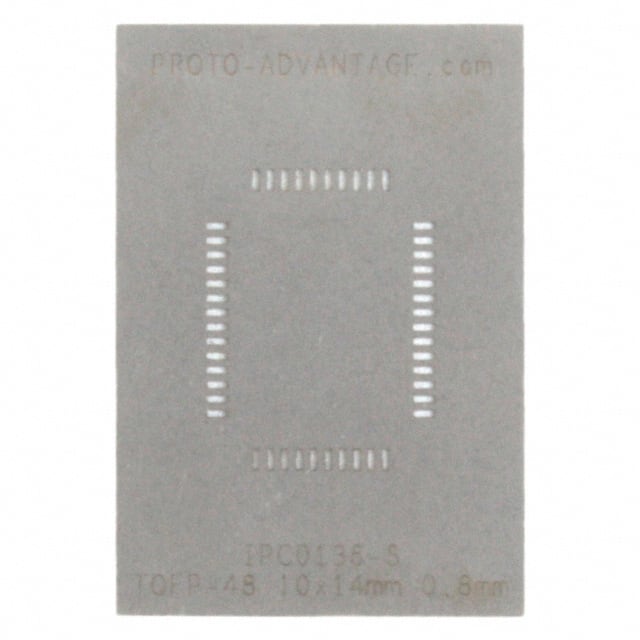

IPC0136-STQFP-48 STENCIL |
0 |
|
Технический лист |
Proto-Advantage IPC | Bulk | Active | TQFP | 48 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.394" W (14.00mm x 10.00mm) | - | Stainless Steel |
|

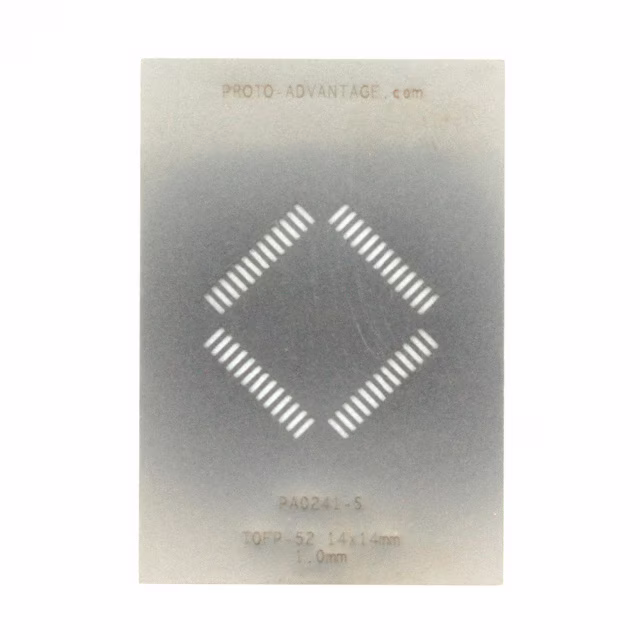

PA0241-STQFP-52 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | TQFP | 52 | 0.039" (1.00mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

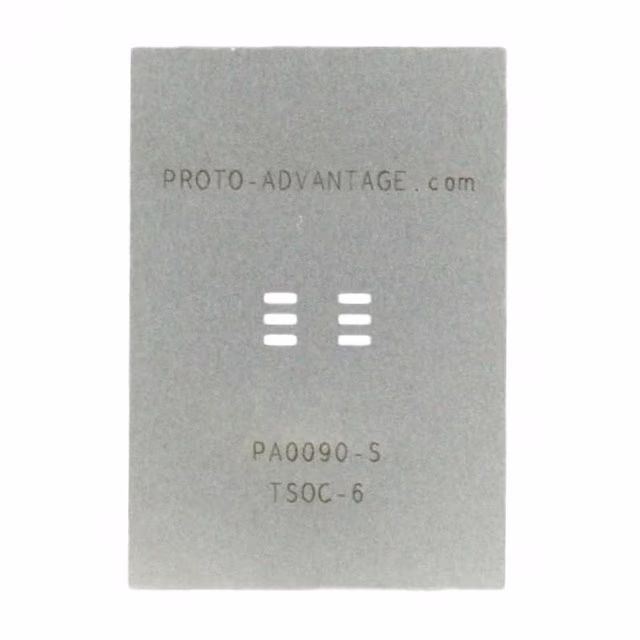

PA0090-STSOC-6 STENCIL |
0 |
|
Технический лист |
Proto-Advantage PA | Bulk | Active | TSOC | 6 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
