Ползунковые переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Время контакта | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825203-4SWITCH SLIDE 4P3T 0.4VA 20V |
0 |
|
Технический лист |
MSSA | Bulk | Active | 4P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.02mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
V80212MA08QESWITCH SLIDE DPDT 10A 125V |
8 |
|
Технический лист |
V | Tray | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Through Hole, Right Angle | PC Pin | 115V-230V Marking, Epoxy Sealed Terminals |
|
MS12LFW01ESWITCH SLIDE SPDT 6A 125V |
0 |
|
Технический лист |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
MS23ANG03SWITCH SLIDE DPDT 0.4VA 28V |
18 |
|
Технический лист |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

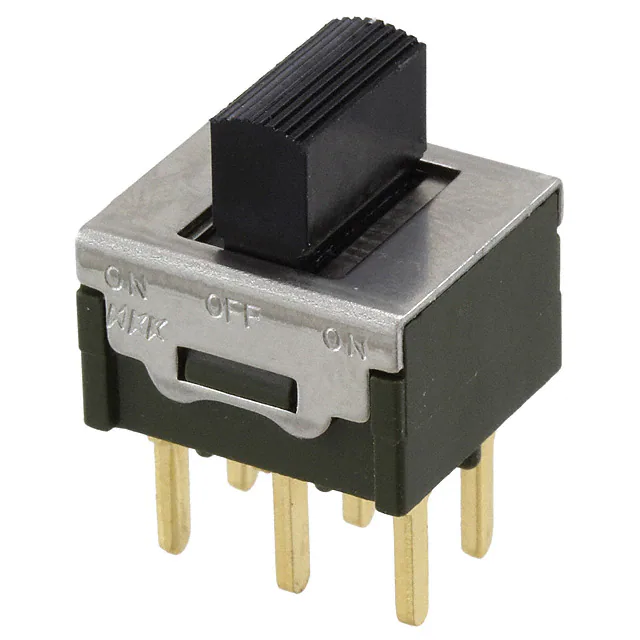

MS23BNG03SWITCH SLIDE DPDT 0.4VA 28V |
2 |
|
Технический лист |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS12ASA13SWITCH SLIDE SPDT 6A 125V |
0 |
|
Технический лист |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS22BSW13SWITCH SLIDE DPDT 6A 125V |
0 |
|
Технический лист |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS22ASW13/CULSWITCH SLIDE DPDT 6A 125V |
14 |
|
Технический лист |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

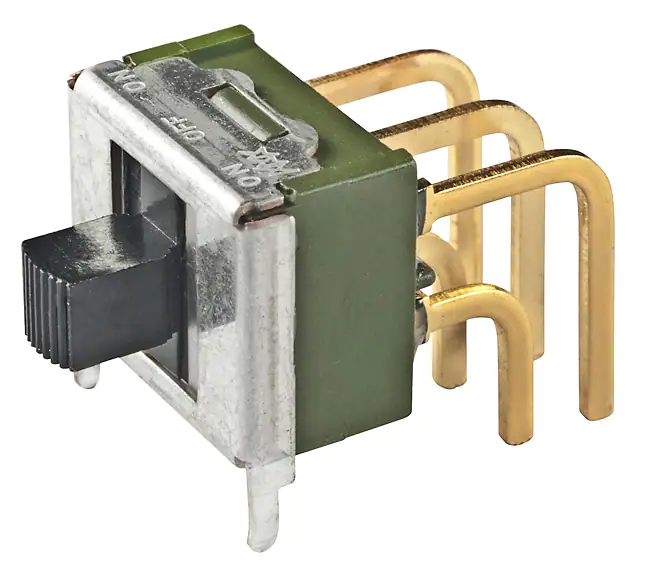

MS23ASG40SWITCH SLIDE DPDT 0.4VA 28V |
0 |
|
Технический лист |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

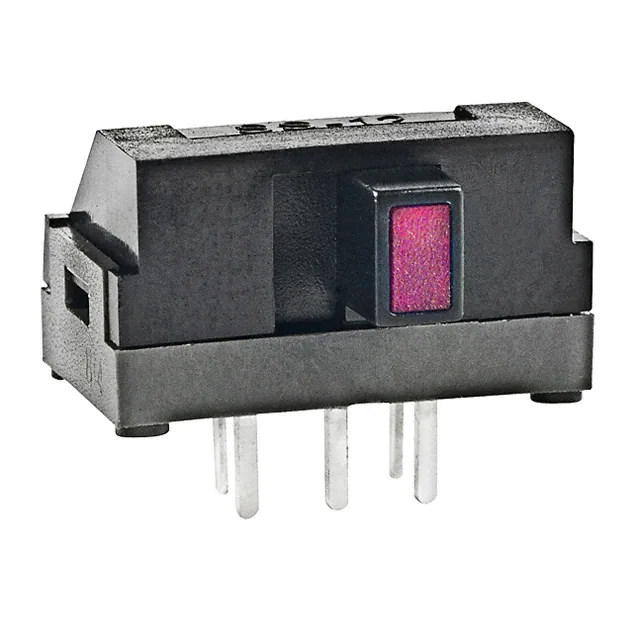

SS12SDH2LCSWITCH SLIDE SPDT 100MA 30V |
98 |
|
Технический лист |
SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|

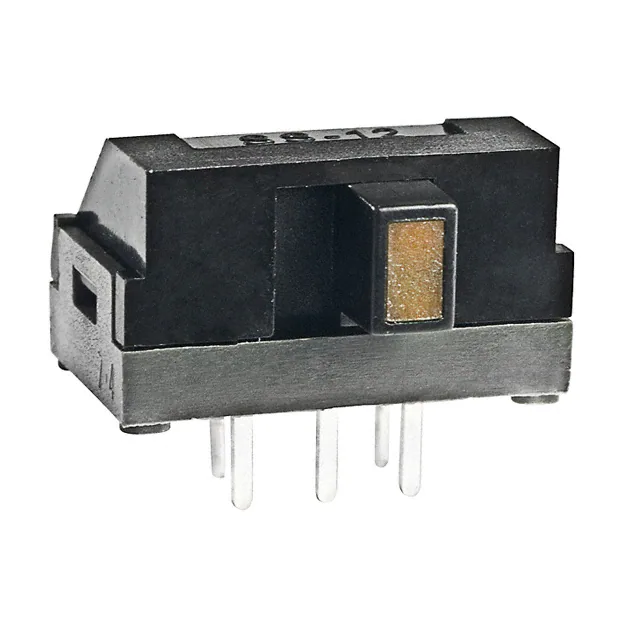

SS12SDH2LESWITCH SLIDE SPDT 100MA 30V |
45 |
|
Технический лист |
SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
SS22SDP2LESWITCH SLIDE DPDT 100MA 30V |
35 |
|
Технический лист |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

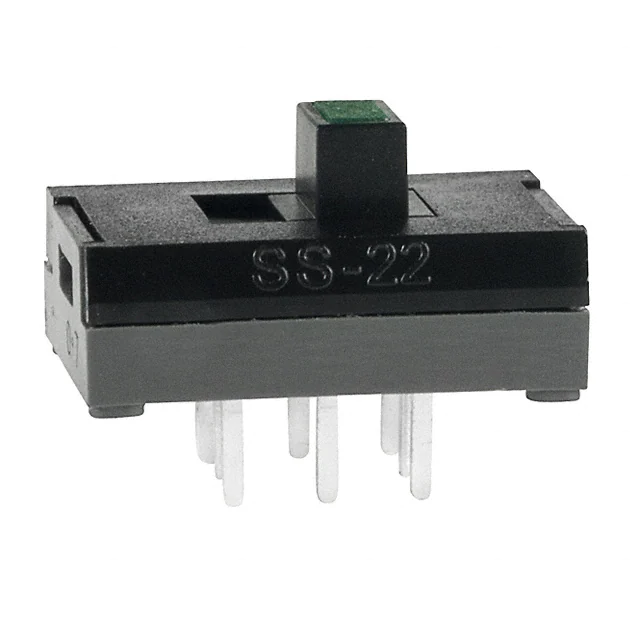

SS22SDP2LFSWITCH SLIDE DPDT 100MA 30V |
27 |
|
Технический лист |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

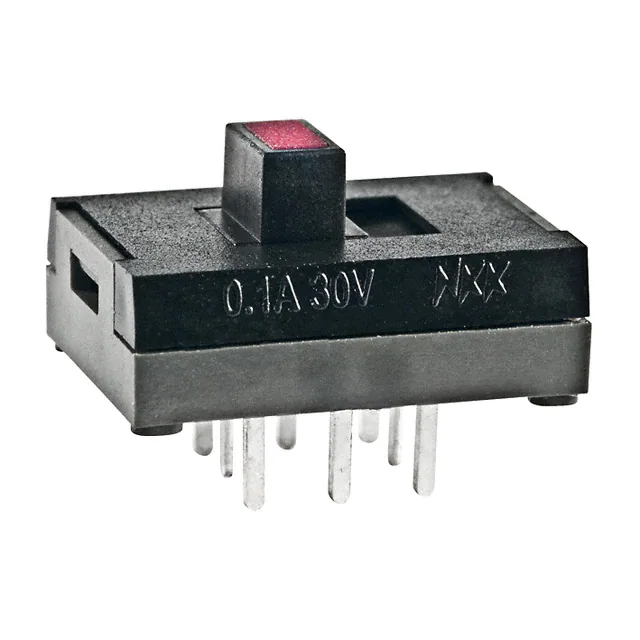

SS22SDP2LCSWITCH SLIDE DPDT 100MA 30V |
99 |
|
Технический лист |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
MS13LFW01CSWITCH SLIDE SPDT 6A 125V |
0 |
|
Технический лист |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
MS20AFW01SWITCH SLIDE SP3T 6A 125V |
0 |
|
- |
MS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | - |
|

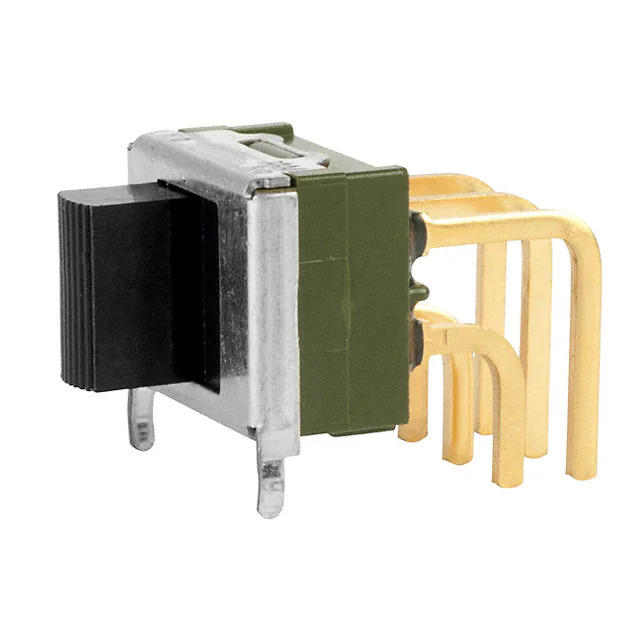

MS22BSG30SWITCH SLIDE DPDT 0.4VA 28V |
50 |
|
Технический лист |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MS12LFW01CSWITCH SLIDE SPDT 6A 125V |
0 |
|
Технический лист |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
ASF62RGSWITCH SLIDE 6PDT 0.4VA 20V |
0 |
|
Технический лист |
ASF | Tube | Obsolete | 6PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
GH46W000001SWITCH SLIDE DPDT 0.4VA 20V |
0 |
|
Технический лист |
G | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
