Ползунковые переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Время контакта | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1101M1S2ZBE2SWITCH SLIDE SPDT 0.4VA 20V |
1,112 |
|
Технический лист |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.56mm | Copper | Gold | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
1825268-2SWITCH SLIDE 4P3T 0.4VA 20V |
1,642 |
|
Технический лист |
MSS | Bulk | Active | 4P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.20mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
AS12BHSWITCH SLIDE SPDT 0.4VA 28V |
133 |
|
Технический лист |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

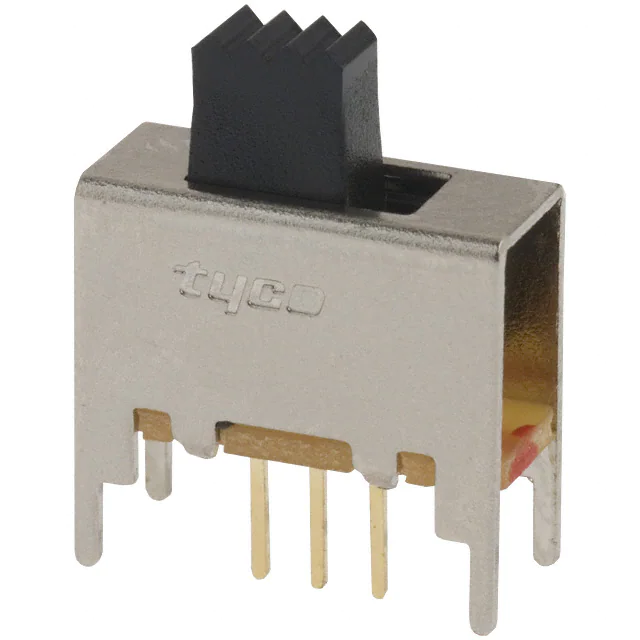

1825257-2SWITCH SLIDE SPDT 0.4VA 20V |
820 |
|
Технический лист |
MSS | Bulk | Active | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.00mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
L112022ML04QSWITCH SLIDE SPDT 4A 125V |
464 |
|
Технический лист |
L | Bulk | Active | SPDT | Not Specified | On-Mom | 4A (AC/DC) | 125 V | 28 V | Standard | 8.51mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
25336NASWITCH SLIDE SPDT 4A 125V |
1,196 |
|
Технический лист |
25000N | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825290-3SWITCH SLIDE DP3T 300MA 125V |
4,201 |
|
Технический лист |
MHS | Bulk | Active | DP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
ES01MCBESWITCH SLIDE SPDT 0.4VA 20V |
703 |
|
Технический лист |
ES | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.07mm | Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|
AS11BWSWITCH SLIDE SPST 0.4VA 28V |
190 |
|
Технический лист |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

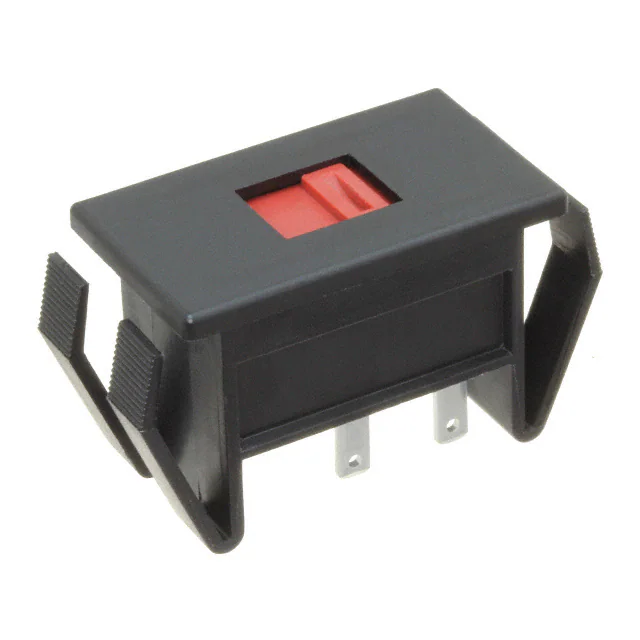

V70113S205QSWITCH SLIDE SPST 10A 125V |
137 |
|
Технический лист |
V | Bulk | Active | SPST | Not Specified | On-Off | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | No Marking |
|
L202021MS02QSWITCH SLIDE DPDT 4A 125V |
110 |
|
Технический лист |
L | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 8.51mm | Copper | Silver | Through Hole | PC Pin | - |
|
S202121SS03QSWITCH SLIDE DPDT 6A 125V |
247 |
|
Технический лист |
S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 6A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Silver | Panel Mount | Solder Lug | 115V-230V Marking |
|
48BFSP1M2QTSWITCH SLIDE SPDT 3A 125V |
193 |
|
Технический лист |
48B | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC/DC) | 125 V | 28 V | Standard | 3.10mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
GS01MABESWITCH SLIDE SPDT 0.4VA 20V |
671 |
|
Технический лист |
GS | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 1.27mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
GH36S010001SWITCH SLIDE SPDT 3A 30V |
161 |
|
Технический лист |
G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
V80102MS02QSWITCH SLIDE DPST 10A 125V |
116 |
|
Технический лист |
V | Bag | Active | DPST | Not Specified | On-Off | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Through Hole | PC Pin | O - Marking |
|
V70114S205QSWITCH SLIDE SPST 10A 125V |
388 |
|
Технический лист |
V | Bulk | Active | SPST | Not Specified | On-Off | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | O - Marking |
|

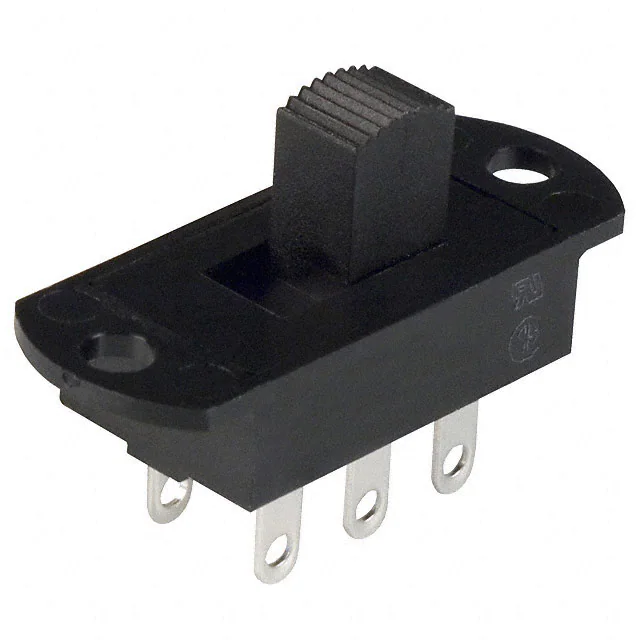

S202091SS03QSWITCH SLIDE DPDT 6A 125V |
172 |
|
Технический лист |
S | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 1A (DC) | 125 V | 125 V | Standard | 6.35mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
48BFSP1M6QTSWITCH SLIDE SPDT 3A 125V |
296 |
|
Технический лист |
48B | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC/DC) | 125 V | 28 V | Standard | 3.10mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
AS11CVSWITCH SLIDE SPST 0.4VA 28V |
629 |
|
Технический лист |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
