Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1617164-5RELAY GEN PURPOSE DPDT 1A 26.5V |
40 |
|
Технический лист |
MACT | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
1-1617110-9RELAY GENERAL PURPOSE DPDT 1A 5V |
59 |
|
Технический лист |
MGST, CII | Box | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-28776/7 |
|
7-1617347-5RELAY GEN PURPOSE DPDT 2A 26.5V |
39 |
|
Технический лист |
3SBC | Box | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 19.6 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 9 VDC | 0.82 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
|
1-1617076-13SBH1139A2 = M39016/14-002M |
250 |
|
Технический лист |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1617076-3RELAY GEN PURPOSE 4PDT 2A 26.5V |
151 |
|
Технический лист |
3SBH, CII | Box | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | - | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
EE2-12NUH-LRELAY GEN PURPOSE DPDT 2A 12V |
84 |
|
Технический лист |
EE2 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
|
G6L-1F-TR DC3RELAY TELECOM SPST 1A 3V |
49 |
|
Технический лист |
G6L | Tape & Reel (TR) | Active | Surface Mount | 3VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 60 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | CSA, UL | Telecom | - | - |
|
HFW1131K04MRELAY GEN PURPOSE DPDT 2A 26.5V |
3 |
|
Технический лист |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|
V23079B1201B301RELAY GENERAL PURPOSE DPDT 2A 5V |
96 |
|
Технический лист |
V23079, AXICOM | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | General Purpose | - | - |
|
TXS2SA-4.5V-1RELAY GEN PURPOSE DPDT 10MA 4.5V |
64 |
|
Технический лист |
TX-S | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 11.1 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.6 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
|
G6A-274P-ST15-US DC12RELAY GEN PURPOSE DPDT 2A 12V |
31 |
|
Технический лист |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 12.5 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
2903360RELAY GEN PURPOSE SPST 50MA 12V |
33 |
|
Технический лист |
RIF | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 16 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | - | General Purpose | - | - |
|

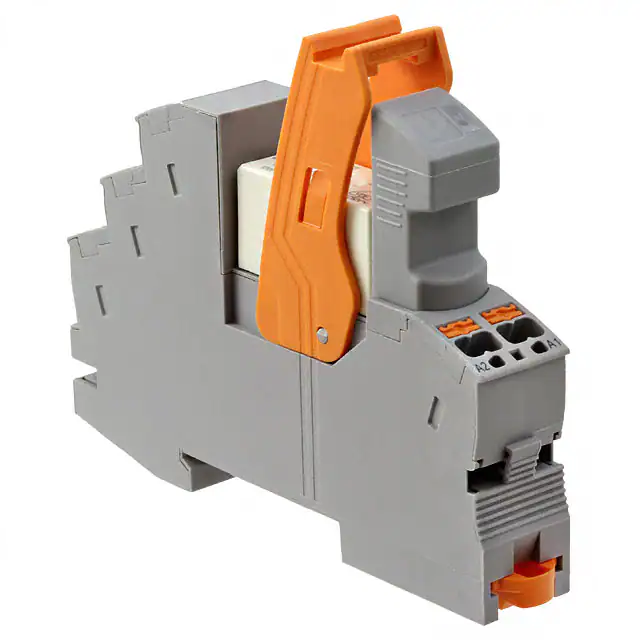

2903328RELAY GEN PURPOSE DPDT 50MA 120V |
48 |
|
Технический лист |
RIF | Bulk | Active | DIN Rail | 120VAC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 8 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Spring Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|
2900338RELAY GEN PURPOSE DPDT 50MA 24V |
62 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
2900307RELAY GEN PURPOSE SPDT 50MA 24V |
20 |
|
Технический лист |
PLC-RPT | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
|
2909655RELAY GEN PURPOSE SPDT 50MA 24V |
31 |
|
Технический лист |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 9 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 18.5 VDC | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | cULus, DNV, EAC, UL | General Purpose | - | - |
|
J1MAP-26XMRELAY GEN PURPOSE SPDT 1A 26.5V |
20 |
|
Технический лист |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/7 |
|
TX2SA-L2-3VRELAY TELECOM DPDT 2A 3V |
98 |
|
Технический лист |
TX | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 66.7 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
TX2SA-L2-12VRELAY TELECOM DPDT 2A 12V |
49 |
|
Технический лист |
TX | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 16.7 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
AGN21012RELAY TELECOM DPDT 1A 12V |
85 |
|
Технический лист |
AGN | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
