Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R10-E1Z2-V185RELAY GEN PURPOSE DPDT 2A 12V |
303 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

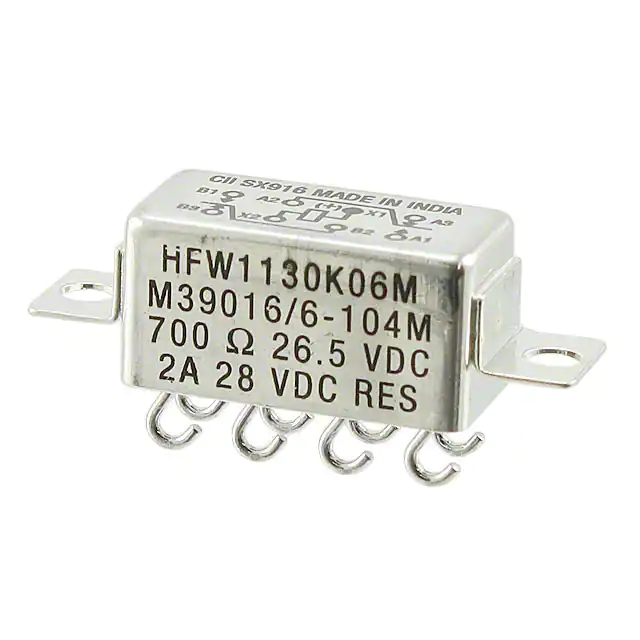

HFW1130K06MRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|
|
R10-E1Z2-S800RELAY GEN PURPOSE DPDT 2A 12V |
288 |
|
Технический лист |
R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 15 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

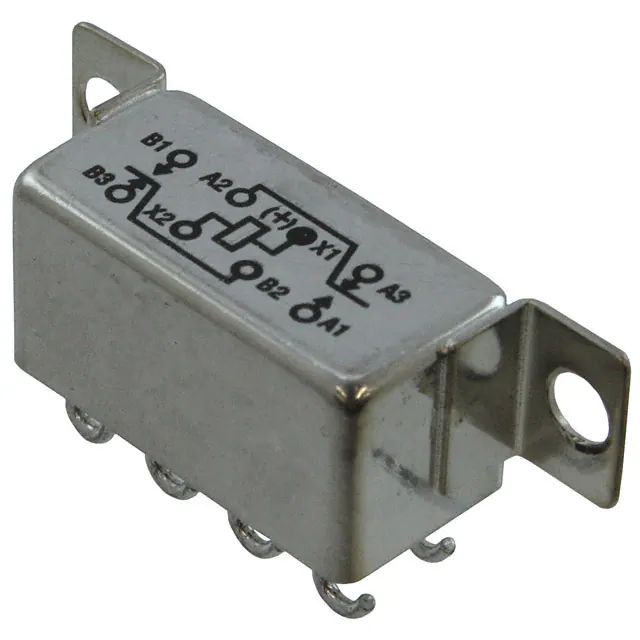

HFW1131K04PRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|
HFW1201L02MRELAY GENERAL PURPOSE DPDT 2A 5V |
43 |
|
Технический лист |
HFW, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 185.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | - | - | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/6 |
|

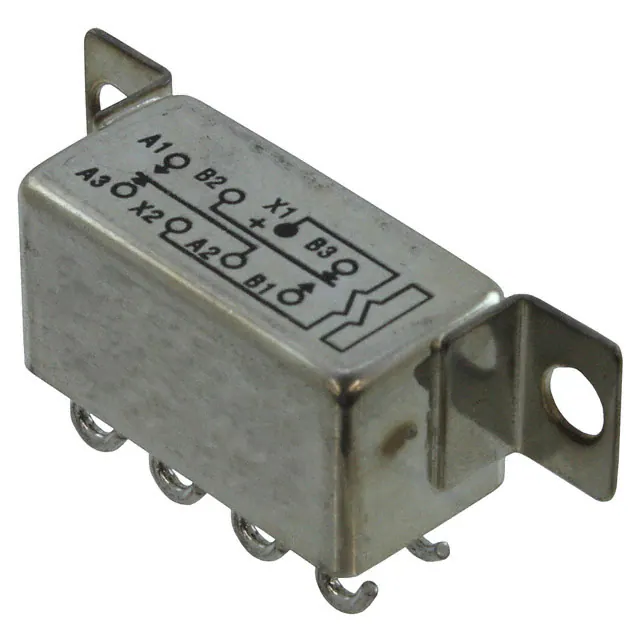

HMB1131K01MRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HMB, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | Military | - |
|
HMB1130K01MRELAY GEN PURPOSE DPDT 2A 26.5V |
11 |
|
Технический лист |
HMB, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | Military | MIL-R-39016/22 |
|
7-1393812-6RELAY GENERAL PURPOSE |
0 |
|
Технический лист |
V23054, AXICOM | Bulk | Active | Socketable | - | - | - | - | - | - | Non Latching | - | Plug In | - | - | - | - | 16 ms | 2 ms | -40°C ~ 70°C | - | - | General Purpose | - | - |
|

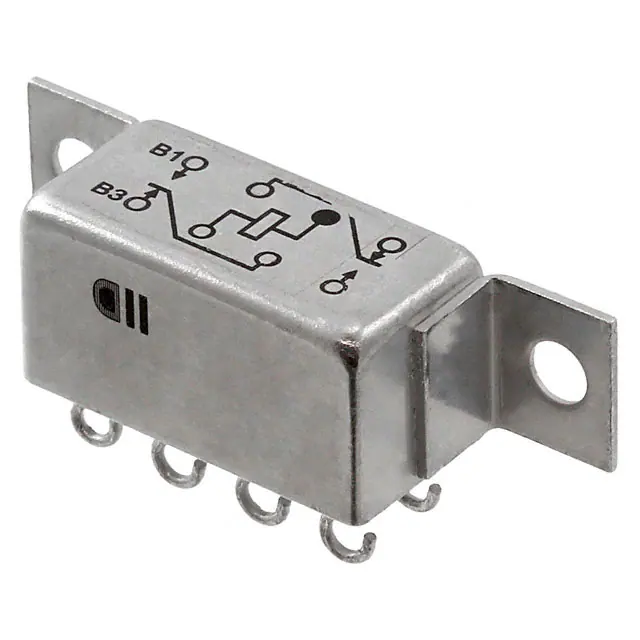

3SBC1506A2RELAY GEN PURPOSE DPDT 2A 26.5V |
10 |
|
Технический лист |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/13 |
|
3SBC1527A2RELAY GEN PURPOSE DPDT 2A 26.5V |
2 |
|
Технический лист |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/13 |
|

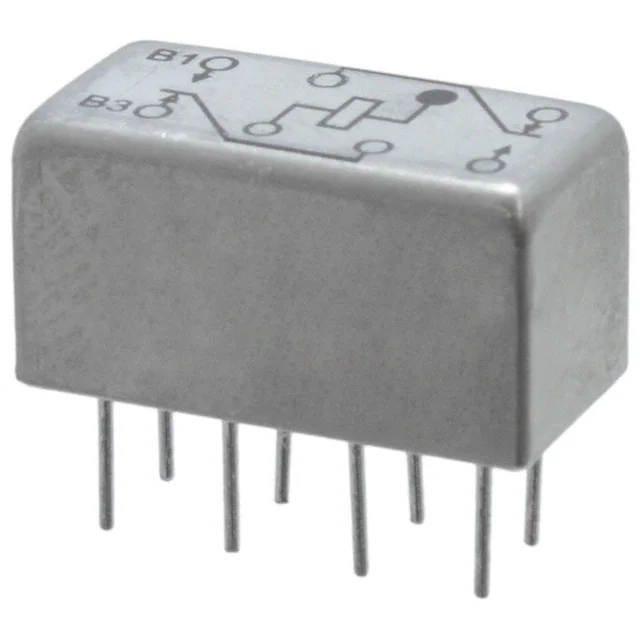

3SBC1517A2RELAY GEN PURPOSE DPDT 2A 12V |
1 |
|
Технический лист |
3SBC, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 57.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.4 VDC | 0.6 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | - | General Purpose | Military | MIL-R-39016/13 |
|
PC307-24G-XRELAY GEN PURPOSE SPDT 1A 24V |
1,075 |
|
Технический лист |
PC307 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 6.25 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 19.2 VDC | 2.4 VDC | 5 ms | 5 ms | -30°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
UD2-4.5NURELAY GEN PURPOSE DPDT 1A 4.5V |
6,805 |
|
Технический лист |
UD2 | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 31 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
EB2-3TNURELAY GENERAL PURPOSE DPDT 1A 3V |
3,419 |
|
Технический лист |
EB2 | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, UR | General Purpose | - | - |
|
|
UD2-3SNU-LRELAY GENERAL PURPOSE DPDT 1A 3V |
2,149 |
|
Технический лист |
UD2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
|
UD2-3NU-LRELAY GENERAL PURPOSE DPDT 1A 3V |
1,682 |
|
Технический лист |
UD2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
UB2-5NENRELAY GENERAL PURPOSE DPDT 1A 5V |
5,348 |
|
Технический лист |
UB2 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 20 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
V23079G2016B301RELAY GENERAL PURPOSE DPDT 2A 4V |
2,500 |
|
Технический лист |
V23079, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 4VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 35 mA | Non Latching | - | Gull Wing | - | - | 3 VDC | 0.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | General Purpose | - | - |
|
|
V23079G2001B301RELAY GENERAL PURPOSE DPDT 2A 5V |
1,487 |
|
Технический лист |
V23079, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | General Purpose | - | - |
|
EE2-3NUX-LRELAY GENERAL PURPOSE DPDT 2A 3V |
1,000 |
|
Технический лист |
EE2 | Tape & Reel (TR) | Not For New Designs | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
