Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGN210A12ZRELAY TELECOM DPDT 1A 12V |
2,161 |
|
Технический лист |
AGN | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
SR10-3V-450-2CRELAY GENERAL PURPOSE DPDT 1A 3V |
996 |
|
Технический лист |
SR10 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 150 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR10-9V-450-2CRELAY GENERAL PURPOSE DPDT 1A 9V |
990 |
|
Технический лист |
SR10 | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 50 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR10-5V-450-2CRELAY GENERAL PURPOSE DPDT 1A 5V |
928 |
|
Технический лист |
SR10 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 89.9 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
SR3-24V-175-1CRELAY GEN PURPOSE SPDT 1A 24V |
966 |
|
Технический лист |
SR3 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 7.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR10-24V-450-2CRELAY GEN PURPOSE DPDT 1A 24V |
880 |
|
Технический лист |
SR10 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 18.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
J850SM2CS3VDCRELAY GENERAL PURPOSE DPDT 1A 3V |
500 |
|
Технический лист |
J850SM | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | cURus | General Purpose | - | - |
|
J8502CS3VDCRELAY GENERAL PURPOSE DPDT 1A 3V |
322 |
|
Технический лист |
J850 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | cURus | General Purpose | - | - |
|
G5V-1-2 DC9RELAY GENERAL PURPOSE SPDT 1A 9V |
258 |
|
Технический лист |
G5V-1 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|

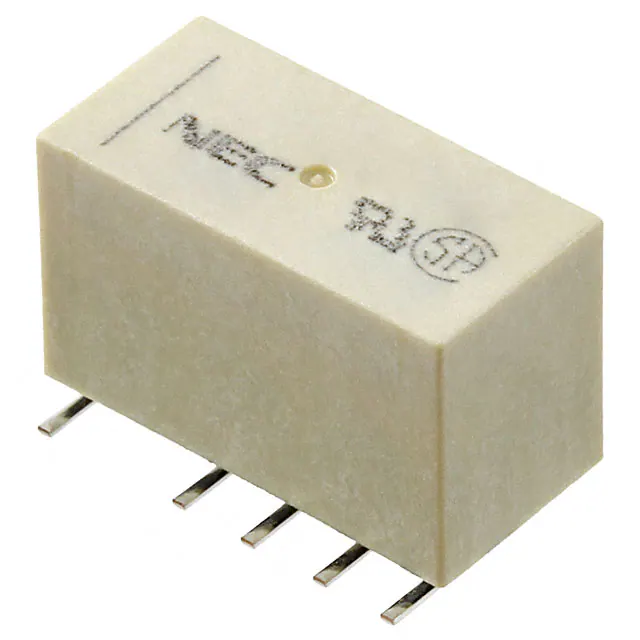

EE2-4.5TNURELAY GEN PURPOSE DPDT 2A 4.5V |
3,250 |
|
Технический лист |
EE2 | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Latching, Dual Coil | - | Gull Wing | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | CSA, TUV, UL | General Purpose | - | - |
|
G6S-2 DC9RELAY TELECOM DPDT 2A 9V |
1,472 |
|
Технический лист |
G6S | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15.6 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | CSA, UR | Telecom | - | - |
|
TX2SA-L-12VRELAY TELECOM DPDT 2A 12V |
972 |
|
Технический лист |
TX | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 8.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
SR2-9V-330-1CRELAY GENERAL PURPOSE SPDT 1A 9V |
995 |
|
Технический лист |
SR2 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 36.7 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.9 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
SR1-9V-450-1CRELAY GENERAL PURPOSE SPDT 1A 9V |
993 |
|
Технический лист |
SR1 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 50 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.9 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR2-3V-330-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
990 |
|
Технический лист |
SR2 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 107.1 mA | Non Latching | - | PC Pin | - | - | 2.1 VDC | 0.3 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR1-3V-450-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
981 |
|
Технический лист |
SR1 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 150 mA | Non Latching | - | PC Pin | - | - | 2.1 VDC | 0.3 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR2-12V-330-1CRELAY GEN PURPOSE SPDT 1A 12V |
973 |
|
Технический лист |
SR2 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 27.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR1-5V-450-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
942 |
|
Технический лист |
SR1 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 90.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR2-5V-330-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
893 |
|
Технический лист |
SR2 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 66.7 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
TX2-L2-1.5VRELAY TELECOM DPDT 2A 1.5V |
991 |
|
Технический лист |
TX | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 134 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.13 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
