Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3023RELAY TELECOM DPDT 2A 5V |
0 |
|
Технический лист |
FP2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | cURus | Telecom | - | - |
|
19022B2U0RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Технический лист |
190 | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
19022B2USRELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
Технический лист |
190 | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
19022C2U0RELAY GEN PURPOSE DPDT 2A 24V |
0 |
|
Технический лист |
190 | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 20.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
19022D2U0RELAY GEN PURPOSE DPDT 2A 48V |
0 |
|
Технический лист |
190 | Tray | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
19022E2U0RELAY GENERAL PURPOSE DPDT 2A 5V |
0 |
|
Технический лист |
190 | Tray | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.25 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|

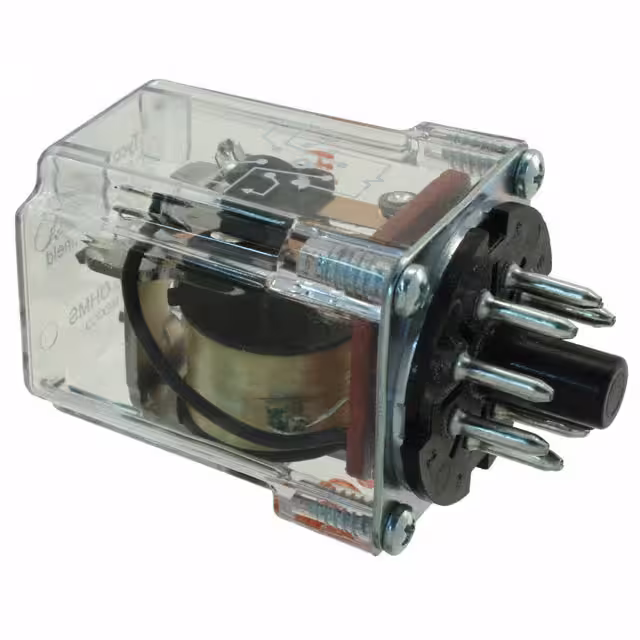

KCP-11-10000RELAY GENERAL PURPOSE DPDT 2A |
0 |
|
Технический лист |
KCP | Bulk | Obsolete | Socketable | - | DPDT (2 Form C) | 2 A | 120VAC - Max | 240VA | - | - | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 10 ms | -35°C ~ 85°C | Silver (Ag) | - | General Purpose | - | - |
|
|
KCP-11-5000RELAY GENERAL PURPOSE DPDT 2A |
0 |
|
Технический лист |
KCP | Bulk | Obsolete | Socketable | - | DPDT (2 Form C) | 2 A | 120VAC - Max | 240VA | - | - | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 10 ms | -35°C ~ 85°C | Silver (Ag) | - | General Purpose | - | - |
|
KCP-5-10000RELAY GENERAL PURPOSE SPDT 2A |
0 |
|
Технический лист |
KCP | Bulk | Obsolete | Socketable | - | SPDT (1 Form C) | 2 A | 120VAC - Max | 240VA | - | - | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 10 ms | -35°C ~ 85°C | Silver (Ag) | - | General Purpose | - | - |
|
OUAZ-SH-105D,405RELAY TELECOM SPDT 1A 5V |
0 |
|
- |
OUAZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | - | Telecom | - | - |
|
|
OUAZ-SH-124D,900RELAY TELECOM SPDT 1A 24V |
0 |
|
Технический лист |
OUAZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | - | Telecom | - | - |
|
|
OUAZ-SS-112L,900RELAY TELECOM SPDT 1A 12V |
0 |
|
Технический лист |
OUAZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 17 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | - | Telecom | - | - |
|
D3223RELAY TELECOM DPDT 2A 5V |
0 |
|
Технический лист |
FX2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | - | Telecom | - | - |
|
|
D3227RELAY TELECOM DPDT 2A 24V |
0 |
|
Технический лист |
FX2, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | - | Telecom | - | - |
|
|
D3212RELAY TELECOM DPDT 2A 24V |
0 |
|
Технический лист |
FX2, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | - | Telecom | - | - |
|
D3066RELAY TELECOM DPDT 2A 12V |
0 |
|
Технический лист |
FP2, AXICOM | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | cURus | Telecom | - | - |
|
|
D3026RELAY TELECOM DPDT 2A 12V |
0 |
|
Технический лист |
FP2, AXICOM | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 6.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | cURus | Telecom | - | - |
|
|
D3009RELAY TELECOM DPDT 2A 5V |
0 |
|
Технический лист |
FP2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | cURus | Telecom | - | - |
|
|
D3012RELAY TELECOM DPDT 2A 24V |
0 |
|
Технический лист |
FP2, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | cURus | Telecom | - | - |
|
C93401RELAY TELECOM DPDT 2A 5V |
0 |
|
Технический лист |
MT2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 30 mA | Non Latching | - | PC Pin | - | - | 3.6 VDC | 0.5 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
