Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSD-5BRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
HSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | - | - | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | - | 6 ms | 7.5 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMGACD-18PWRELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Технический лист |
MGAD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/18 |
|
|
1-1617146-9RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
MGA, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | - | - | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/18 |
|
|
JMGACDD-26PRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MGADD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 18.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/19 |
|
|
HFW1101K00RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
Технический лист |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
JMSWD-12XPRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
MSD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/16 |
|
|
JMSWD-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MSD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/16 |
|
|
JMSPD-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MSD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/16 |
|
|
6-1617543-7RELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
Технический лист |
MST, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
8-1617543-6RELAY GEN PURPOSE DPDT 1A 48V |
0 |
|
Технический лист |
MS, CII | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 4.4 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 25.8 VDC | 2.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
3-1617543-5RELAY GEN PURPOSE DPDT 1A 36V |
0 |
|
Технический лист |
MS, CII | Bulk | Active | Through Hole | 36VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 5.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 20 VDC | 1.8 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
3-1617543-6RELAY GEN PURPOSE DPDT 1A 48V |
0 |
|
Технический лист |
MS, CII | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 4.4 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 25.8 VDC | 2.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMACDD-18XMRELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Технический лист |
MAC | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 11.5 VDC | 1.4 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
7-1617540-8RELAY GEN PURPOSE SPDT 1A 26.5V |
0 |
|
Технический лист |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.4 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
2823780RELAY GEN PURPOSE SPST 500MA 48V |
0 |
|
Технический лист |
- | Bulk | Obsolete | Socketable | 48VAC/DC | SPST-NC (1 Form B) | 500 mA | 30VAC, 36VDC - Max | - | 8.5 mA | Non Latching | Varistor | Plug In | - | - | - | - | 10 ms | 10 ms | -20°C ~ 50°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
HSD-12BRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
HSD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | - | - | 14.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9 VDC | - | 6 ms | 7.5 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
6-1617350-7RELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
Технический лист |
1MA, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 8 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
|
JMAPDD-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MADD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 18.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/20 |
|
|
1-1617351-7RELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
Технический лист |
MAD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/15 |
|

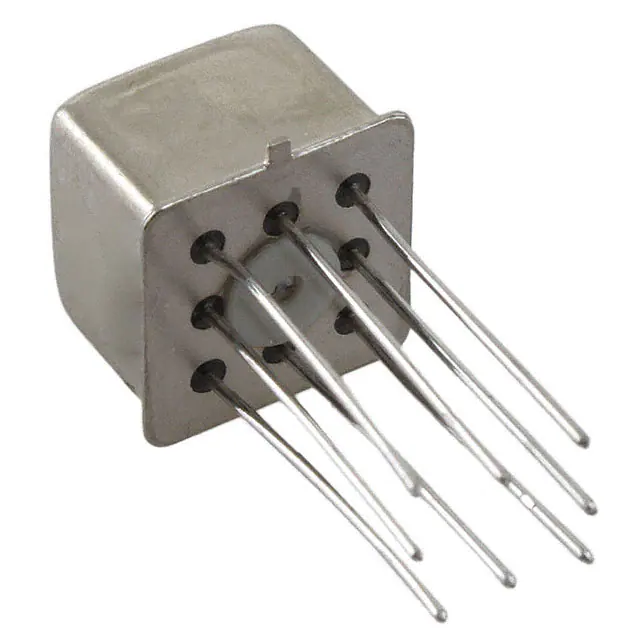

JMGACDD-26PWRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.4 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/19 |
