Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRMAC-12XRELAY GEN PURPOSE DPDT 1A 12V |
88 |
|
Технический лист |
PRMA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 30.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | - | - | General Purpose | - | - |
|

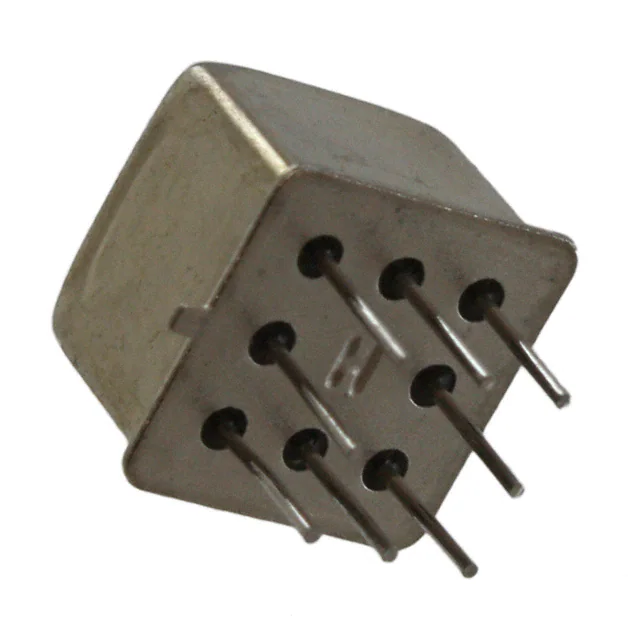

JMGAPD-26MRELAY GEN PURPOSE DPDT 1A 26.5V |
112 |
|
Технический лист |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | Military | MIL-R-39016/18 |
|
HFW1201D00RELAY GEN PURPOSE DPDT 2A 26.5V |
30 |
|
Технический лист |
HFW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 25.8 mA | Non Latching | - | PC Pin | - | - | 14 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
G6B-48BND DC24RELAY GEN PURPOSE SPST 2A 24V |
30 |
|
Технический лист |
G6B-4 | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 4 | 2 A | 380VAC, 125VDC - Max | 760VA, 250W | 10.7 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CE, CSA, UR, VDE | General Purpose | - | - |
|
J104D2C12VDC.45SRELAY GEN PURPOSE DPDT 2A 12V |
1,846 |
|
Технический лист |
J104D | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | General Purpose | - | - |
|

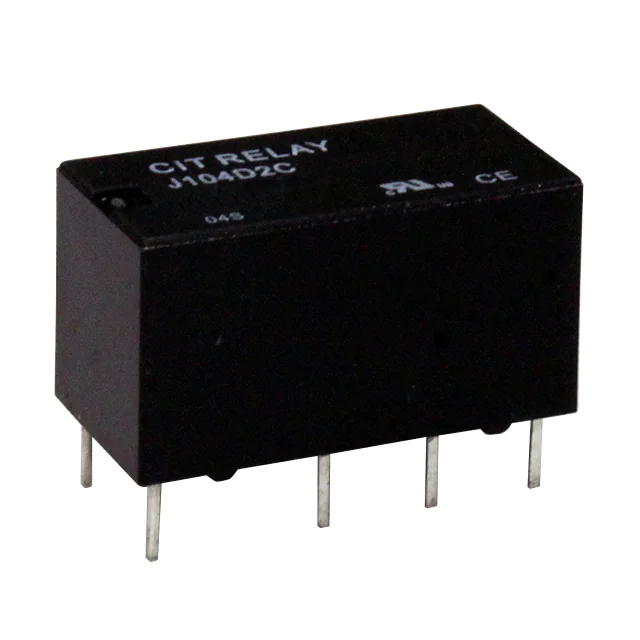

J104D2C6VDC.15SRELAY GENERAL PURPOSE DPDT 2A 6V |
2,469 |
|
Технический лист |
J104D | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | General Purpose | - | - |
|
J1031C9VDC.15SRELAY GENERAL PURPOSE SPDT 2A 9V |
675 |
|
Технический лист |
J103 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
SR5-9V-200-1CRELAY GENERAL PURPOSE SPDT 1A 9V |
1,311 |
|
Технический лист |
SR5 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 22.2 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
AGN200A06RELAY TELECOM DPDT 1A 6V |
821 |
|
Технический лист |
AGN | Tube | Active | Surface Mount | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 23.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
SR7-12V-200-1CRELAY GEN PURPOSE SPDT 1A 12V |
1,311 |
|
Технический лист |
SR7 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
SR7-5V-200-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
873 |
|
Технический лист |
SR7 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
|
AZ822-2C-9DERELAY GENERAL PURPOSE DPDT 2A 9V |
272 |
|
Технический лист |
AZ822 | Tray | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.45 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Palladium (AgPd), Gold (Au) | CUR, UL | General Purpose | - | - |
|
|
SR7-24V-200-1CRELAY GEN PURPOSE SPDT 1A 24V |
601 |
|
Технический лист |
SR7 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
SR11-9V-200-2CRELAY GENERAL PURPOSE DPDT 1A 9V |
961 |
|
Технический лист |
SR11 | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 22.2 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
SR3-3V-150-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
508 |
|
Технический лист |
SR3 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 50 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
|
G5V-13 DC3RELAY GENERAL PURPOSE SPDT 1A 3V |
369 |
|
Технический лист |
G5V-1 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
AGN210A12RELAY TELECOM DPDT 1A 12V |
1,509 |
|
Технический лист |
AGN | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
AGN210S03RELAY TELECOM DPDT 1A 3V |
491 |
|
Технический лист |
AGN | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
J8502CS24VDCRELAY GEN PURPOSE DPDT 1A 24V |
2,664 |
|
Технический лист |
J850 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | cURus | General Purpose | - | - |
|
SR10-12V-450-2CRELAY GEN PURPOSE DPDT 1A 12V |
667 |
|
Технический лист |
SR10 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 37.5 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | cURus | General Purpose | - | - |
