Сигнальные реле, до 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6A-234P-ST31 DC12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
G6A | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | - | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | - | General Purpose | - | - |
|
G6HU-2-100-DC3RELAY TELECOM DPDT 1A 3V |
0 |
|
Технический лист |
G6H | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | PC Pin | - | - | 2.25 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, UR | Telecom | - | - |
|
G6SU-2F-TR DC4.5RELAY TELECOM DPDT 2A 4.5V |
0 |
|
Технический лист |
G6S | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 22.2 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | CSA, UR | Telecom | - | - |
|
TX2SA-L2-24V-1-ZRELAY TELECOM DPDT 1A 24V |
0 |
|
Технический лист |
TX | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220VA | 8.3 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
TX2SA-1.5V-THRELAY GEN PURPOSE DPDT 2A 1.5V |
0 |
|
Технический лист |
TX-TH | Bulk | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 93.8 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
D3067RELAY TELECOM DPDT 2A 24V |
0 |
|
Технический лист |
FP2, AXICOM | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 12.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | cURus | Telecom | - | - |
|
|
TXS2SA-L-24V-WRELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
Технический лист |
TX-S | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 2.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
|
TXS2SA-L-24V-YRELAY GEN PURPOSE DPDT 1A 24V |
0 |
|
Технический лист |
TX-S | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 2.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|

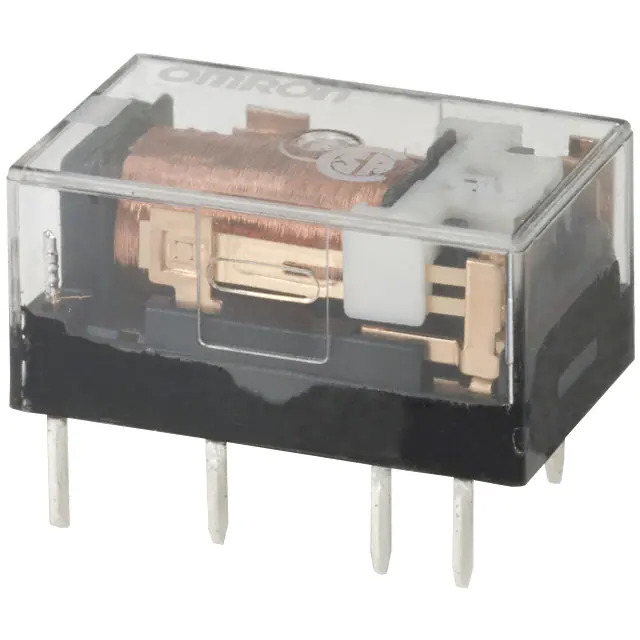

G5A-237P-DC5RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
Технический лист |
G5A | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | UL | General Purpose | - | - |
|

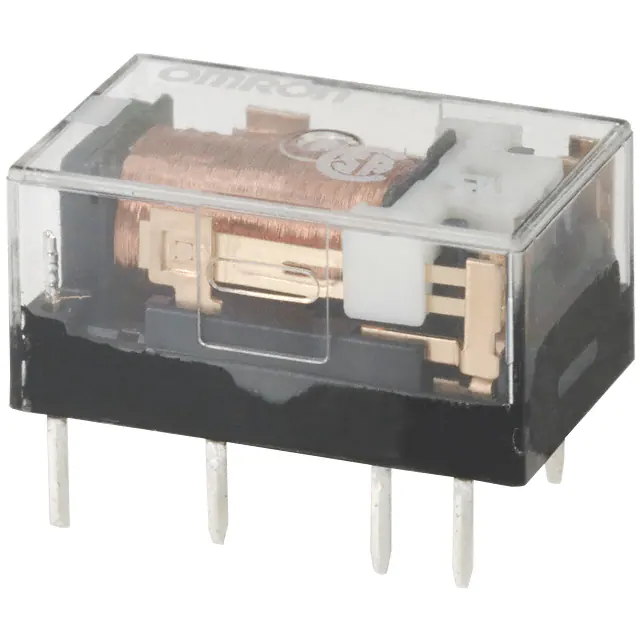

G5A-237P-DC12RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
Технический лист |
G5A | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | UL | General Purpose | - | - |
|
TX2-LT-4.5VRELAY TELECOM DPDT 2A 4.5V |
0 |
|
Технический лист |
TX | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 44.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
TX2-LT-1.5V-1RELAY TELECOM DPDT 1A 1.5V |
0 |
|
Технический лист |
TX-S | Bulk | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220W | 133.9 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.13 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
TX2-LT-4.5V-1RELAY TELECOM DPDT 1A 4.5V |
0 |
|
Технический лист |
TX-S | Bulk | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220W | 44.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
TX2-LT-1.5VRELAY TELECOM DPDT 2A 1.5V |
0 |
|
Технический лист |
TX-S | Bulk | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 133.9 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.13 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
AGN200A06XRELAY TELECOM DPDT 1A 6V |
0 |
|
Технический лист |
AGN | Tape & Reel (TR) | Active | Surface Mount | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 23.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
AGN200A09XRELAY TELECOM DPDT 1A 9V |
0 |
|
Технический лист |
AGN | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 15.5 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
AGN200A12XRELAY TELECOM DPDT 1A 12V |
0 |
|
Технический лист |
AGN | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
AGN200A1HXRELAY TELECOM DPDT 1A 1.5V |
0 |
|
Технический лист |
AGN | Tape & Reel (TR) | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 93.8 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
AGN200A1HZRELAY TELECOM DPDT 1A 1.5V |
0 |
|
Технический лист |
AGN | Tape & Reel (TR) | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 93.8 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
|
|
AGN200A24XRELAY TELECOM DPDT 1A 24V |
0 |
|
Технический лист |
AGN | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 9.6 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | BSI, cURus | Telecom | - | - |
