Селекторные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Схема | Количество положений | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип крепления | Тип вывода | Размеры выреза панели | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
52-473.036SWITCH SELECT 2P DPST 100MA 42V |
18 |
|
Технический лист |
51 | Bulk | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 100mA (AC/DC) | 42 V | 42 V | Illuminated | - | - | Panel Mount | PC Pin, Solder Lug | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
RV26D2DC0CB-K4CSWITCH SELECT 3POS DPDT 20A 12V |
9 |
|
Технический лист |
V-Series Contura | Bulk | Active | Standard | DPDT | 3 | On-Off-On | 20A (DC) | - | 12 V | Illuminated | LED, Red | 12 VDC | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | Rectangular - 36.83mm x 21.08mm | IP67 - Dust Tight, Waterproof | Bezel - Rectangular | - |
|
45-1828.1C90.001.101SWITCH SELECT 2POS SPST 10A 500V |
8 |
|
Технический лист |
45 | Bulk | Active | Standard | SPST-NO | 2 | Off-On | 10A (AC/DC) | 500 V | 500 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 70°C |
|
52-271.022SWITCH SELECT 2POS DPST 5A 250V |
8 |
|
Технический лист |
51 | Bulk | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 5A (AC) | 250 V | - | Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
XB6CD225BSWITCH SELECT 2POS DPST 3A 120V |
4 |
|
Технический лист |
Harmony XB6 | Box | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
XB5FD21SWITCH SELECT 2POS SPST 6A 120V |
3 |
|
Технический лист |
XB5F | Box | Active | Standard | SPST-NO | 2 | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 30.50mm Dia | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 70°C |
|
A165S-T2A-1SWITCH SELECT 2POS SPDT 5A 125V |
4 |
|
Технический лист |
A165S | Bulk | Active | Standard | SPDT | 2 | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Round | -10°C ~ 55°C |
|
A165S-J2M-1SWITCH SELECT 2POS SPDT 5A 125V |
2 |
|
Технический лист |
A165S | Bulk | Active | Standard | SPDT | 2 | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Rectangular | -10°C ~ 55°C |
|
14-507.0250SWITCH SELECT 2POS 4PST 5A 250V |
15 |
|
Технический лист |
14 | Bulk | Active | Standard | 4PST-2NO/2NC | 2 | On-Off, Off-On | 5A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 22.30mm Dia | IP67 - Dust Tight, Waterproof | Bezel - Round, Black Knob | -25°C ~ 55°C |
|
K14-506.22200SWITCH SELECT 2POS DPST 5A 250V |
13 |
|
Технический лист |
14 | Box | Active | Standard | DPST-NO/NC | 2 | Off-On | 5A (AC) | 250 V | - | Non-Illuminated | - | - | Panel Mount | Solder Lug | Circular - 30.50mm Dia | IP67 - Dust Tight, Waterproof | - | -25°C ~ 55°C |
|
|
XB6CD235BSWITCH SELECT 2POS DPST 3A 120V |
4 |
|
Технический лист |
Harmony XB6 | Box | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 70°C |
|
A165S-J3A-2SWITCH SELECT 3POS DPDT 5A 125V |
3 |
|
Технический лист |
A165S | Bulk | Active | Standard | DPDT | 3 | Mom-On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Rectangular | -10°C ~ 55°C |
|
A165W-T2MR-24D-1SWITCH SELECT 2POS SPDT 5A 125V |
9 |
|
Технический лист |
A165W | Bulk | Active | Standard | SPDT | 2 | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Illuminated | LED, Red | 24 VDC | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Round | -10°C ~ 55°C |
|

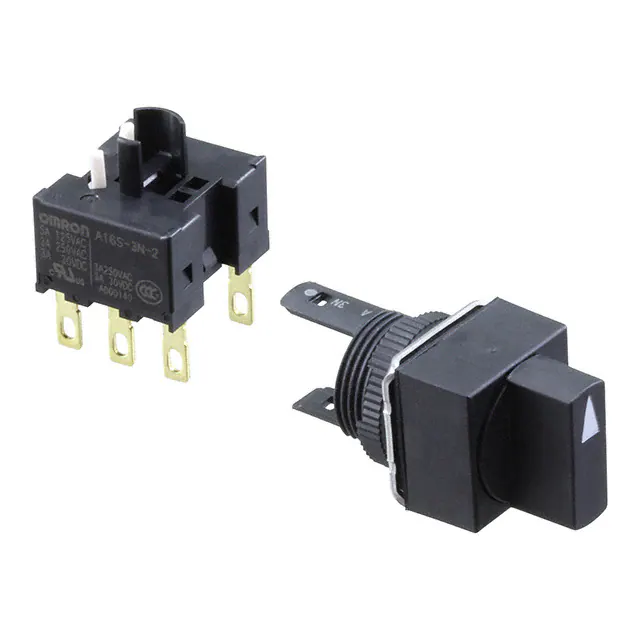

A165S-A3A-2SWITCH SELECT 3POS DPDT 5A 125V |
2 |
|
Технический лист |
A165S | Bulk | Active | Standard | DPDT | 3 | Mom-On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Non-Illuminated | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Square | -10°C ~ 55°C |
|

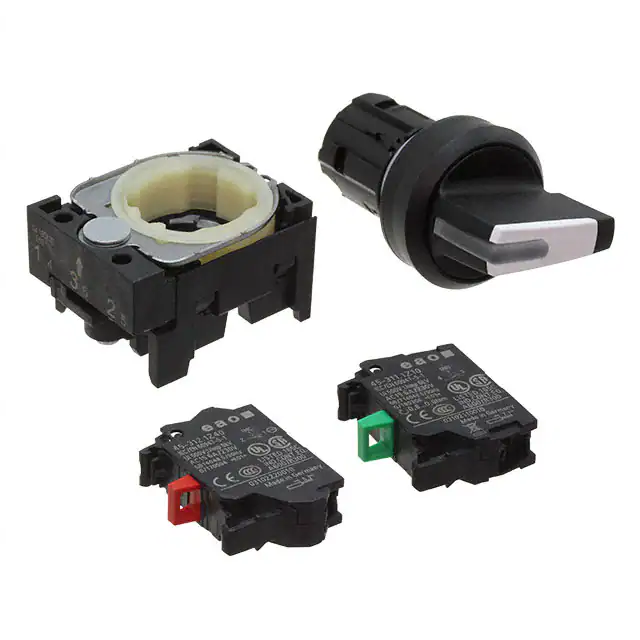

45-1828.1C90.001.105SWITCH SELECT 2POS DPST 10A 500V |
10 |
|
Технический лист |
45 | Bulk | Active | Standard | DPST-NO/NC | 2 | On-Off, Off-On | 10A (AC/DC) | 500 V | 500 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 70°C |
|
45-180S.1C90.003.108SWITCH SELECT 3POS DPST 10A 500V |
9 |
|
Технический лист |
45 | Bulk | Active | Standard | DPST-NO | 3 | Mom-Off-Mom | 10A (AC/DC) | 500 V | 500 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 70°C |
|

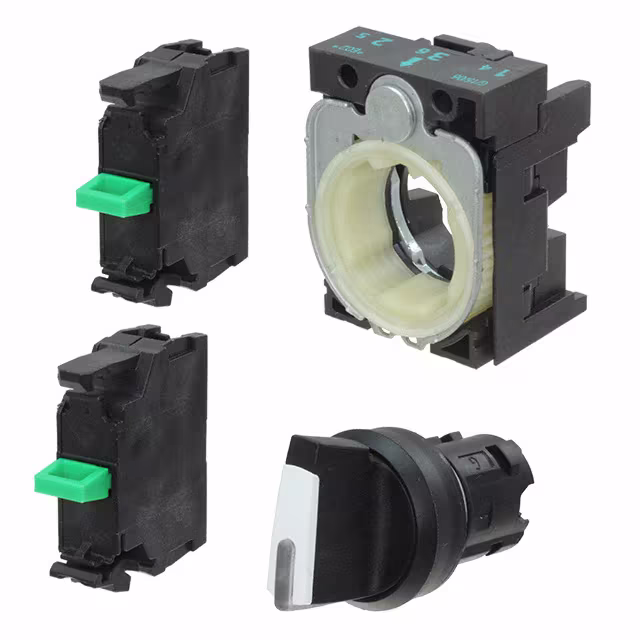

45-1819.1C90.003.108SWITCH SELECT 3POS DPST 10A 500V |
3 |
|
Технический лист |
45 | Bulk | Active | Standard | DPST-NO | 3 | On-Off-On | 10A (AC/DC) | 500 V | 500 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 70°C |
|
3SU11502BL601NA0SWITCH SELECT 3POS DPST 10A 500V |
3 |
|
Технический лист |
3SU1 | Bulk | Active | Standard | DPST-NO | 3 | Off-On | 10A (AC/DC) | 500 V | 500 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 70°C |
|
A165W-T2MY-24D-1SWITCH SELECT 2POS SPDT 5A 125V |
3 |
|
Технический лист |
A165W | Bulk | Active | Standard | SPDT | 2 | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Illuminated | LED, Yellow | 24 VDC | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 - Dust Tight, Oil and Water Resistant | Bezel - Round | -10°C ~ 55°C |
|
35-210-041-SSWITCH SELECT 2POS SPST 250A 20V |
20 |
|
Технический лист |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 250A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
