Поворотные переключатели
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A11003RNZQESWITCH ROTARY 10POS 2.5A 125V |
45 |
|
Технический лист |
A | Tray | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|

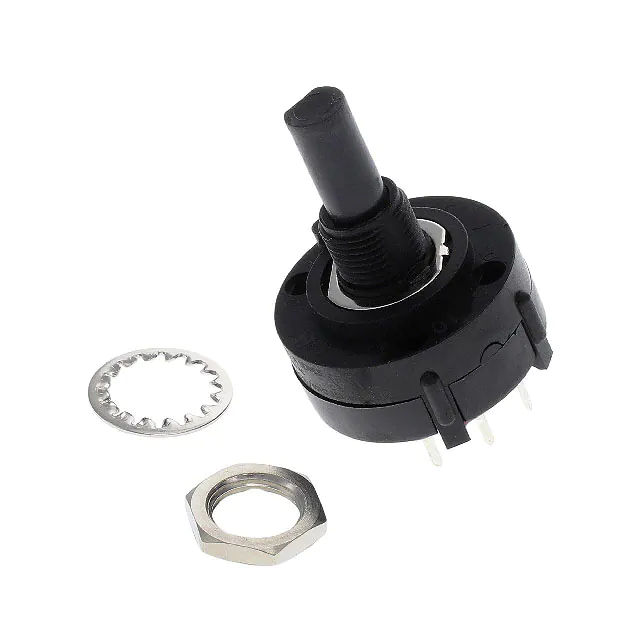

A10805RNCQKSWITCH ROTARY 8POS 2.5A 125V |
63 |
|
Технический лист |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
A20605RSZQSWITCH ROTARY 6POS 2.5A 125V |
61 |
|
Технический лист |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A10305RNZQKSWITCH ROTARY 3POS 2.5A 125V |
47 |
|
Технический лист |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|

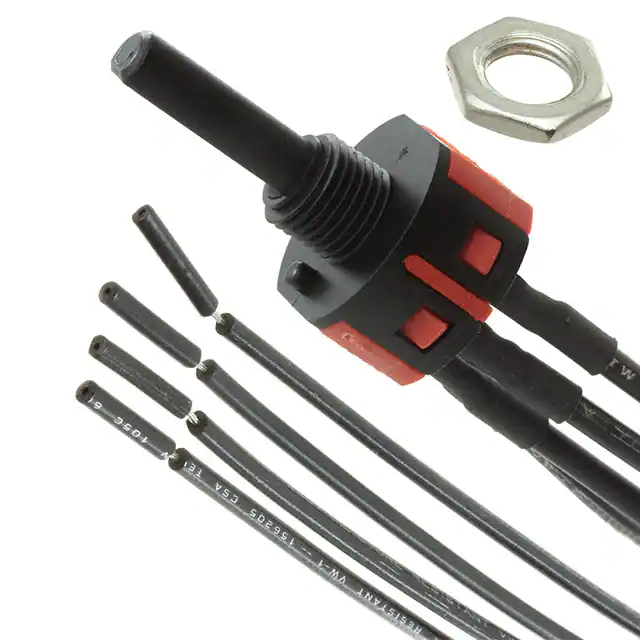

F10308RSWCQSWITCH ROTARY 3POS 4A 125V |
94 |
|
Технический лист |
F | Tray | Active | 3 | Fixed | 1 | 1 | SP3T, Adjacent Contact | Non-Shorting (BBM) | 4A (AC/DC) | 125 V | 28 V | Flatted (4.75mm Dia) | 14.86mm | 45° | Copper | Silver | Panel Mount | Wire Leads | No Common Pin | 12.45mm |
|
A20615RNZQESWITCH ROTARY 6POS 2.5A 125V |
58 |
|
Технический лист |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
|
A30315RNCQESWITCH ROTARY 3POS 2.5A 125V |
22 |
|
Технический лист |
A | Tray | Active | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
A20503RSCQESWITCH ROTARY 5POS 2.5A 125V |
32 |
|
Технический лист |
A | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
A11203RNCQKSWITCH ROTARY 12POS 2.5A 125V |
45 |
|
Технический лист |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|

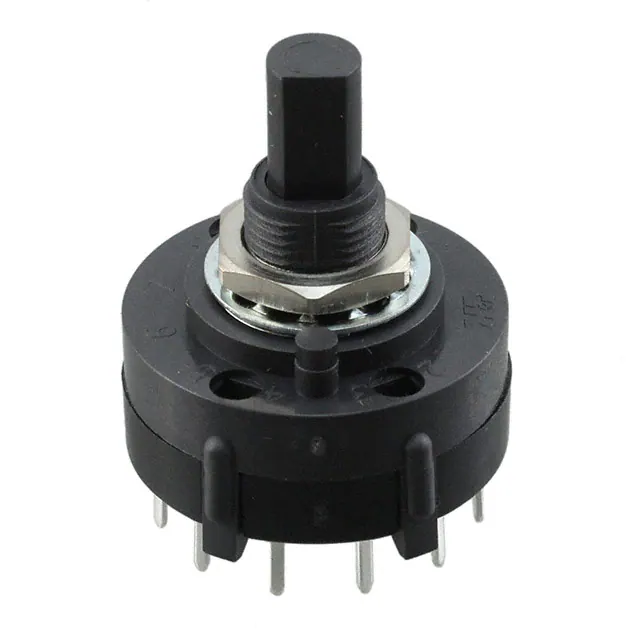

A40303RNCQSWITCH ROTARY 3POS 2.5A 125V |
58 |
|
Технический лист |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A11403RNZBSWITCH ROTARY 2POS 0.4VA 20V |
75 |
|
Технический лист |
A | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
A20505RNCQKSWITCH ROTARY 5POS 2.5A 125V |
46 |
|
Технический лист |
A | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
A20503RNZQKSWITCH ROTARY 5POS 2.5A 125V |
44 |
|
Технический лист |
A | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|

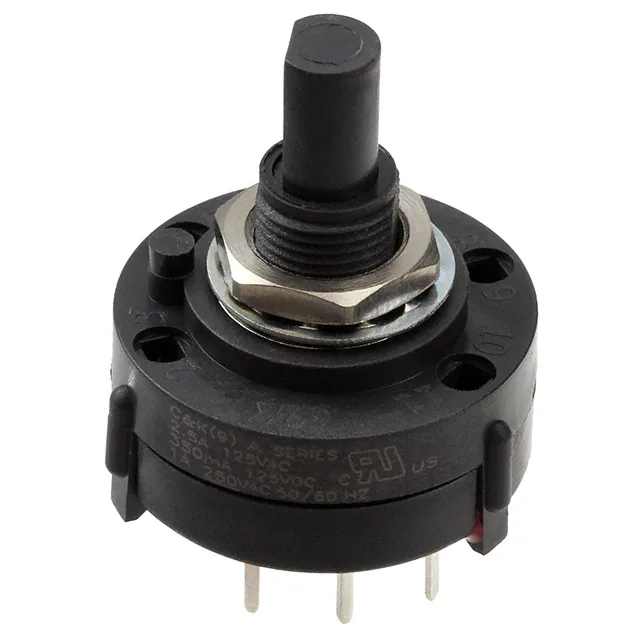

A11003RNCQKSWITCH ROTARY 10POS 2.5A 125V |
35 |
|
Технический лист |
A | Tray | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
A40303RNZQSWITCH ROTARY 3POS 2.5A 125V |
29 |
|
Технический лист |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
NR01103ANG13SWITCH ROTARY 3POS 0.4VA 28V |
43 |
|
Технический лист |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | - | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01104ANG13SWITCH ROTARY 4POS 0.4VA 28V |
9 |
|
Технический лист |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | - | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
|
A40305RNZQSWITCH ROTARY 3POS 2.5A 125V |
24 |
|
Технический лист |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A12405RNZBSWITCH ROTARY 4POS 0.4VA 20V |
71 |
|
Технический лист |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A12403RNZBSWITCH ROTARY 4POS 0.4VA 20V |
47 |
|
Технический лист |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
