Поворотные потенциометры, реостаты
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
308NPC1KPOT 1K OHM 1/2W PLASTIC LINEAR |
0 |
|
Технический лист |
308NPC | Bulk | Obsolete | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
53C22.5MEGPOT 2.5M OHM 2W PLASTIC LINEAR |
0 |
|
Технический лист |
53C | Bulk | Obsolete | 2.5M | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Slotted | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
CLU1041E2 WATT CARBON POT TYPE CLU 10% |
69 |
|
Технический лист |
CLU | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
485025M9267POT 5K OHM 2W PLASTIC LINEAR |
0 |
|
Технический лист |
485 | Bulk | Obsolete | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Round | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
CU5052E2 WATT CARBON POT TYPE CU 10% |
49 |
|
Технический лист |
CU | Bulk | Active | 5M | ±20% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Round | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
73JA20KPOT 20K OHM 2W WIREWOUND LINEAR |
19 |
|
- |
73JA | Bulk | Obsolete | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16WP472MAB15POT 4.7K OHM 1W CERMET LINEAR |
40 |
|
Технический лист |
P16 | Box | Active | 4.7k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P16BP473MAB15POT 47K OHM 1W CERMET LINEAR |
40 |
|
Технический лист |
P16 | Box | Active | 47k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P16YP104MAB15POT 100K OHM 1W CERMET LINEAR |
38 |
|
Технический лист |
P16 | Box | Active | 100k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16YP101MAB15POT 100 OHM 1W CERMET LINEAR |
38 |
|
Технический лист |
P16 | Box | Active | 100 | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P16RP104MAB15POT 100K OHM 1W CERMET LINEAR |
36 |
|
Технический лист |
P16 | Box | Active | 100k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16RP102MAB15POT 1K OHM 1W CERMET LINEAR |
36 |
|
Технический лист |
P16 | Box | Active | 1k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16RP473MAB15POT 47K OHM 1W CERMET LINEAR |
33 |
|
Технический лист |
P16 | Box | Active | 47k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
73JB200POT 200 OHM 2W WIREWOUND LINEAR |
0 |
|
Технический лист |
73JB | Bulk | Obsolete | 200 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P16WP222MAB15POT 2.2K OHM 1W CERMET LINEAR |
38 |
|
Технический лист |
P16 | Box | Active | 2.2k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16BP222MAB15POT 2.2K OHM 1W CERMET LINEAR |
19 |
|
Технический лист |
P16 | Box | Active | 2.2k | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
485025M9052POT 10K OHM 2W PLASTIC LINEAR |
0 |
|
Технический лист |
485 | Bulk | Obsolete | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Conductive Plastic | Solder Lug | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

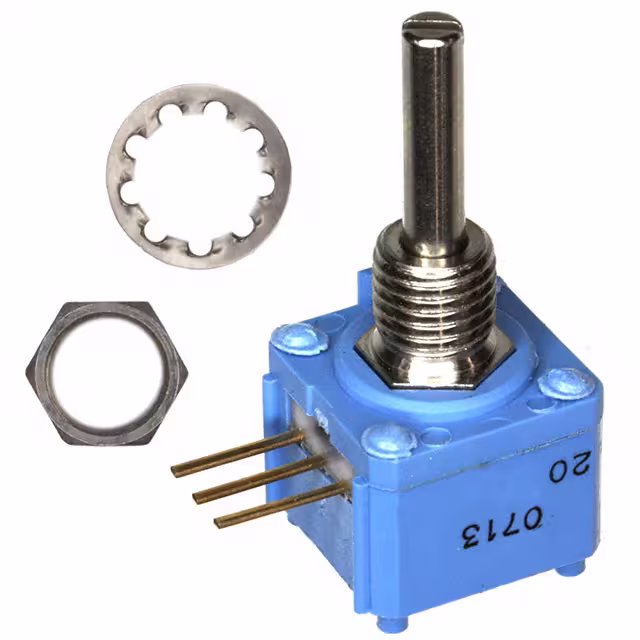

309NPC50KPOT 50K OHM 1W CERMET LINEAR |
0 |
|
Технический лист |
309NPC | Bulk | Obsolete | 50k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
P16SNP223MAB15POT 22K OHM 1W CERMET LINEAR |
11 |
|
Технический лист |
P16S | Bulk | Active | 22k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
ZS-1728-EPOTENTIOMETER LINEAR |
8 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | Linear | - | - | - | - | - | - | - | - | - | - | - |
